Overview

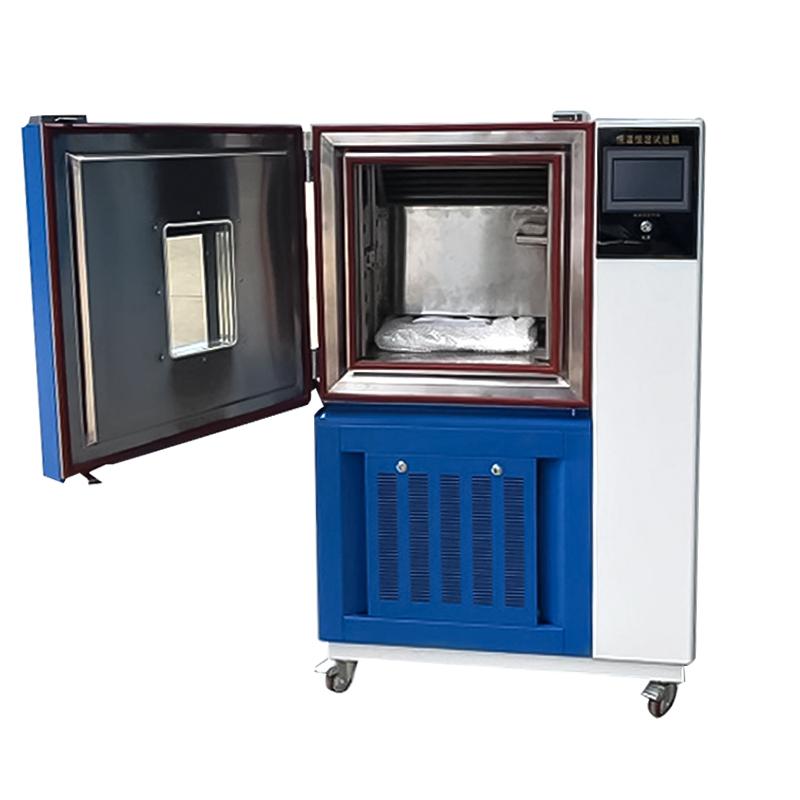

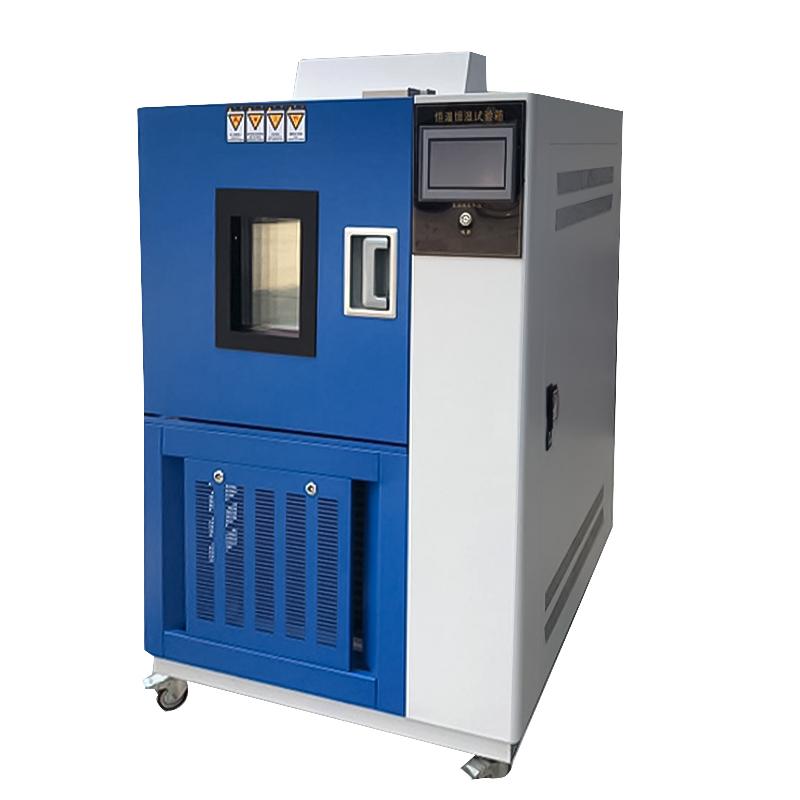

HS-800A Constant Temperature and Humidity Chamber is a testing equipment of ZKHS brand, which is suitable for aviation, automobile, home appliances, scientific research and other fields. It is used to test and determine the parameters and performance of electrical, electronic and Miscellaneous products and materials under high temperature, low temperature, heat and humidity or constant test environment changes. The box body is processed by numerical control machine tool, which is beautiful and easy to operate.
Features
1. The inner tank of the box is made of imported stainless steel (SUS304) mirror plate argon arc welding, and the shell is sprayed with A3 steel plate.
2. Equipped with a 7.0-inch large screen, it is easy to operate and program edit.
3. Large observation window with lighting, double-decked Glass, clear observation of the situation inside the box.
4. Equipped with an independent temperature limit alarm system, the temperature limit is automatically interrupted to ensure the safety of the experiment.
5. Optional recorder and printer, print setting parameters and temperature and humidity changes Linear dispersion, support 4~ 20mA standard signal.
6. The refrigerator adopts the original French "Taikang" fully enclosed Compressor unit.
7. The multi-wing blower has strong air circulation to avoid dead ends and uniform temperature distribution.
8. The air path circulates the air outlet and return air design, the wind pressure and wind speed meet the test standards, and the temperature stabilizes quickly when the door is opened.
9. The heating and cooling systems are independent, effectively reducing testing costs, increasing lifespan, and reducing failure rates.
Principle
The Constant Temperature and Humidity Chamber uses the original French "Taikang" unit for cooling through the fully enclosed Air-Cooled compression refrigeration method, combined with the strong air supply circulation of the multi-wing blower to ensure uniform temperature distribution in the test area. The heating system adopts a fully independent nickel-chromium alloy electric heating heater, the humidification system uses a built-in isolated all-stainless steel shallow surface evaporative humidifier, and the dehumidification system adopts the evaporator coil dewpoint temperature laminar contact dehumidification method. The water supply system automatically controls the humidification water supply to achieve accurate temperature and humidity control.
Applications
Aviation, automotive, home appliances, scientific research
Standards
GB/T5170.5-2008、GB/T10586-2006、GB/T2423.1-2008、GB/T2423.3-2006
Steps
Connect the power supply and ensure that the voltage is AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire.
2. Turn on the device and use the 7.0-inch large screen controller to set the temperature and humidity parameters and test time.
3. Place the test sample on the test rack and connect the external device through the test lead hole (optional).
4. Start the equipment, monitor temperature and humidity changes, and ensure that it operates within the set range.
5. After the test is completed, turn off the equipment, remove the sample, and record the data (optional recorder printing).
Notice
• Operating Environment Temperature should be between 5 ° C and 30 ° C with humidity not exceeding 85% R.H.
• Power frequency compliance to avoid overload or short circuit.
• Regularly check safety protection devices, such as leakage, over-temperature, water shortage, motor overheating, etc., to ensure normal operation.
• Pay attention to temperature stabilization when opening the door to avoid long-term exposure affecting the test results.
• The humidified water supply system needs to maintain an automatic control state to prevent water shortage failures.
• When the equipment is running, do not block the ventilating port to ensure the normal operation of the circulatory system.
