Overview

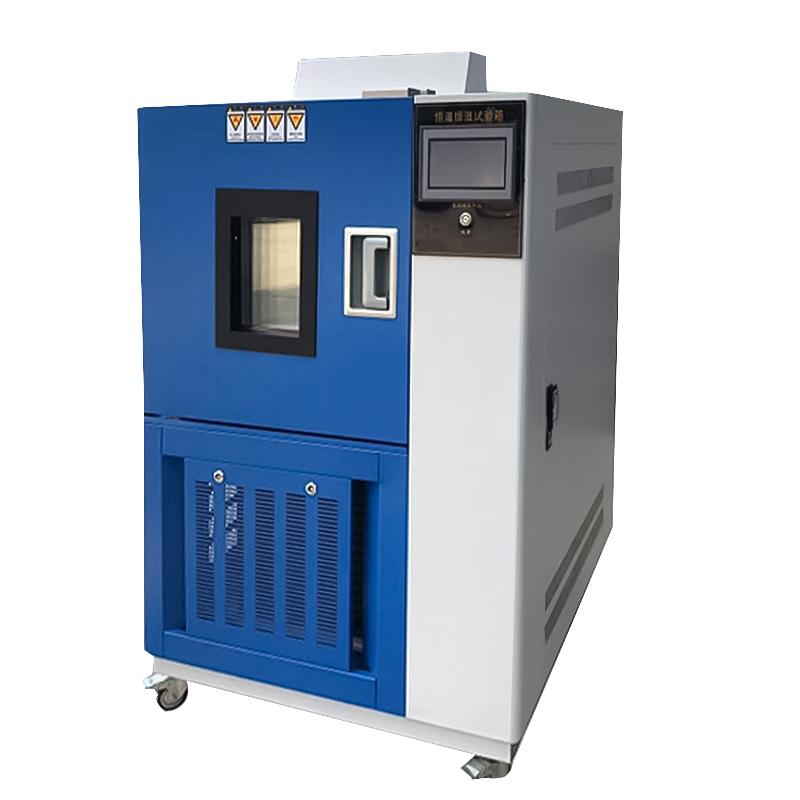

HS-010A Constant Temperature and Humidity Chamber is a testing equipment of ZKHS brand, which is suitable for aviation, automobile, home appliances, scientific research and other fields. It is used to test the parameters and performance changes of electrical, electronic and Miscellaneous products and materials under high temperature, low temperature, heat and humidity or constant test environment. The box body is processed by numerical control machine tool, which is beautiful and easy to operate.
Features
1. The box body is processed and formed by numerical control machine tool, which is beautiful and generous in shape, and adopts no-reaction handle, which is easy to operate.

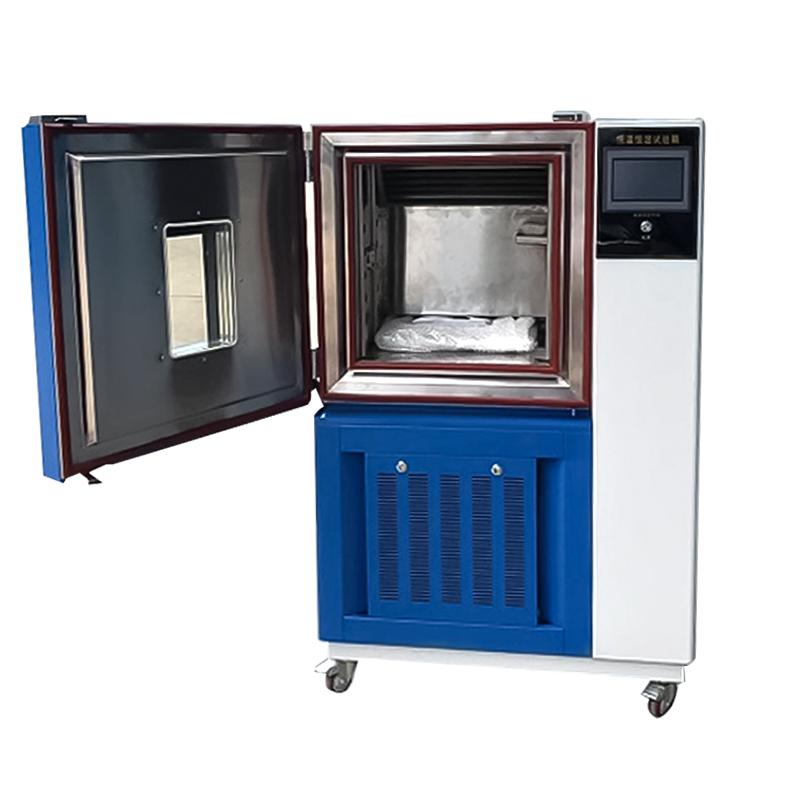

2. The inner tank of the box is made of imported stainless steel (SUS304) mirror plate argon arc welding, and the shell of the box is sprayed with A3 steel plate.
3. Using a 7.0-inch large screen, the screen is easy to operate and the program is easy to edit.
4. The large observation window is equipped with lighting to keep the box bright, and double-decked Glass is used to clearly observe the situation in the box at any time.
5. It is equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents.
6. Optional recorder, printer can print record setting parameters and scan out temperature and humidity changes Linear dispersion, 4~ 20mA standard signal.
7. The left side of the box is equipped with a 50mm diameter test hole.
8. The refrigerator adopts the original French "Taikang" fully enclosed Compressor unit.
9. The use of a multi-wing blower for strong air circulation avoids any dead ends and allows for uniform temperature distribution in the test area.
10. The air path is designed to circulate the air outlet and return air, and the wind pressure and wind speed meet the test standards, and the temperature can be stabilized quickly at the moment of opening the door.
11. Heating, cooling, and complete system independence can be effective, reducing testing costs, increasing lifespan, and reducing failure rates.
Principle
The Constant Temperature and Humidity Chamber is cooled by fully enclosed Air-Cooled compression refrigeration. It uses a nickel-chromium alloy electric heating heater to heat up. It has a built-in isolated all-stainless steel shallow surface evaporative humidifier for humidification, and controls humidity through evaporator coil dewpoint temperature laminar contact dehumidification. The multi-wing blower has a strong air supply cycle to ensure uniform temperature distribution, and an independent system design improves efficiency.
Applications
Aviation, automotive, home appliances, scientific research
Standards
GB/T5170.5-2008、GB/T10586-2006、GB/T2423.1-2008、GB/T2423.3-2006
Steps
Connect the power supply to ensure that the voltage meets the requirements of AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire system.
2. Turn on the power switch of the device and start the 7.0-inch large-screen controller.
3. Set the required temperature, humidity parameters and test time on the controller (adjustable from 0 to 9999 minutes or hours).
4. Place the test sample on the test rack and connect the external device (if necessary) through the test lead hole.
5. Start the test program to monitor the temperature and humidity changes Linear dispersion (optional recorder printing).
6. After the test is completed, power off the device and remove the sample.
Notice
• Operating Environment Temperature should be between 5 ℃~ 30 ℃, humidity ≤ 85% R.H.
• Power frequency stability to avoid overvoltage or undervoltage operation.
• Regularly check the safety protection device, including leakage, short circuit, overtemperature, water shortage, motor overheating, Compressor overvoltage, overload, overcurrent protection.
• The humidified water supply system adopts automatic control to ensure that the water source is normal.
• Pay attention to the temperature stabilization time after opening the door to avoid affecting the test accuracy.
• Keep the box clean to avoid dust affecting the circulation system.
