Overview

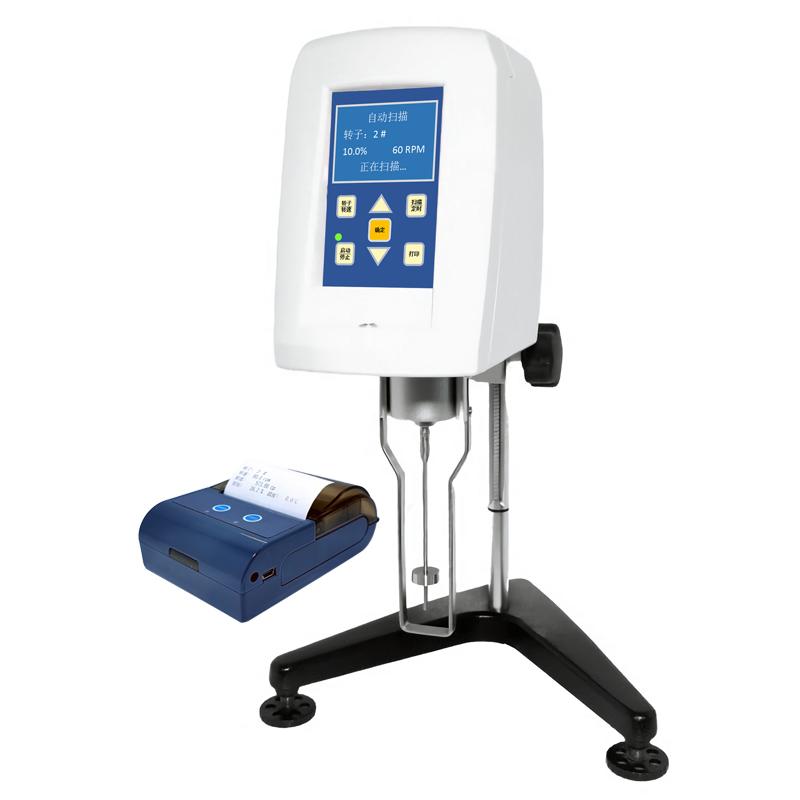

FANGRUI NDJ-9S digital Viscometer adopts microcomputer drive technology, imported stepper motor and LCD backlight display, with program setting and automatic control functions. The instrument has stable speed, good accuracy and easy operation. It supports automatic scanning and error alarm. The screen directly displays information such as viscosity, speed, rotor number, percentage meter torque, maximum viscosity of range and liquid temperature. Full scale and Linearity correction of each gear is carried out with standard silicone oil through PC interface to ensure high sensitivity, High Accuracy and high repeability, and accurate and reliable measurement data.
Features
1. Designed and manufactured according to JJG-2005 standards
2. Large LCD screen LCD display, with blue backlight function, display rotor number, speed, range, viscosity, temperature, angle%
3. ▲/▲ function keys are used to replace the speed and rotor number selection
4. The "Rotor Selection" function key prompts the rotor number, and the cursor flashes.
5. The "Speed Settings" function key prompts the speed, and the cursor flashes.
6. "Start, stop" function key to execute or terminate the current measurement program
7. The "Auto Scan" function key helps users select the appropriate Rotor speed measurement for unknown samples
8. "OK" function key to confirm the current selection information
Principle
The digital Viscometer uses microcomputer driven technology and imported stepper motors for smooth and accurate measurement of rotational speed through programming and automatic control. The instrument uses the resistance of the rotor as it swirls/spins in the liquid to measure viscosity, the relevant parameters are displayed directly on the screen, and the standard silicone oil correction is carried out through the PC interface to ensure High Accuracy and repeability.
Applications
Oil, paints, coatings, Stock, Spinning & weaving, Food, Adhesive, Cosmetics and other fluids, semi-fluid production industries and R & D institutions
Steps
1. Use the "Rotor Selection" function key to select the rotor number
2. Use the "Speed Settings" function key to set the speed
3. Press the "Start, Stop" function key to execute or terminate the measurement
4. Use the "Auto Scan" function key to automatically select the appropriate Rotor speed for unknown samples
5. Press the "OK" function key to confirm the selection information.
Notice
• Power frequency within 110V-230V range
• Standard silicone oil calibration through PC interface before use
• Pay attention to the selection of rotor specifications and speed combinations
• Avoid using the instrument beyond the range
• Regularly check instrument reproducibility and measurement accuracy
