Overview

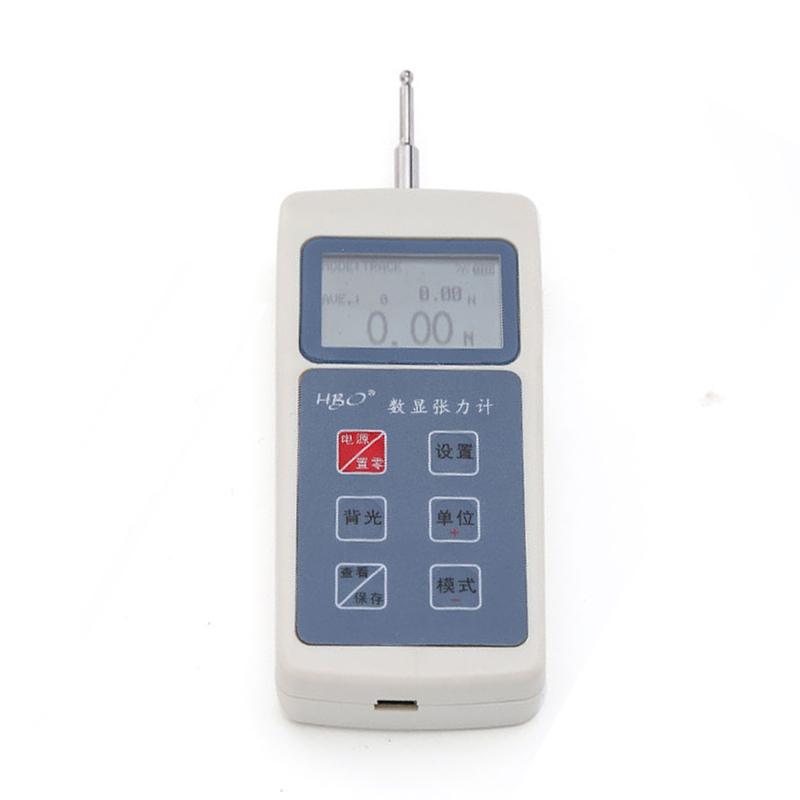

HZS series digital display tension meter is a new generation of universal and convenient low-power tension test instrument, which has the characteristics of small size, light weight, easy to carry, multi-function and High Accuracy. It is suitable for relay contact pressure, electronic switch, micro automatic telephone equipment contact and armature pressure and other mechanical pressure, tape recorder buffer device pressure and other contact point pressure and tension test.
Features
1. Gravity acceleration value can be set
2. The upper and lower limit alarm values can be set, and the sound alarm
3. point array LCD, white backlight
4. Test value direction display
5. The operation interface Chinese and English display can be selected
6. Store 100 sets of test data and automatically calculate the average, MAX Maximum, MIN Minimum of the stored data
7. Peak hold; automatic peak release function (0-99 seconds)
8. Automatic shutdown without operation (time setting 0-99 minutes)
9. USB communication: Computer display Linear dispersion of force value, various display methods of force value table and process the data
Principle
The digital tension meter detects the contact point pressure and tension force through Sensor, converts the force value signal into electrical signal, and displays the test result through point array liquid crystal display after processing, and supports a variety of unit display and data storage processing functions.
Applications
Relay contact pressure, electronic switch, micro automatic telephone equipment contact and armature pressure and other mechanical pressure, tape recorder buffer device pressure and other contact point pressure and tension test
Steps
1. Power on and select the interface language
2. Set the gravity acceleration value and the upper and lower limit alarm value
3. Conduct a tension test and observe the display reading
4. Use the peak hold function to record the maximum force value
5. Connect the computer via USB to view the force value Linear dispersion and table data
6. View stored test data statistics
Notice
• Please use in an environment without vibration and corrosive media
• Pay attention to the battery level and charge it in time.
• Confirm the measurement range before use to avoid over-range use
Periodically calibrate instruments to ensure measurement accuracy
• Avoid severe impacts and falls
