Overview

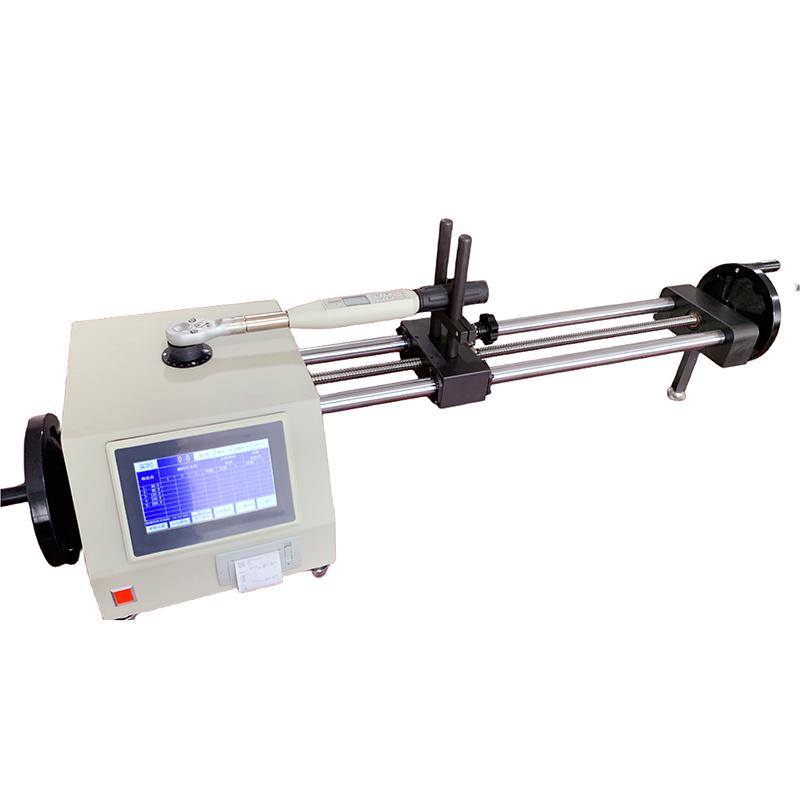

HNS-500 torque spanne verification instrument is a professional instrument produced by HBO for all kinds of torque spanne verification (calibrate). The instrument conforms to JJG 797-2013 torque spanne verification instrument verification procedure and JJG707-2014 torque spanne verification procedure standard test method. It adopts electronic Sensor technology and has the advantages of high accuracy, easy operation, high Sensitivity and reliable data.
Features
1. High Accuracy, High resolution, High stability
2. Large 7-inch color touch LCD screen, human-machine interaction interface is simple and easy to use
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. The device can do two-way (clockwise, counterclockwise) verification
5. Test direction display (counterclockwise +, clockwise -)
6. Provide JJG707-2014 torque spanne verification procedure standard test form, can directly print test data
7. 10 different test items can be customized, and different test points can be set respectively. After saving for the first time, it can be directly loaded and used
8. Can customize 8 check points, and can set the standard torque value of the corresponding point, the test interface real-time display test point torque indication and its indication relative error, indication repeability
9. You can choose the test location to set the gravitational acceleration value, and you can also customize the settings
10. Connect the host computer through a USB connection cable to read, store, analyze, and print real-time data
Principle
The instrument adopts electronic Sensor technology, connects the square head of the Sensor and the torque wrench through the connecting shaft, applies torque through the torque loading hand wheel, and connects the shaft counterclockwise swirl/spin when swirl/spin hand wheel clockwise to realize the verification of the torque wrench. The instrument collects torque data through the Sensor and displays the test results in real time on the display screen.
Applications
Torque wrench verification, torque wrench calibrating
Standards
JJG797-2013 torque spanne verification procedures, JJG707-2014 torque spanne verification procedures
Steps
1. Press the power switch to turn on the power, the indicator light is on, and the test system starts-up
2. Adjust the handle height of the torque wrench through the horizontal column to make it level on the verification instrument
3. Use the arm adjustment wheel to adjust the length of the loading arm of the torque wrench
4. Set test parameters and checkpoints by touching the LCD screen
5. swirl/spin torque loading hand wheel applied torque test
6. View the test data through the display screen, and optionally print the test results
7. After the test is completed, press the power switch again to turn off the system
Notice
• The working environment should be free of seismic sources and electromagnetic interference
• Make sure the equipment is placed horizontally before use
• Power frequency AC 220V 50HZ
• Torque loading hand wheel clockwise swirl/spin when connecting shaft counterclockwise swirl/spin
• Limit block can be locked by plum screw
• Arm adjustment hand wheel right clockwise swirl/spin when the guide block moves to the right, the length of the arm increases
• The gravitational acceleration value should be set correctly before the test
