Overview

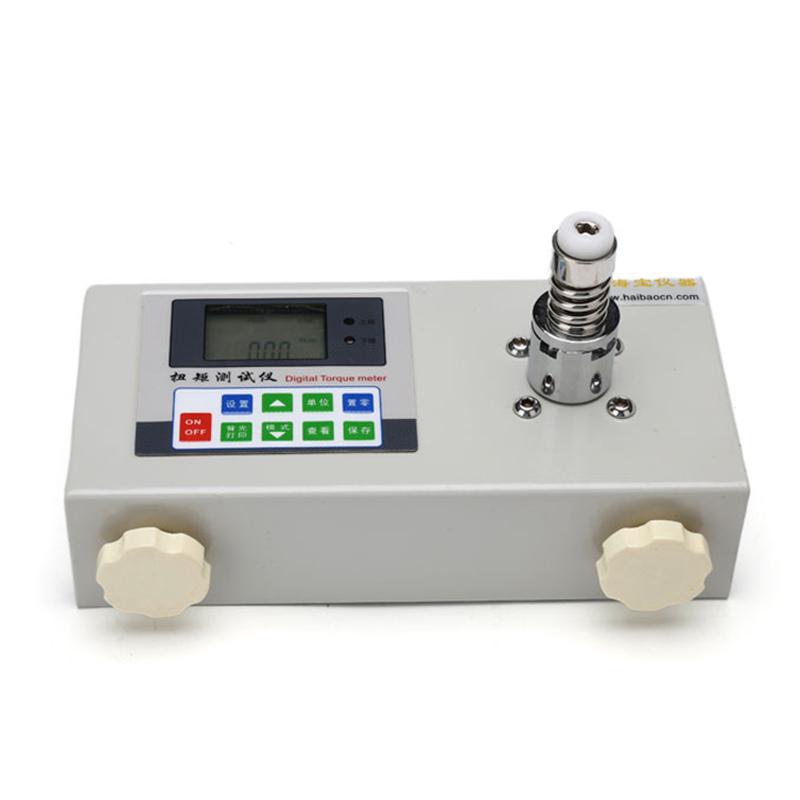

HN series digital torque tester is a general-purpose torsional torque measuring instrument, which is mainly used to detect the tightness of the workpiece and the torsional performance of some components. It is also used for the measurement and correction of various electric batches, torque batches, and torque wrench torque and torque setting conditions. The instrument adopts electronic Sensor technology, which has the advantages of high accuracy, easy operation, high Sensitivity, and reliable data. It is widely used in various mass detection, physical experiments, engineering tests and other fields.
Features
1. High Accuracy, high resolution, high stability, sampling speed up to 100HZ

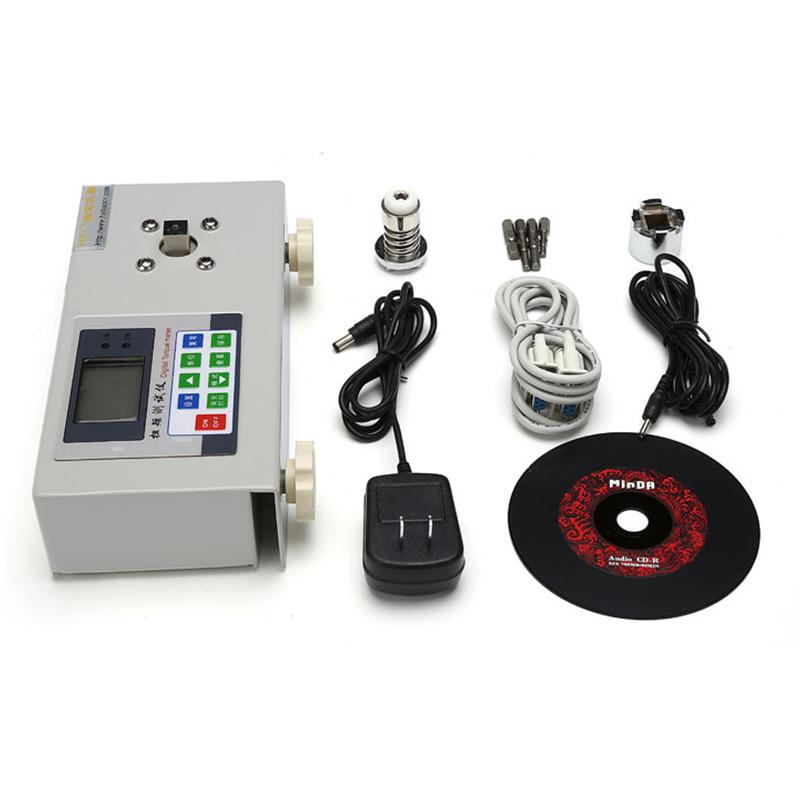

2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
3. Segment LCD display, green backlight screen
4. Three units N.m, kgf.cm, lbf.in automatic conversion
5. Test direction display (counterclockwise +, clockwise -)
6. Three test modes: real-time torque value tracking mode, peak hold mode, first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Using intelligent charging, safe charging, prolong battery life
13. Host computer software: Chinese WINDOWS interface
14. Linear dispersion of test results: real-time torque value - time, peak torque value - times, first peak - times
15. Qualification judgment: In addition to automatically obtaining test results, qualified judgment and batch testing pass rate can also be made according to the qualified range of preset standard values
16. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
17. Test data: The data obtained from the test can be queried and exported in excel format
18. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The instrument uses electronic Sensor technology for torsional torque measurement, detects torque signals through Sensor, and displays them on the LCD screen after processing, and can store, analyze and export data through the host computer software.
Applications
Mass inspection, physical experiment, engineering test
Standards
JB/T5483-2015 standard torque meter technical specification, JJG_557 -2011 standard torque meter
Steps
1. Connect the instrument to a power supply or charger
2. Turn on the instrument power switch
3. Set test mode, unit, upper and lower limits and other parameters as needed
4. Perform torque test operation
5. View real-time or peak data
6. Store test data
7. Connect PC software for data analytics, export and report generation
Notice
• operation temperature range is 0~ 40 ℃, storage temperature is -20 ℃ -70 ℃
• relative humidity should be kept at 15% -80%
• The working environment should be free of vibration and corrosive media
• Make sure the battery is fully charged before use, and use smart charging to prolong battery life
• Avoid using the instrument beyond the range
• EVA Shockproof Encasement in a special toolbox for transportation and storage
