Overview

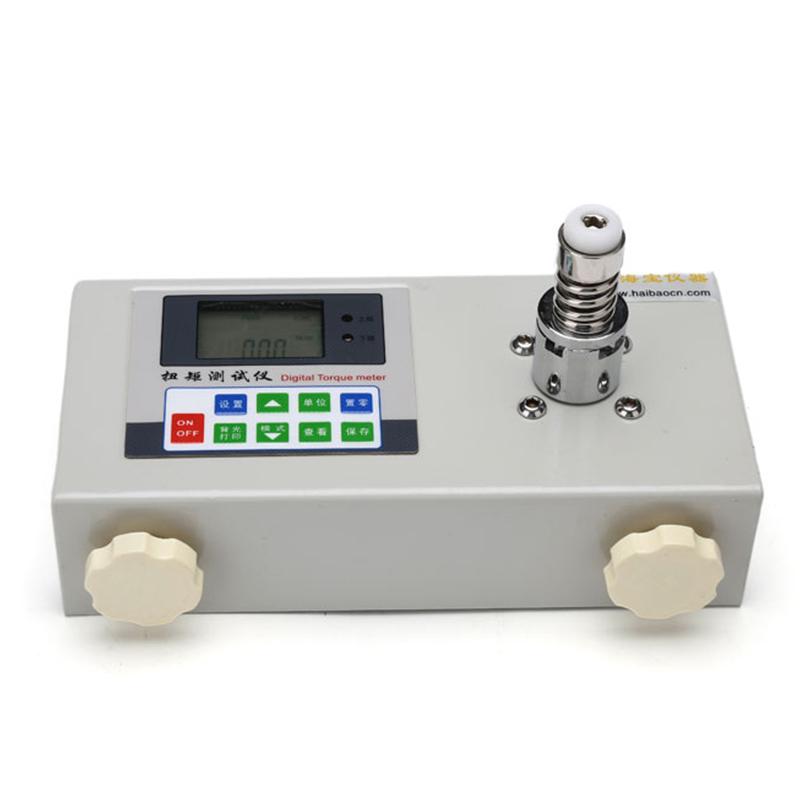

HN-E series digital high-speed torque tester is an intelligent multi-functional Measurement instrument specially designed to detect the torque of high-speed and force-twisting equipment. It is mainly used to detect the tightness of the workpiece and the anti-torsional performance of the component. It can also measure and correct the torque and torque setting of various electric batches, wind batches, torque batches, and torque wrench. It has the advantages of high accuracy, easy operation, high Sensitivity, and reliable data.
Features
1. High Accuracy High resolution, high stability, sampling speed up to 1920HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, easy to transport, store and carry
3. Segment LCD with green backlight
4. Three units N.m, kgf.cm, lbf.in automatic conversion
5. Test direction display (counterclockwise +, clockwise -)
6. Three test modes: real-time torque value tracking mode, peak hold mode, first peak mode
7. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
8. Store 99 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
9. Peak hold time can be set (0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (0~ 99 minutes)
12. Smart charging, safe charging and extended battery life
13. The host computer software is Chinese WINDOWS interface
14. Linear dispersion of test results: real-time torque value - time, peak torque value - times, first peak - times
15. Qualification judgment function: automatically judge the qualification and batch inspection pass rate according to the preset standard value
16. Automatic storage of test data and Linear dispersion to the computer, unlimited storage quantity
17. Test data can be queried and exported in excel format
18. Test reports can be prepared and printed according to user requirements
Principle
The instrument uses electronic Sensor technology to detect torque signals in real time through High Accuracy Sensor, and combines high-speed sampling and processing systems to achieve accurate measurement and data management of torque values.
Applications
Mass inspection, physical experiment, engineering test
Standards
JB/T5483-2015 standard torque meter technical specification, JJG_557 -2011 standard torque meter
Steps
1. Connect the device and turn on the power supply.
2. Select the test mode and unit
3. Set the upper and lower limit comparison value and peak holding time
4. Perform torque test operation
5. View real-time or peak data
6. Store test data and automatically calculate statistical values
7. Connect PC software for data analytics, export and report generation
Notice
• The working environment should be free of vibration and corrosive media
• operation temperature range is 0~ 40 ℃, storage temperature is -20 ℃ -70 ℃
• relative humidity should be kept at 15% -80%
• Charge with a special charger, input AC 220V/50HZ, output DC 5V/1A
• Avoid using the instrument beyond the range
Periodically calibrated to ensure measurement accuracy
