Overview

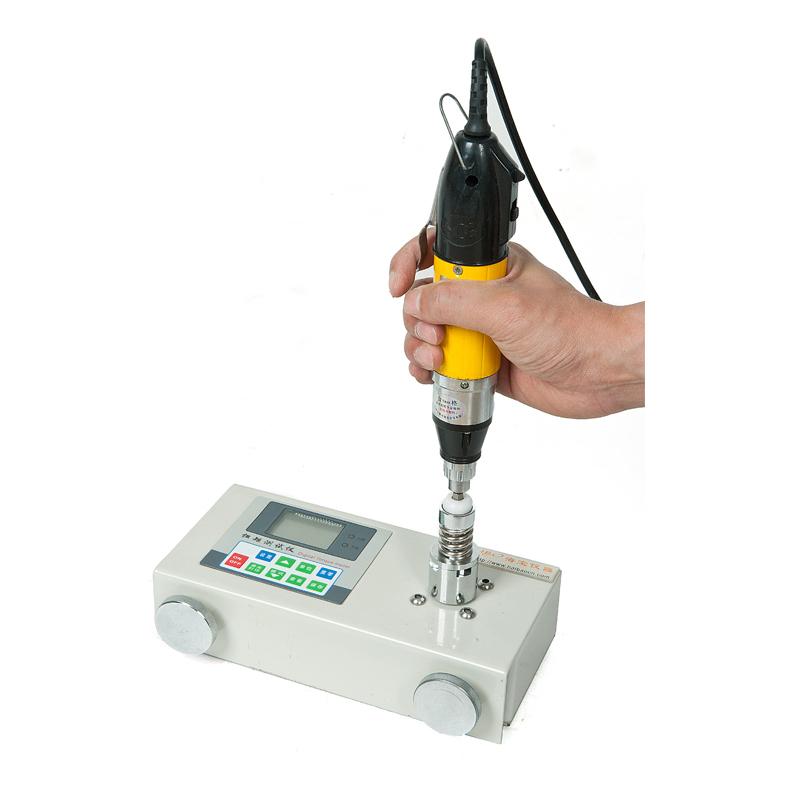

HN-500E digital high-speed torque tester is an intelligent multi-functional Measurement instrument designed by HBO for detecting the torque of high-speed and Impact torsion equipment. It is mainly used to detect the tightness of the workpiece and the torsional performance of the component, as well as the measurement and correction of the torque and torque setting of various electric batches, wind batches, torque batches, and torque wrench. It has the advantages of high accuracy, easy operation, high Sensitivity, and reliable data.
Features
1. High Accuracy, high resolution, high stability, sampling speed up to 1920HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry

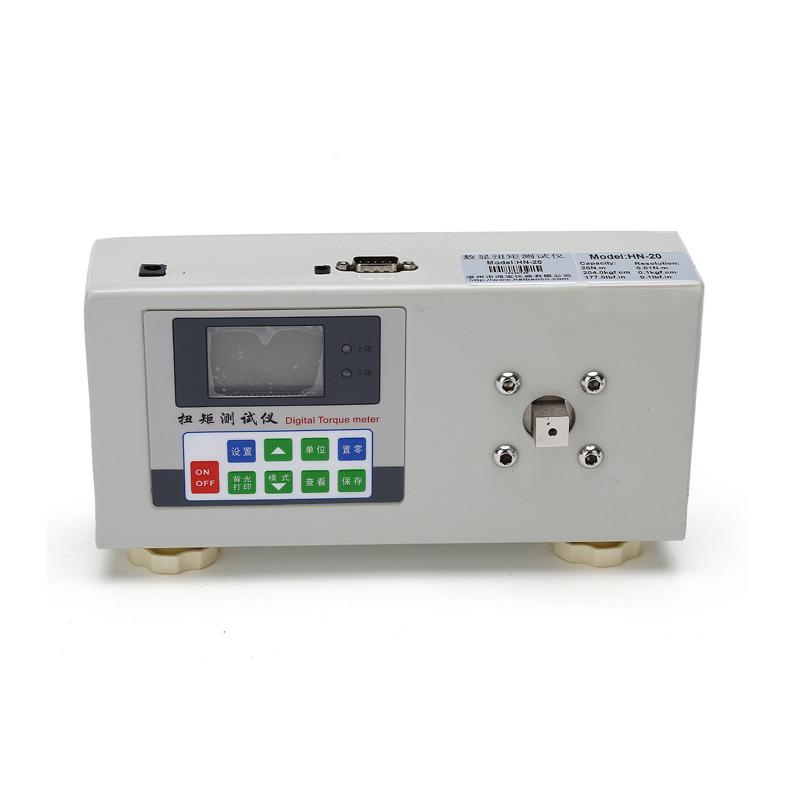

3. Segment LCD display, green backlight screen
4. Three units N.m, kgf.cm, lbf.in automatic conversion
5. Test direction display (counterclockwise +, clockwise -)
6. Three test modes: real-time torque value tracking mode, peak hold mode, first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Using intelligent charging, safe charging, prolong battery life
13. Host computer software: Chinese WINDOWS interface
14. Linear dispersion of test results: real-time torque value - time, peak torque value - times, first peak - times
15. Qualification judgment: In addition to automatically obtaining test results, qualified judgment and batch testing pass rate can also be made according to the qualified range of preset standard values
16. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
17. Test data: The data obtained from the test can be queried and exported in excel format
18. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The instrument adopts electronic Sensor technology, which detects torque signal in real time through High Accuracy Sensor, converts it into digital signal for processing and display. It is equipped with special host computer operating software to connect to the computer to realize functions such as data storage, analysis, export, query and printing.
Applications
Mass inspection, physical experiment, engineering test
Standards
JB/T5483-2015 standard torque meter technical specification, JJG_557 -2011 standard torque meter
Steps
1. Connect the instrument to the computer (optional)
2. Set the test mode (real-time torque tracking mode, peak hold mode or first peak mode)
3. Set units (N.m, kgf.cm, lbf.in)
4. Set the upper and lower limit comparison values (optional)
5. Set peak hold time (optional)
6. Set the gravitational acceleration value (optional)
7. Set the automatic shutdown time (optional)
8. Start the test and read the data
9. Store test data (up to 99 sets)
10. Data analytics, export and report generation via PC software (optional)
Notice
• operation temperature range: 0~ 40 ℃
• Storage temperature range: -20 ℃ -70 ℃
• relative humidity: 15% -80%
• Working environment: no vibration and corrosive medium around
• Use designated charger: AC Input: 220V/50HZ, DC Output: 5V/1A
• Power frequency: Lithium Battery: 3.7V/1000mAh
• Avoid use beyond the specified environment conditions
• Special EVA Shockproof Encasement for Transportation and Storage
