Overview

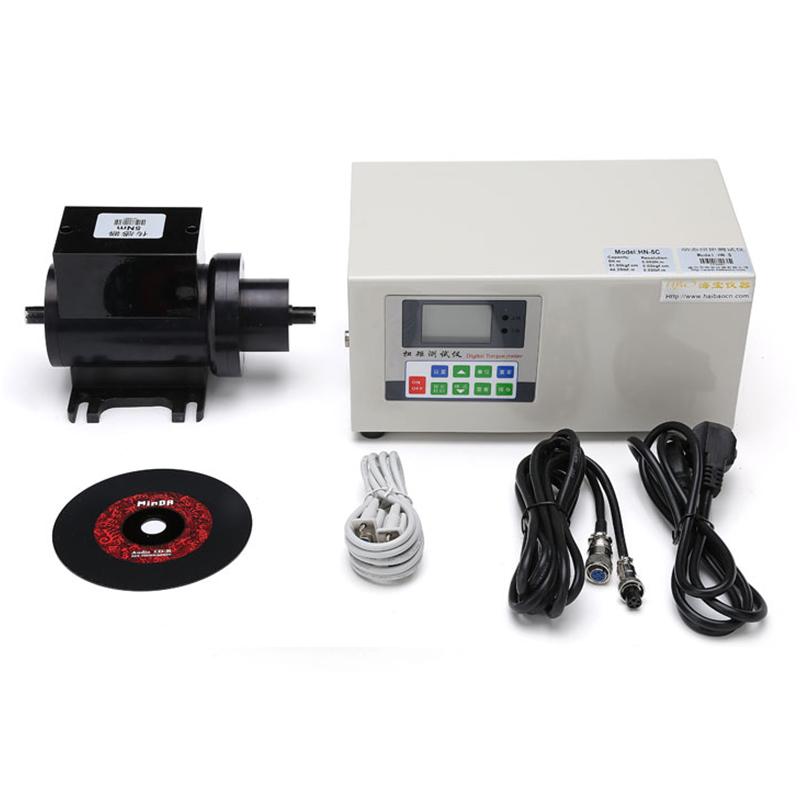

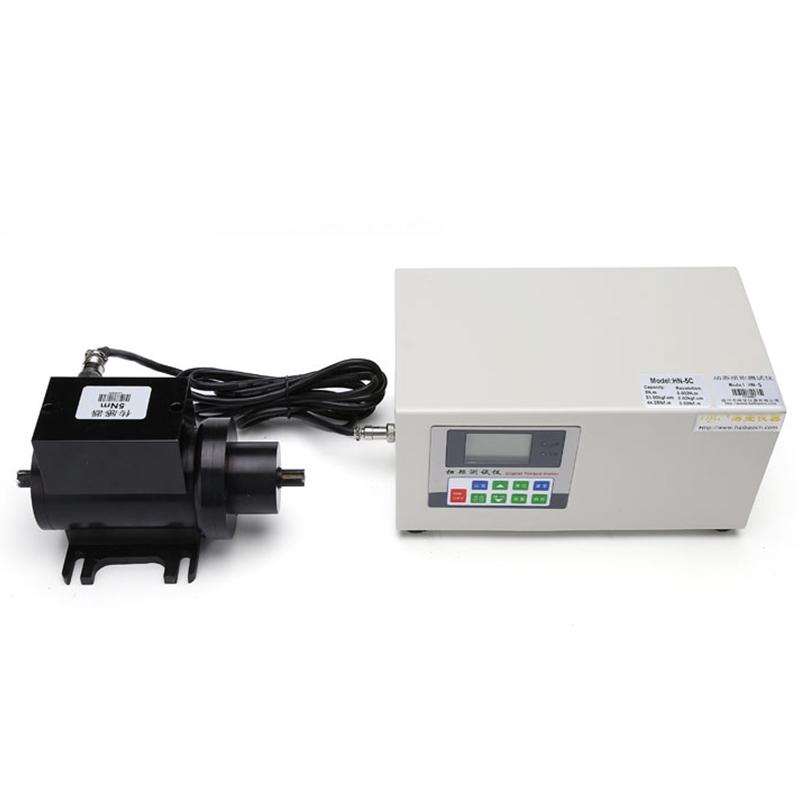

HN-C digital torque tester is a digital dynamic torque tester produced by HBO. It is an intelligent Measurement instrument specially designed and manufactured for detecting various swirl/spin dynamic torque. The instrument is used to detect torque changes of various motors, gear reducers and other products during operation. It adopts electronic Sensor technology and has the advantages of high accuracy, easy operation, high Sensitivity and reliable data. It is equipped with a special host computer operating software to connect to a computer for data storage, analysis, export, query and printing.
Features
1. High Accuracy and high resolution, high stability
2. Segment LCD display, green backlight screen
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. Test direction display (counterclockwise +, clockwise -)
5. Three test modes: real-time torque value tracking mode, peak hold mode, first peak mode
6. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
7. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
8. Peak hold time can be set (can be set from 0 to 99 seconds)
9. Gravity acceleration value can be set
10. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
11. Adopt external smart charger, which can charge safely and prolong battery life
12. Serial output (baud rate 9600)
13. Host computer software: Chinese WINDOWS interface
14. Linear dispersion of test results: real-time torque value - time, peak torque value - times, first peak - times
15. Qualification judgment: In addition to automatically obtaining test results, qualified judgment and batch testing pass rate can also be made according to the qualified range of preset standard values
16. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
17. Test data: The data obtained from the test can be queried and exported in excel format
18. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The instrument uses electronic Sensor technology to detect various swirl/spin dynamic torque, real-time measurement torque changes through the Sensor, and transmits the data to the processing unit for analysis and display. Equipped with special host computer software, connected to the computer through the serial port to realize further data processing, storage and report generation.
Applications
Motor and gear reducer
Notice
- operating temperature: 0~ 40 ℃
- Storage temperature: -20 ℃ -70 ℃
- relative humidity: 15% -80%
- Working environment: no vibration and corrosive medium around
