Overview

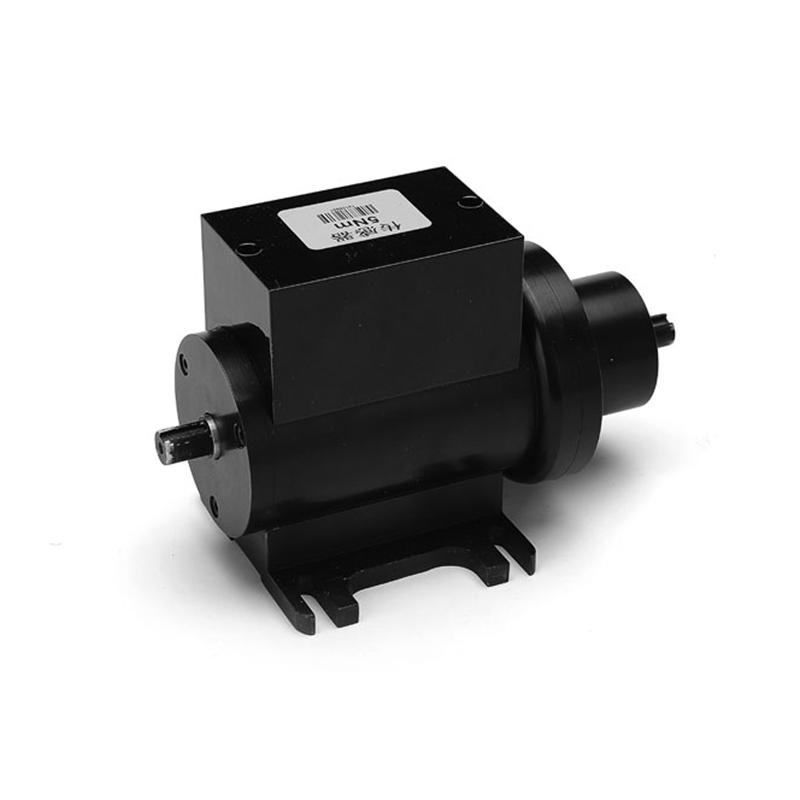

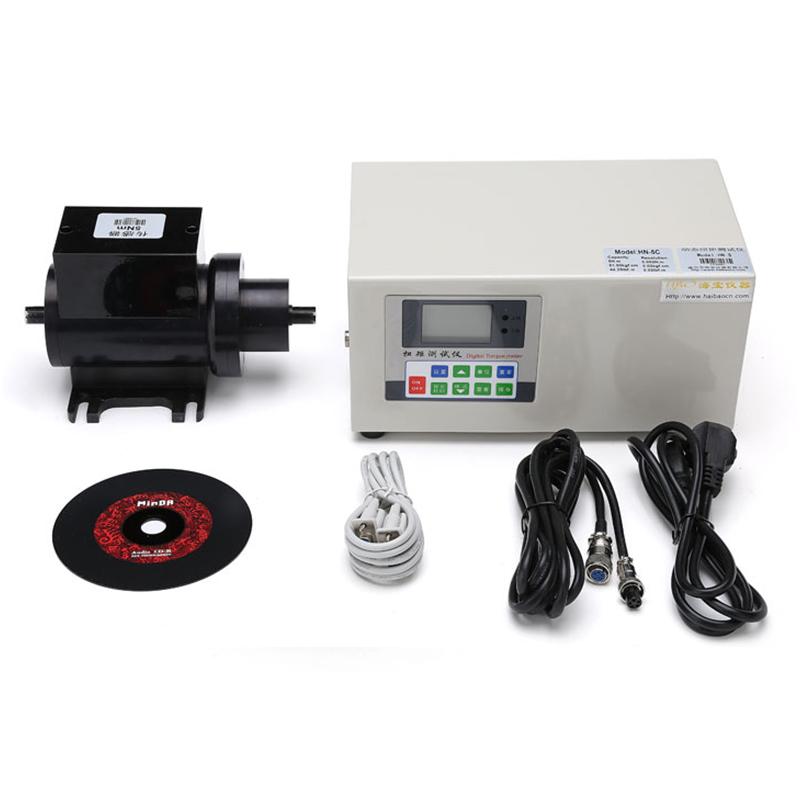

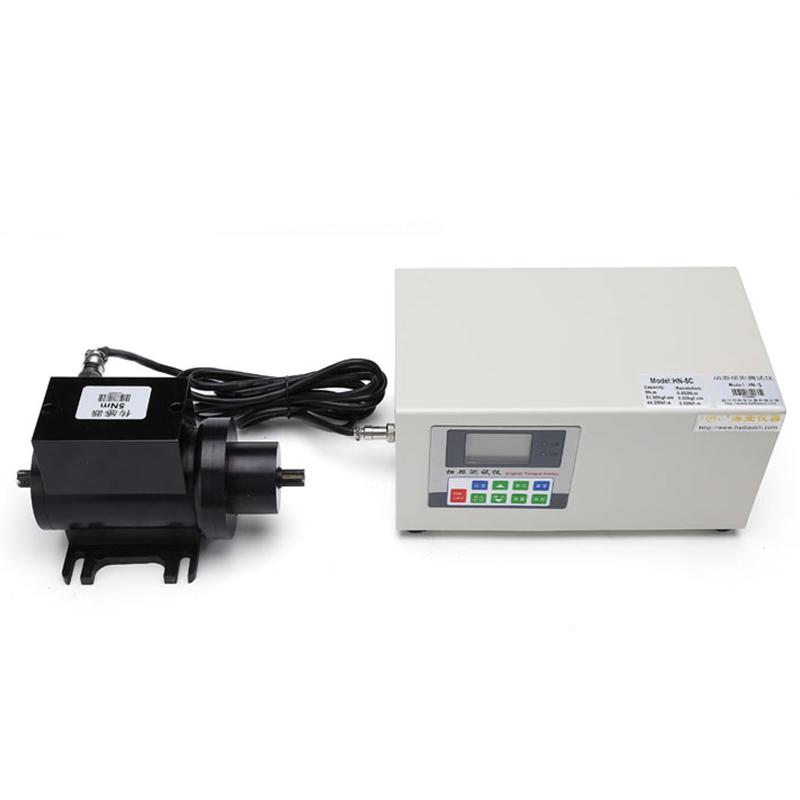

HN-500C digital dynamic torque tester is an intelligent measurement instrument designed and manufactured by HBO for detecting various swirl/spin dynamic torque. The instrument adopts electronic Sensor technology to detect the torque change of motors, gear reducers and other products during work. It has the advantages of high accuracy, easy operation, high Sensitivity, reliable data, etc. It is equipped with special host computer operation software to realize data storage, analysis, export, query and printing functions.
Features
1. High Accuracy and high resolution, high stability
2. Segment LCD display, green backlight screen
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. Test direction display (counterclockwise +, clockwise -)
5. Three test modes: real-time torque value tracking mode, peak hold mode, first peak mode
6. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
7. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
8. Peak hold time can be set (can be set from 0 to 99 seconds)
9. Gravity acceleration value can be set
10. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
11. Adopt external smart charger, which can charge safely and prolong battery life
12. Serial output (baud rate 9600)
13. Host computer software: Chinese WINDOWS interface
14. Linear dispersion of test results: real-time torque value - time, peak torque value - times, first peak - times
15. Qualification judgment: In addition to automatically obtaining test results, qualified judgment and batch testing pass rate can also be made according to the qualified range of preset standard values
16. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
17. Test data: The data obtained from the test can be queried and exported in excel format
18. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The instrument uses electronic Sensor technology to detect various swirling/spinning dynamic torque, collects torque data in real time through Sensor, and cooperates with the host computer software for data processing and analysis.
Applications
Motors, gear reducers and other swirling/spinning products
Steps
1. Connect the test instrument to the computer
2. Start the host computer operating software
3. Set test parameters (e.g. unit, test mode, peak hold time, etc.)
4. Perform torque test
5. View and analyze test data
6. Export or print the test report
