Overview

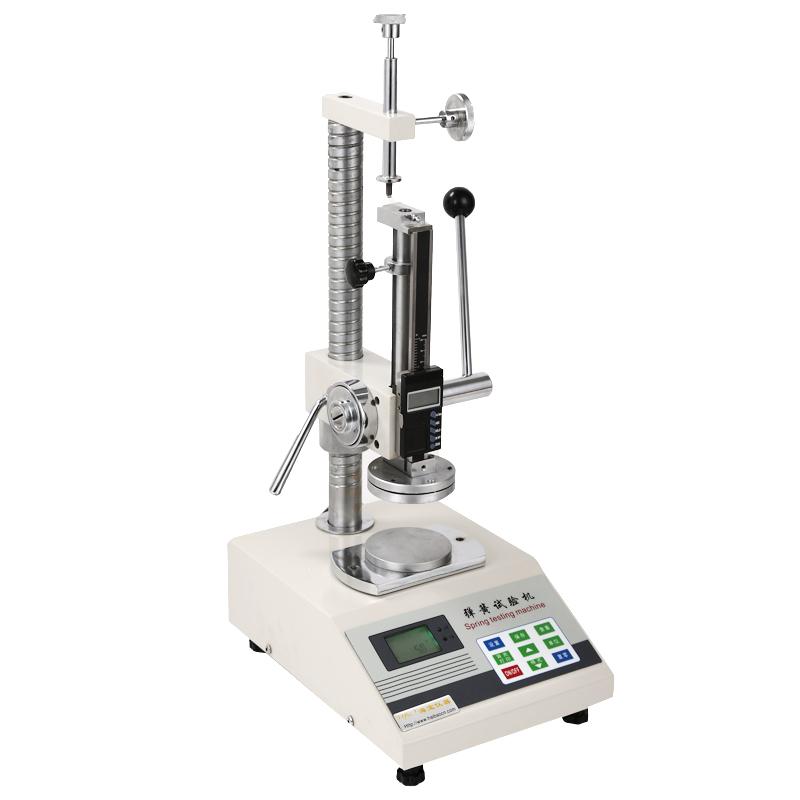

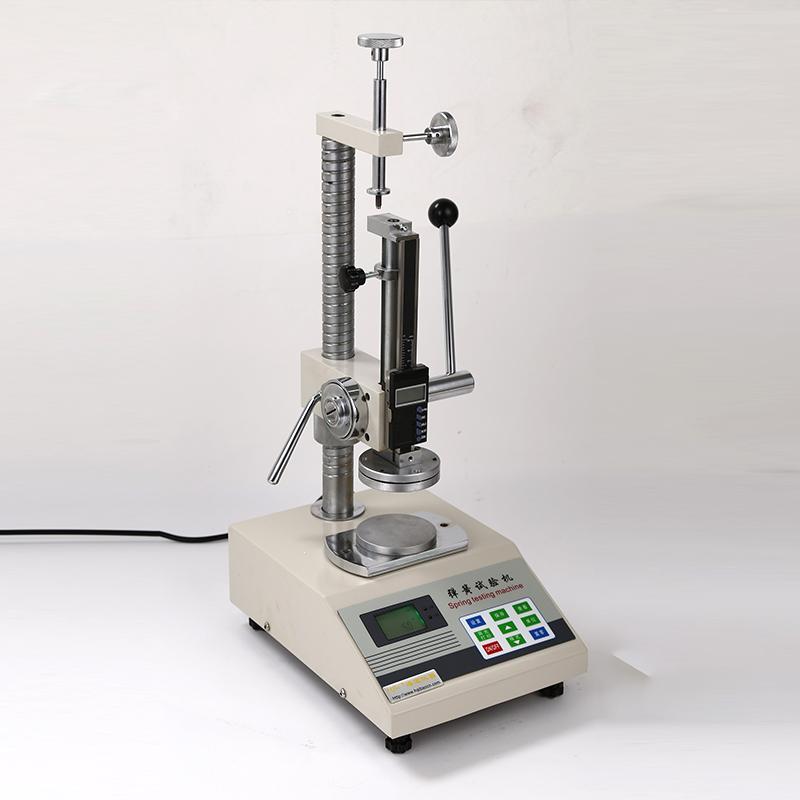

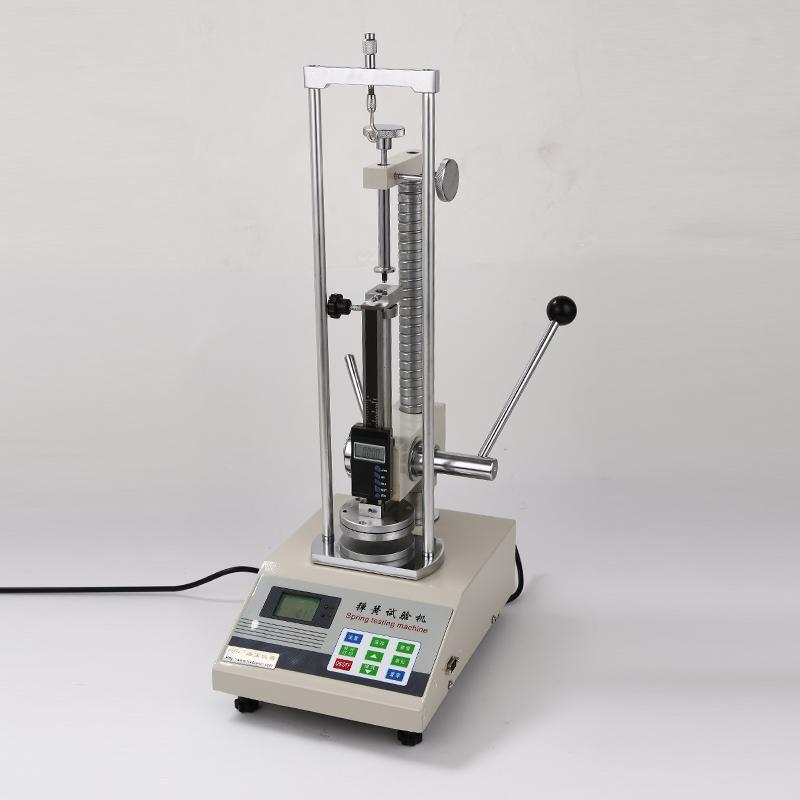

HT-100 spring tensile and compression tester is an electronic digital spring tensile and compression tester produced by HBO, which is used to test the deformation and load relationship characteristics of tensile and compression springs. It is suitable for testing the working load of springs under a certain working length.
Features
1. First peak hold function during testing

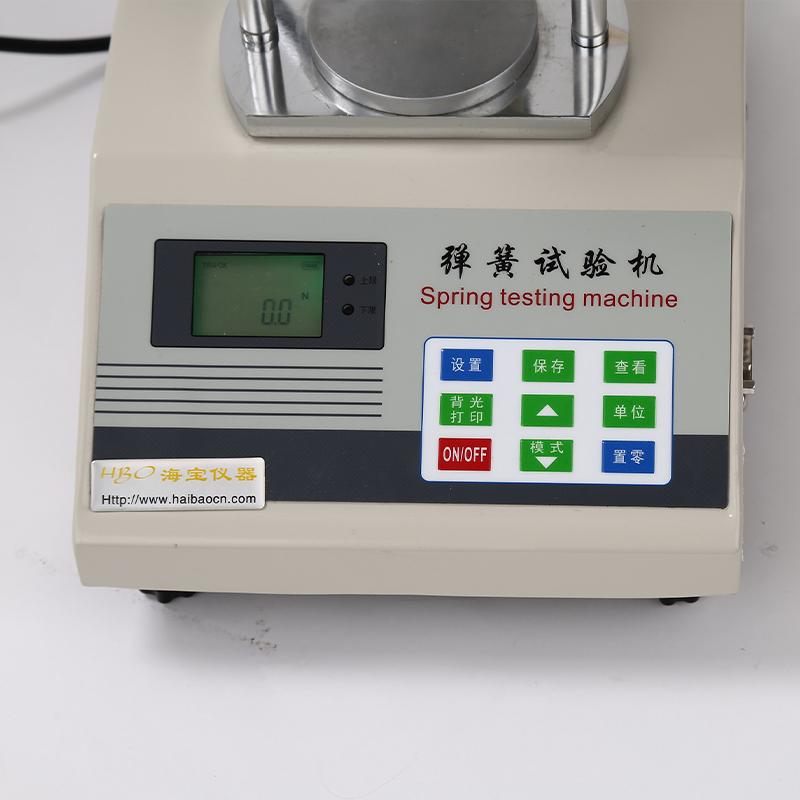

2. Equipped with LCD screen and blue backlight
3. High Accuracy, High resolution and High sampling speed
4. Can set the upper and lower limit alarm value, support sound and light alarm and level signal output
5. Can store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
6. Support automatic conversion of three units of N, kgf and lbf
7. Peak hold function, the hold time can be set (0-99 seconds)
8. Automatic shutdown without operation, the time can be set (0-99 minutes)

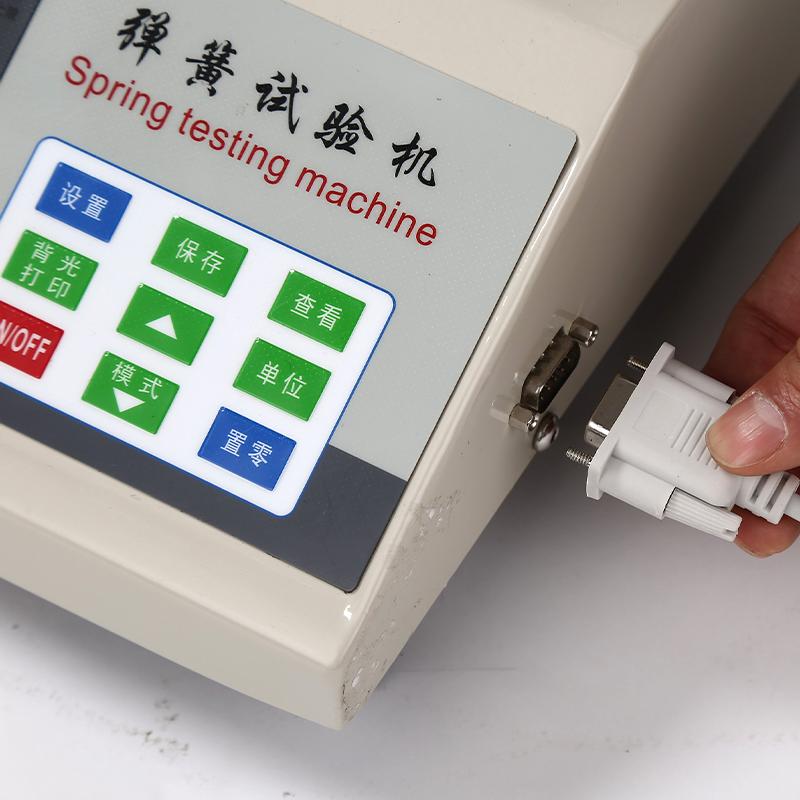

9. Support serial communication (can be configured as USB communication), the computer can display force value Linear dispersion and force value table, support data processing such as printing and statistical analysis
10. Optional installation of micro printers
Principle
The testing machine uses the electronic digital display system to measure the deformation and load relationship of the spring during stretching or compression, collects data using High Accuracy Sensor, and displays the test results in real time through the LCD screen, supporting peak holding and data storage functions.
Applications
Tension spring test, compression spring test
Steps
1. Install the spring on the testing machine
2. Set test parameters, such as upper and lower limit alarm values and peak hold time
3. Start the test, the instrument automatically measures the deformation and load
4. Data is automatically stored and processed, and results can be output through a computer or micro printer
5. After the test is completed, the instrument can be automatically shut down
Notice
• Ensure that the free length of the spring does not exceed 100mm
• Check the diameter of the platen and effective travel before testing
• Set the alarm value to avoid over-limit testing
• Periodically calibrate instruments to ensure accuracy +/- 0.5%
• Avoid turning on for a long time without operation, and can set the automatic shutdown time
