Overview

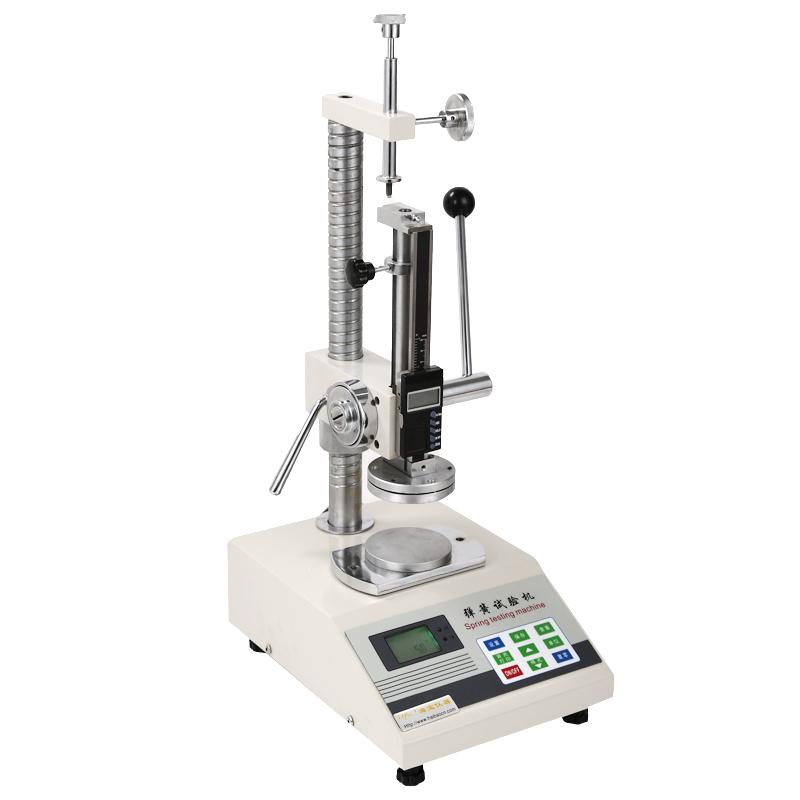

HT-500 spring tensile and compression testing machine is a special electronic digital display spring testing instrument produced by HBO, which is used to test the deformation and load relationship characteristics of tensile and compression springs. It is suitable for working load testing of tensile and compression springs under a certain working length.
Features
1. With the first peak hold function during the test
2. LCD screen, blue backlight
3. High Accuracy High resolution, high sampling speed
4. The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high and low)
5. Store 200 sets of test data and automatically calculate the average value of the stored data, MAX Maximum, MIN Minimum
6. Three units N, kgf, lbf are automatically converted
7. Peak hold, hold time can be set (0~ 99 seconds)
8. Automatic shutdown without operation (time freely set 0-99 minutes)
9. Serial communication (can be conveniently configured as USB communication), computer display force value Linear dispersion, force value table and other display methods and process data: such as printing, statistical analysis, etc
10. Optional installation of micro printers
Principle
The testing machine measures the deformation and load relationship of the spring during stretching or compression by electronic digital display, collects data with High Accuracy Sensor, and displays the test results in real time through the LCD screen, and has data storage and processing functions.
