Overview

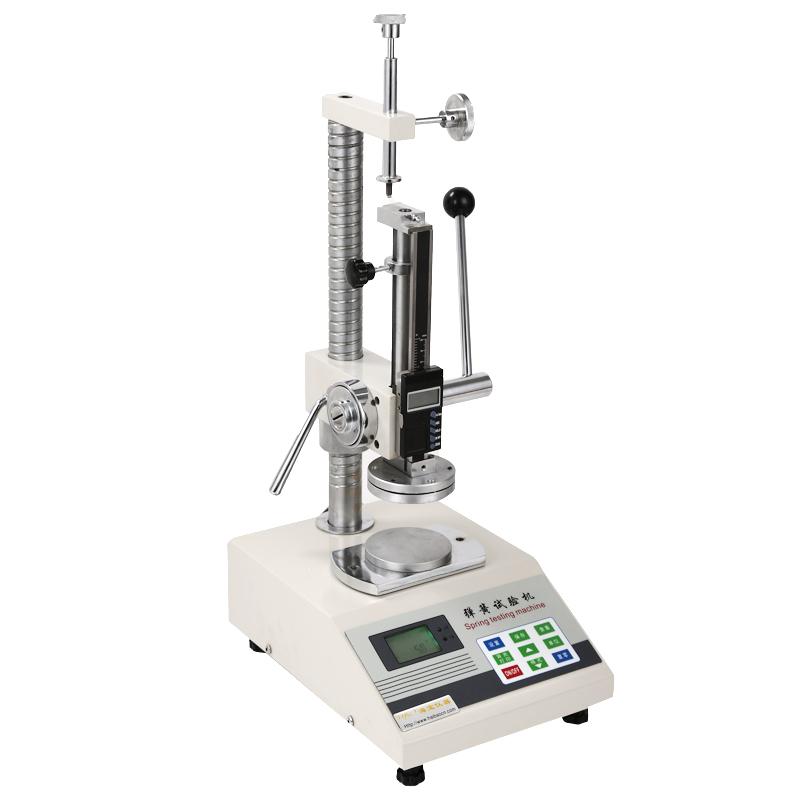

HT-2000 spring tensile and compression testing machine is a special testing equipment produced by HBO, which is used to test the deformation and load relationship characteristics of tensile and compression springs. It is suitable for working load testing of tensile and compression springs under a certain working length.
Features
1. With the first peak hold function during the test
2. LCD screen, blue backlight
3. High Accuracy High resolution, high sampling speed
4. The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high and low)
5. Store 200 sets of test data and automatically calculate the average value of the stored data, MAX Maximum, MIN Minimum
6. Three units N, kgf, lbf are automatically converted
7. Peak hold, hold time can be set (0~ 99 seconds)
8. Automatic shutdown without operation (time freely set 0-99 minutes)
9. Serial communication (can be conveniently configured as USB communication), computer display Linear dispersion, force table and other display methods and process data: such as printing, statistical analysis, etc
10. Optional installation of micro printers
Principle
The testing machine uses High Accuracy Sensor to collect data by measuring the deformation and load relationship of the spring during stretching or compression, and displays the test results in real time through the LCD screen. It also has functions such as peak holding, data storage and automatic calculation.
Applications
Tension spring test, compression spring test
Standards
Accuracy ： +/- 0.5%
Steps
1. Connect the power supply and turn it on.
2. Set test parameters and alarm values
3. Install the spring to be tested
4. Start testing and observe the display data
5. Review peak hold data after the test is complete
6. Optionally store data or connect to a computer for data analytics
7. Shut down after use
Notice
• Please read the instructions carefully before use
• Power frequency compliance
• Test shall not exceed the maximum measurement value of 2000N
• Keep equipment clean and drying
• Regular calibrated maintenance
• Pay attention to safety protection during operation
