Overview

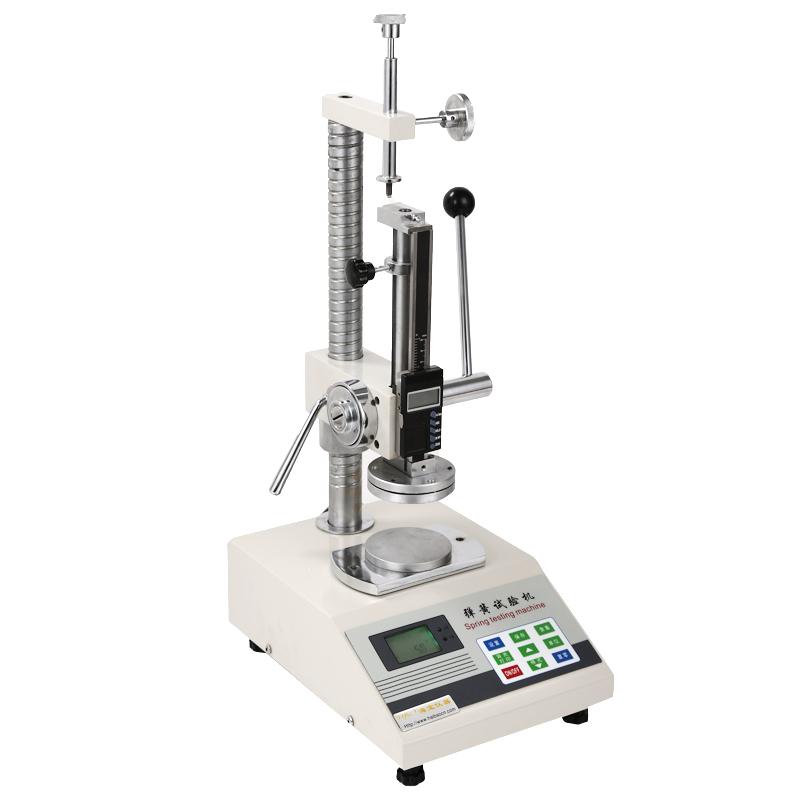

HT-30P spring tensile and compression tester is a digital electronic spring tensile and compression tester produced by HBO, which is used to test the deformation and load relationship characteristics of tensile and compression springs.
Features
1. With the first peak hold function during the test
2. LCD screen, blue backlight
3. High Accuracy High resolution, high sampling speed
4. The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high and low)
5. Store 200 sets of test data and automatically calculate the average value of the stored data, MAX Maximum, MIN Minimum
6. Three units N, kgf, lbf are automatically converted
7. Peak hold, hold time can be set (0~ 99 seconds)
8. Automatic shutdown without operation (time freely set 0-99 minutes)
9. Serial communication (can be conveniently configured as USB communication), computer display Linear dispersion, force table and other display methods and process data: such as printing, statistical analysis, etc
10. Optional installation of micro printers
Principle
The testing machine measures the deformation and load relationship of the spring during stretching or compression through the electronic digital display system, collects data with High Accuracy Sensor, displays the test results in real time through the LCD screen, and has data storage and processing functions.
Applications
Tension spring test, compression spring test
Steps
1. Connect the power supply and turn it on.
2. Set test parameters (such as upper and lower limit alarm values, peak hold time, etc.)
3. Install the spring to be tested
4. Start the test and observe the display data
5. View and save the data after the test is completed
6. Optionally connect a computer for data analytics and processing
7. Shut down after use
Notice
• Please read the instructions carefully before use
• Make sure the power connection is correct
• Check whether the spring installation is firm before the test
• Avoid exceeding the maximum measurement value of 30N
Periodically calibrate instruments to ensure accuracy
• Keep the instrument clean and drying
• Non-professionals should not disassemble the instrument
