Overview

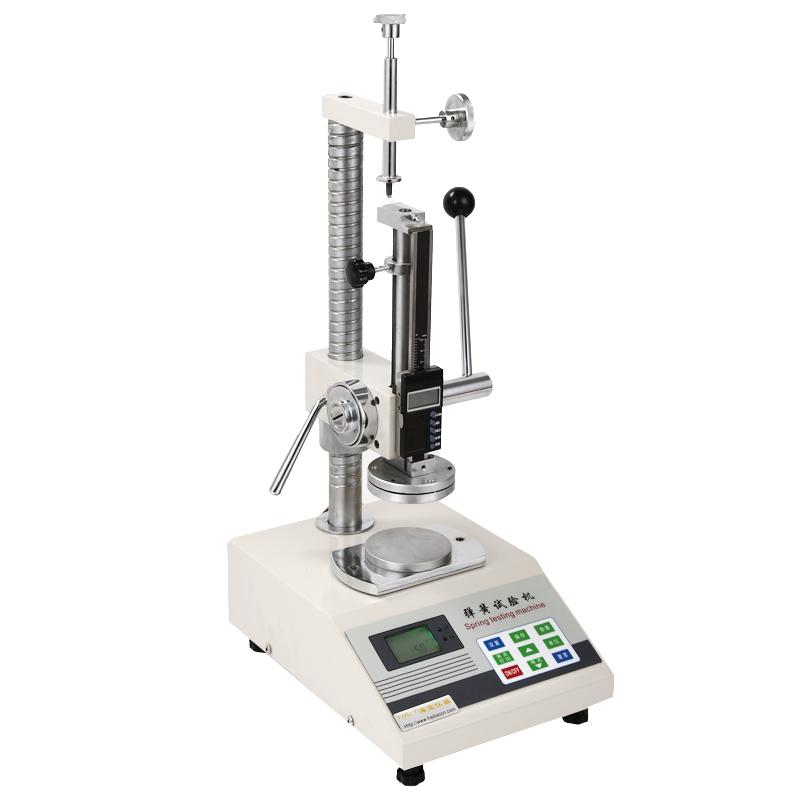

HT-200P spring tensile and compression testing machine is the HT series electronic digital display spring tensile and compression testing machine produced by HBO, which is specially used to test the deformation and load relationship characteristics of tensile and compression springs. It is suitable for working load testing of tensile and compression springs under a certain working length.
Features
1. With the first peak hold function during the test
2. LCD screen, blue backlight
3. High Accuracy High resolution, high sampling speed
4. The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high and low)
5. Store 200 sets of test data and automatically calculate the average value of the stored data, MAX Maximum, MIN Minimum
6. Three units N, kgf, lbf are automatically converted
7. Peak hold, hold time can be set (0~ 99 seconds)
8. Automatic shutdown without operation (time freely set 0-99 minutes)
9. Serial communication (can be conveniently configured as USB communication), computer display Linear dispersion, force table and other display methods and process data: such as printing, statistical analysis, etc
10. Optional installation of micro printers
Principle
The testing machine uses the electronic digital display system to measure the deformation and load relationship of the spring during stretching or compression, collects data using High Accuracy Sensor, and displays the test results in real time through the LCD screen, and has data storage, calculation and communication functions.
Applications
Tension spring test, compression spring test
Steps
1. Connect the power supply and turn it on.
2. Set test parameters (such as upper and lower limit alarm values, peak hold time, etc.)
3. Install the spring to be tested
4. Start the test, and the instrument automatically collects data
5. View the test results and choose to store or output the data
6. Shut down or wait for automatic shutdown after the test is completed
Notice
• Please make sure the power supply is connected correctly before use
• Spring installation should be stable during testing
• Regularly calibrate instruments to ensure test accuracy
• Avoid exceeding the maximum measurement value of 200N
• Pay attention to keep the instrument clean and drying
• Disconnect the power supply if not used for a long time
