Overview

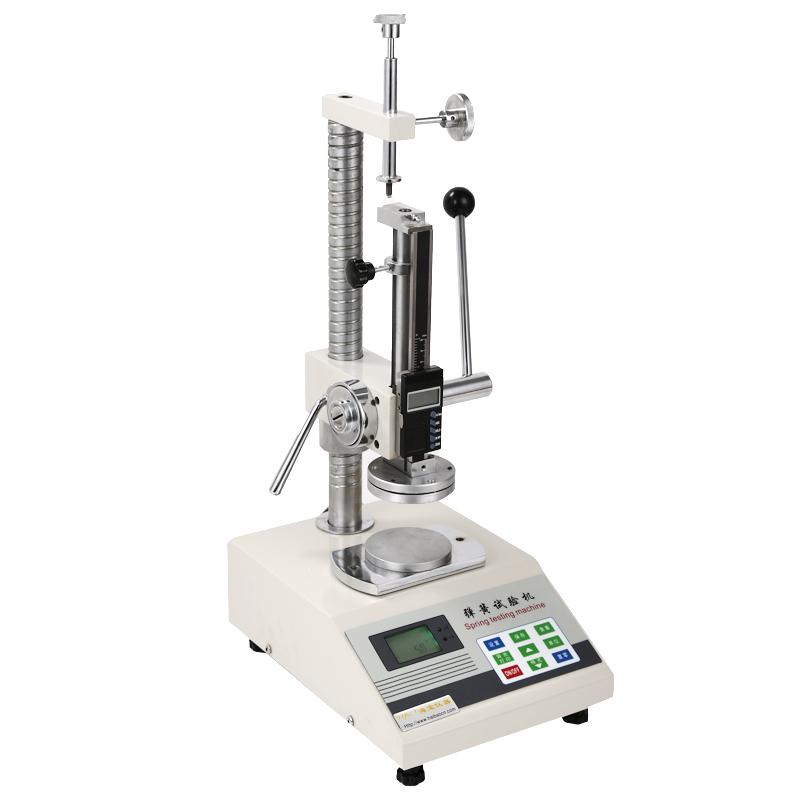

HT-500P spring tensile and compression tester is a digital electronic spring tensile and compression tester produced by HBO, which is used to test the deformation and load relationship characteristics of tensile and compression springs.
Features
1. With the first peak hold function during the test
2. LCD screen, blue backlight
3. High Accuracy High resolution, high sampling speed
4. The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high and low)
5. Store 200 sets of test data and automatically calculate the average value of the stored data, MAX Maximum, MIN Minimum
6. Three units N, kgf, lbf are automatically converted
7. Peak hold, hold time can be set (0~ 99 seconds)
8. Automatic shutdown without operation (time freely set 0-99 minutes)
9. Serial communication (can be conveniently configured as USB communication), computer display Linear dispersion, force table and other display methods and process data: such as printing, statistical analysis, etc
10. Optional installation of micro printers
Principle
The HT-500P spring tensile and compression testing machine measures the deformation and load relationship of the spring during the stretching or compression process through the electronic digital display system, uses the High Accuracy Sensor to collect data, and displays the test results in real time through the LCD screen, and has data storage and processing functions.
Applications
Tension spring test, compression spring test
Steps
1. Install the spring on the testing machine
2. Set test parameters and upper and lower limit alarm values
3. Start the test, and the instrument automatically records the deformation and load relationship
4. Review peak hold data after the test is complete
5. View the test results through the LCD screen or computer
6. Optionally print test reports or perform data analytics
Notice
• Make sure the spring is firmly installed before testing
• Set appropriate upper and lower limit alarm values
• Be careful to keep the time setting range at 0-99 seconds
• Automatic shutdown time without operation can be set to 0-99 minutes
Periodically calibrate instruments to ensure measurement accuracy
• Avoid exceeding the maximum measurement value of 500N
• Use the appropriate unit for testing
