Overview

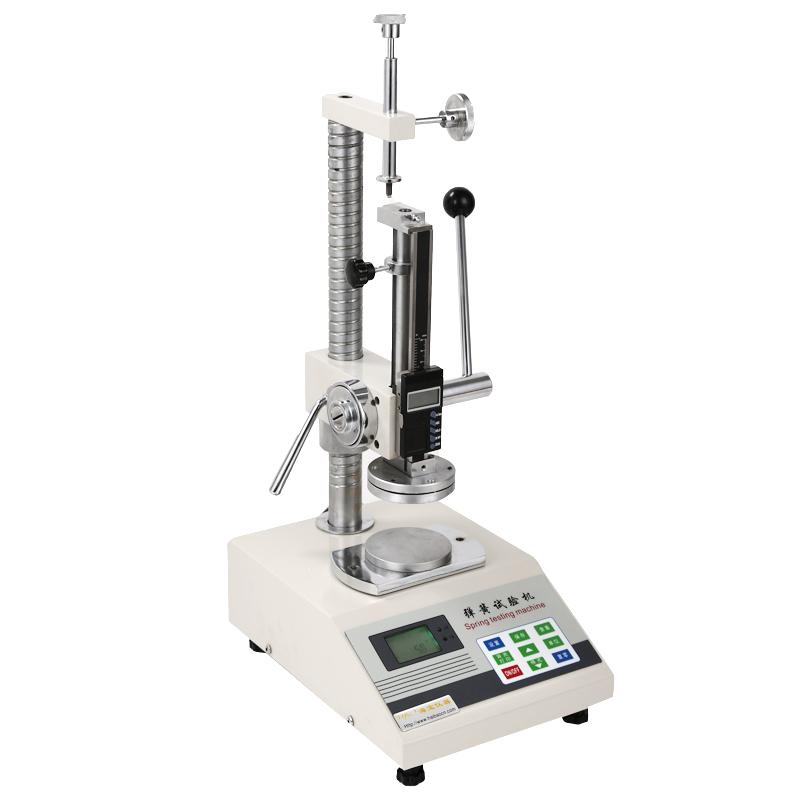

HT-1000P spring tensile and compression testing machine is a special testing instrument produced by HBO brand, which is used to test the deformation and load relationship characteristics of tensile and compression springs. This equipment is suitable for working load testing of tensile and compression springs under a certain working length.
Features
1. With the first peak hold function during the test
2. LCD screen, blue backlight
3. High Accuracy High resolution, high sampling speed
4. The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high and low)
5. Store 200 sets of test data and automatically calculate the average value of the stored data, MAX Maximum, MIN Minimum
6. Three units N, kgf, lbf are automatically converted
7. Peak hold, hold time can be set (0~ 99 seconds)
8. Automatic shutdown without operation (time freely set 0-99 minutes)
9. Serial communication (can be conveniently configured as USB communication), computer display Linear dispersion, force table and other display methods and process data: such as printing, statistical analysis, etc
10. Optional installation of micro printers
Principle
The testing machine obtains the characteristic parameters of the spring by measuring the deformation and load relationship of the spring during stretching or compression. The device uses High Accuracy Sensor to collect data, displays the test results through LCD, and has data storage and processing functions.
Applications
Tension spring test, compression spring test
Steps
1. Connect the power supply and turn it on.
2. Set test parameters (such as upper and lower limit alarm values, peak hold time, etc.)
3. Install the spring to be tested
4. Start the test, and the equipment automatically records the deformation and load data
5. View the test results and choose to store or print the data
6. Shut down after the test is completed
Notice
• Please read the instructions carefully before use
• Ensure that the equipment is used within the rated load range
• Regularly calibrate equipment to ensure test accuracy
• Avoid use in humid and dusty environments
• Make sure the spring is firmly installed during testing
• Please shut down the equipment in time when it is not in use
