Overview

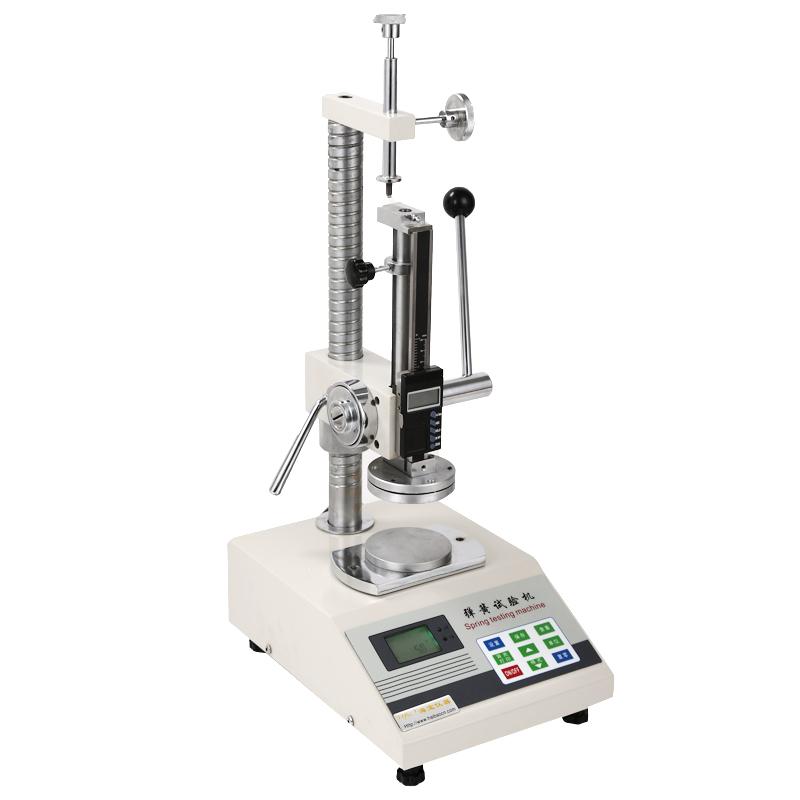

HT-2000P spring tensile and compression testing machine is a special testing equipment produced by HBO, which is used to test the deformation and load relationship characteristics of tensile and compression springs. The instrument is suitable for working load testing of tensile and compression springs under a certain working length.
Features
1. With the first peak hold function during the test
2. LCD screen, blue backlight
3. High Accuracy High resolution, high sampling speed
4. The upper and lower limit alarm values can be set, sound and light alarm, level signal output (can be set high and low)
5. Store 200 sets of test data and automatically calculate the average value of the stored data, MAX Maximum, MIN Minimum
6. Three units N, kgf, lbf are automatically converted
7. Peak hold, hold time can be set (0~ 99 seconds)
8. Automatic shutdown without operation (time freely set 0-99 minutes)
9. Serial communication (can be conveniently configured as USB communication), computer display Linear dispersion, force table and other display methods and process data: such as printing, statistical analysis, etc
10. Optional installation of micro printers
Principle
The testing machine uses High Accuracy Sensor to collect data by measuring the deformation and load relationship of the spring during stretching or compression, and displays the test results in real time through the LCD screen, and has data storage and processing functions.
Applications
Tension spring test, compression spring test
Steps
1. Install the spring on the testing machine
2. Set the upper and lower limit alarm values
3. Select the test unit (N, kgf, or lbf)
4. Start the test, and the instrument automatically records the deformation and load relationship
5. Review peak hold data after the test is complete
6. Can be connected to the computer through serial communication for data processing
Notice
• Ensure that the free length of the spring does not exceed 150mm
• Check whether the diameter of the pressure plate fits the tested spring before the test
• Note that the effective Travel does not exceed 135mm
• The maximum pressure space does not exceed 430mm
• The maximum pull space does not exceed 280mm
Periodically calibrate instruments to ensure +/- 0.5% accuracy
