Overview

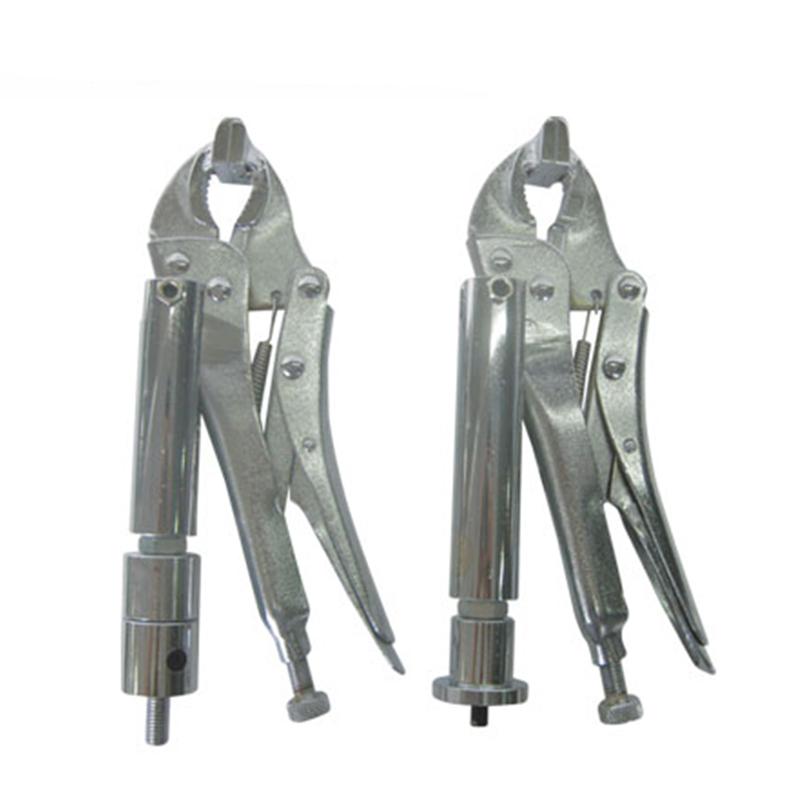

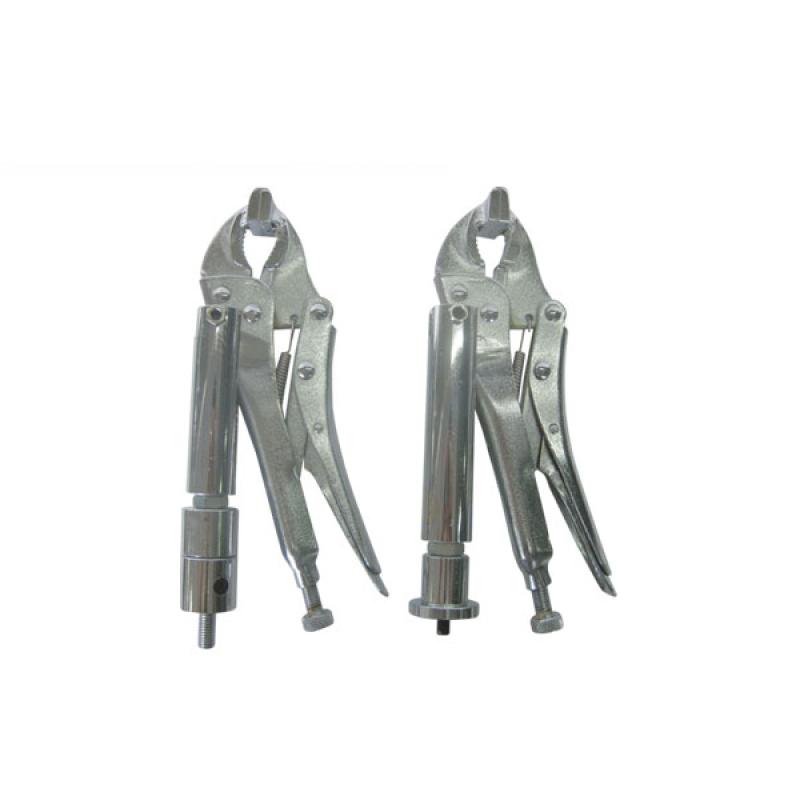

The HJJ series Force Gauge fixture is a fixture produced by HBO for supporting the Force Gauge test stand test. When the Force Gauge is assembled on the test stand for tensile testing, the fixture needs to be used to assist the test, and different types of Force Gauge fixtures have different application ranges.
Features
1. Designed for Force Gauge Test Benches
2. Serial products, routinely available in fifteen different models (HJJ-01~ HJJ-15)
3. Suitable for multi-material testing
Principle
The fixture fixates the tested sample through a mechanical structure, and cooperates with the Force Gauge test bench for tensile testing to ensure that the sample is stably fixed during the test process and accurate test data is obtained.
Applications
Tape, leather, clothing, rubber, electrical components, paper, sole rubber, button fixing parts strength testing, button tension testing
Standards
The information does not mention
Steps
1. Select the appropriate fixture model
2. Install the fixture onto the Force Gauge test bench
3. Fix the tested sample in the fixture
4. Perform tensile test operation
Notice
• Select the appropriate fixture model according to the test material
• Ensure that the fixture is firmly and reliably installed
• Check whether the fixture is in good condition before testing
• Do not exceed the maximum measurement value of the fixture
