Overview

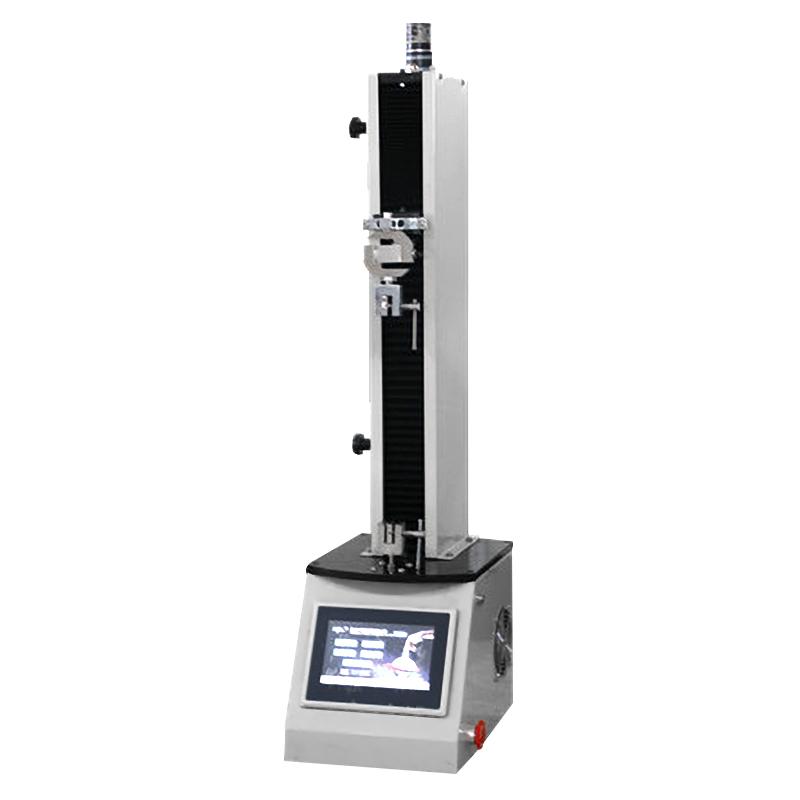

HBO HDE-S-1K new single column vertical machine is designed for HF series and HG series supporting High Accuracy load test bench. This product adopts large torque stepper motor, High Accuracy encoder, large touch screen, built-in double column structure, with good stability, wide application range, beautiful appearance, easy to use, and has a series of functions such as speed, displacement controllable, manual (point movement), automatic, automatic control of the number of movements, and in-place delay.
Features
1. High Accuracy, High resolution, High stability
2. High Torque Stepper Motor, High Accuracy Encoder
3. Large 7-inch touch LCD screen, friendly human-machine interaction interface, simple and easy to operate
4. The running speed can be set, and the settings are wide, which can adapt to various test speed requirements (speed controllable).
5. The running distance can be set. After running to the set position, it can be delayed, reversed, and stopped immediately (displacement controllable).
6. Display the displacement amount, running speed, and display the moving direction in real time (positive + up, negative down -)
7. Provide automatic counting, automatic timing, expansion rate testing, fully automatic programming, and various test modes
8. In the fully automatic programming mode, 5 different test shifts and 5 different test speeds can be customized, making it convenient to complete the test quickly
9. Force holding function: to the specified position or set the force value, the holding time can be freely set (Force Gauge is required)
10. Set force value round-trip function: set force value round-trip movement, force value setting, holding time, and number of movements can be freely set (Force Gauge is required)
11. Pull and break and stop function: After the force on the tested object disappears, it will stop immediately (Force Gauge is required)
Principle
This product adopts electric loading mode, driven by high-torque stepper motor, and cooperates with High Accuracy encoder to achieve accurate displacement and speed control. The system performs human-machine interaction through a large touch screen, which can set parameters such as running speed, displacement, test mode, etc., and realize testing functions such as push-pull load, insertion force, and destruction test.
Applications
Rubber plastics, Light industry Spinning & weaving, Building doors and windows, Composites, Wires and cables, Auto parts, Power machinery, Scientific research institutions
Steps
1. Connect AC 220V 50/60HZ power supply
2. Set test parameters (speed, displacement, test mode, etc.) through a large 7-inch touch LCD screen
3. Select manual (pointing) or automatic mode
4. Start the test and observe the displacement, running speed and moving direction in real time
5. After the test is completed, the system can be delayed, reversed, or stopped immediately according to the settings
Notice
• Force retention function requires optional Force Gauge
• Set force value Roundtrip motion function requires optional Force Gauge
• Pull and break and stop function requires optional Force Gauge
• Please make sure the power supply is AC 220V 50/60HZ before use
• Note that the movement displacement error is 0.1mm.
• Speed setting error is +/- 1mm at 10-200mm/min and +/- 0.5% at 200-800mm/min
