YONGLIDA QFD electric paint film adhesion Tester, automatic circle trajectory method

Name: YONGLIDA QFD electric paint film adhesion Tester, automatic circle trajectory method
Brand: YongLiDa
SKU: NB002745
Price: 369.0 USD
Availability: InStock

$ 369.00Ex works

Rotation speed 80r/min, Working Travel 80mm, in line with international standards, to ensure accurate and reliable film adhesion assessment.

Model

Get Quote

Category : Cross-Cut Adhesion Tester

Brand : YongLiDa

SKU : NB002745

Service :The delivery and service By NBCLab.Com

Overview

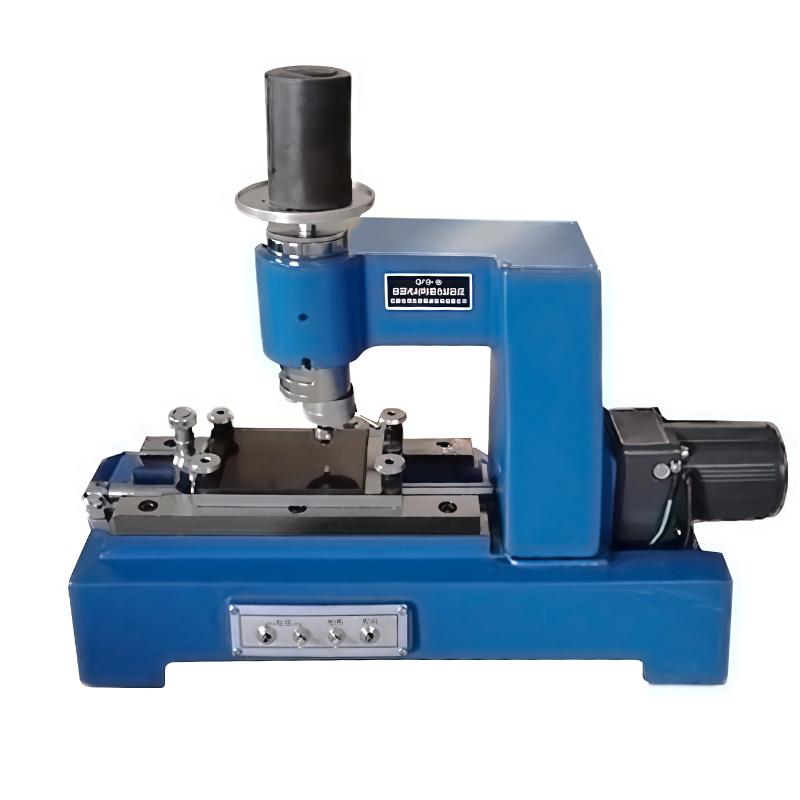

YONGLIDA QFD electric paint film adhesion tester is an automatic paint film adhesion tester designed and developed according to the provisions of GB/T1720 and JISK 6894 standards. The motor Rotation speed of the instrument is 80r/min and Working Travel is 80mm.

Features

1. Adopt electric drive mode to achieve automated testing 2. The drawing diameter range is 0 to 10.5mm, suitable for different testing requirements 3. Working Travel up to 80mm, Wide Test Range 4. Nominal Mass adjustable range 100~ 1000g, to meet a variety of test conditions 5. The tracing pitch is 1.5mm, with high accuracy 6. Dimensions compact (330 * 160 * 220mm), easy to operate and store 7. Rotation speed of the motor is stable at 80rpm to ensure test conformity

Principle

The tester is driven by a motor and uses the round track method to measure the adhesion performance of the paint film. The instrument automatically completes the test process according to the standard regulations, and tests the paint film through the round track to evaluate its adhesion performance.

Standards

GB/T1720、JISK6894

Steps

1. Prepare the test sample and fix it 2. Set the drawing diameter and Nominal Mass according to the test requirements 3. Start the motor and the instrument automatically performs a round track test 4. Observe and record test results 5. Turn off the power after the test is completed

Meet the standard
GB/T1720-88、JISK6894
trace diameter
0~10.5mm
trace pitch
1.5mm
Workbench Travel
80mm
Rotation speed of motor
80r/min
Nominal Mass
100-1000g（500g*1、200g*2、100g*1）
Dimension
330*160*220mm
Test substrate Size
120*50mm
