Overview

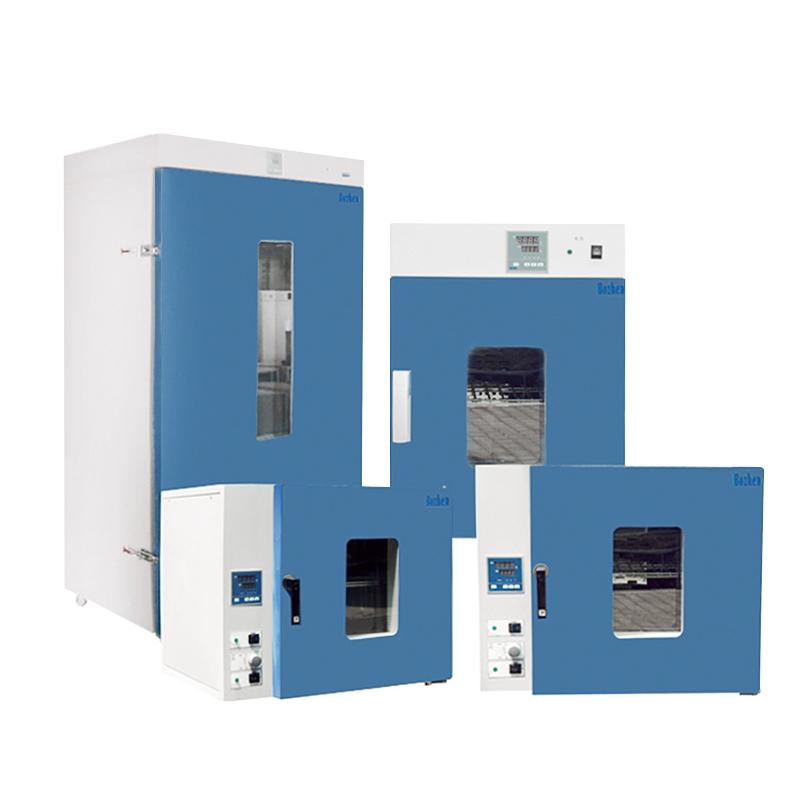

BOZHEN DHG-9030A vertical blast drying oven adopts professional numerical control processing equipment to produce, for industrial and mining enterprises, laboratories, R & D institutions such as drying, baking wax melting, sterilizing use.
Features
1. The inside of the box is made of brushed stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance
2. Adopt a microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (optional intelligent LCD program temperature controller)
3, the hot air circulation system is composed of fans and suitable air ducts that can operate continuously at high temperatures, and the temperature in the working room is uniform
4. Independent temperature limit alarm, automatic interruption when the temperature exceeds the limit to ensure the safe conduct of the experiment without accidents (optional)
5. With RS485 interface, it can be connected to a recorder and a computer, capable of recording changes in temperature and humidity parameters (optional).
Principle
The temperature is precisely controlled by the microcomputer temperature controller, and the hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct, so that the temperature in the working room is evenly distributed, and the functions of drying, baking, melting wax, and sterilizing are realized.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Turn on the power supply
2. Set the required temperature
3. Set the timing time (1~ 9999min)
4. Start the device and start working
5. Turn off the power after the work is completed
Notice
• Equipment should be used within the operating Ambient Temperature range of 5~ 40 ° C
• When the temperature exceeds the limit, the device will automatically interrupt to ensure safety
• Before use, please confirm that the Power frequency meets the requirements (220V 50HZ)
• Regularly check the operating status of the equipment
• Optional functions need to be configured according to actual needs
