Overview

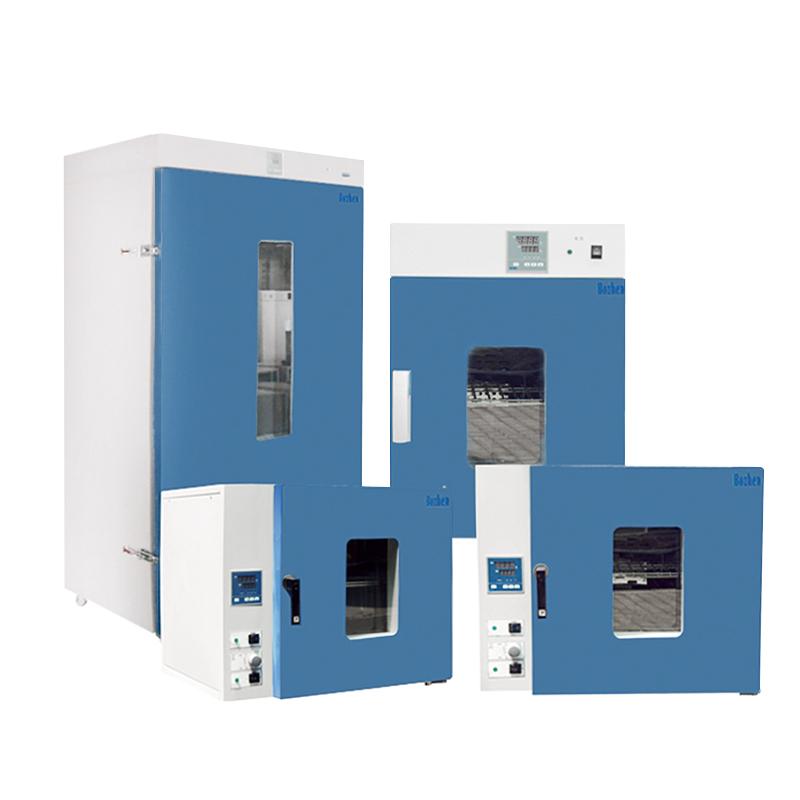

BOZHEN DHG-9620A vertical blast drying oven adopts professional numerical control processing equipment to produce, for industrial and mining enterprises, laboratories, R & D institutions such as drying, baking wax melting, sterilizing effect.
Features
1. The inside of the box is made of brushed stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance
2. Adopt a microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (optional intelligent LCD program temperature controller)
3, the hot air circulation system is composed of fans and suitable air ducts that can operate continuously at high temperatures, and the temperature in the working room is uniform
4. Independent temperature limit alarm, automatic interruption when the temperature exceeds the limit to ensure the safe conduct of the experiment without accidents (optional)
5. With RS485 interface, it can be connected to a recorder and a computer, capable of recording changes in temperature and humidity parameters (optional).
Principle
Through the hot air circulation system, a uniform temperature field is formed inside the studio, and the temperature is precisely controlled by a microcomputer temperature controller to achieve process requirements such as drying and baking.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Turn on the power supply
2. Set the required temperature
3. Set the timing time (1~ 9999min)
4. Start the device and start working
5. Turn off the power after the work is completed
Notice
• Equipment Ambient Temperature should be kept within the range of 5~ 40 ℃
• Power frequency is 380V 50HZ before use
• Note that the temperature control range is between RT + 10 and 250 ° C
• Regularly check the operating status of the equipment
• Optional functions need to be configured according to actual needs
