Overview

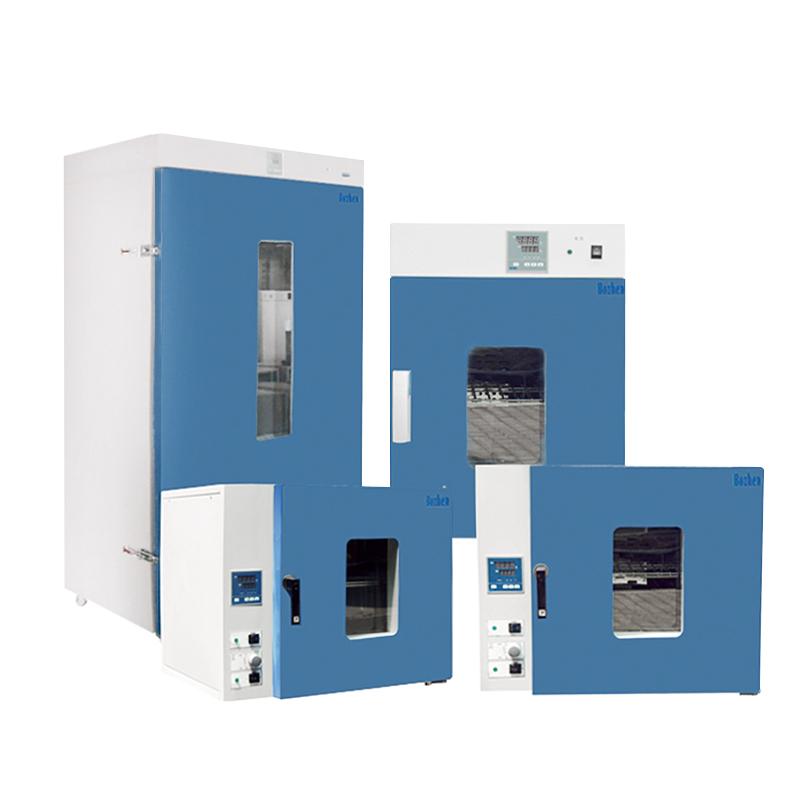

BOZHEN DHG-9245A vertical blast drying oven adopts professional numerical control processing equipment to produce, for industrial and mining enterprises, laboratories, R & D institutions such as drying, baking wax melting, sterilizing effect.
Features
1. The inside of the box is made of brushed stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance.
2. Adopt a microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (optional intelligent LCD program temperature controller).
3. The hot air circulation system is composed of fans and suitable air ducts that can operate continuously at high temperatures, and the temperature in the working room is uniform.
4. Independent temperature limit alarm, automatic interruption when the temperature exceeds the limit, ensuring the safe conduct of the experiment without accidents (optional).
5. With RS485 interface, it can be connected to a recorder and a computer, capable of recording changes in temperature and humidity parameters (optional).
Principle
The drying oven achieves uniform temperature distribution through a hot air circulation system, which consists of a fan that can operate continuously at high temperature and a suitable air duct. Microcomputer temperature controller is used for precise temperature control, with timing function to ensure accurate and reliable temperature control.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Turn on the power supply and set the required temperature and timing time.
2. Start the equipment and the hot air circulation system starts to work.
3. Monitor temperature changes to ensure operation within the set range.
4. After reaching the timed time, the device automatically stops or shuts down manually.
Notice
• Power frequency meets requirements (220V 50HZ) before use.
• Ambient Temperature should be kept in the range of 5~ 40 ℃.
• Avoid exceeding the control temperature range (RT + 10~ 300 ℃) to prevent equipment damage.
• Regularly check the hot air circulation system to ensure that the fan and air duct work normally.
• Optional features such as independent temperature limit alarm and RS485 interface need to be configured and used on demand.
• Pay attention to safety during operation to prevent accidents.
