Overview

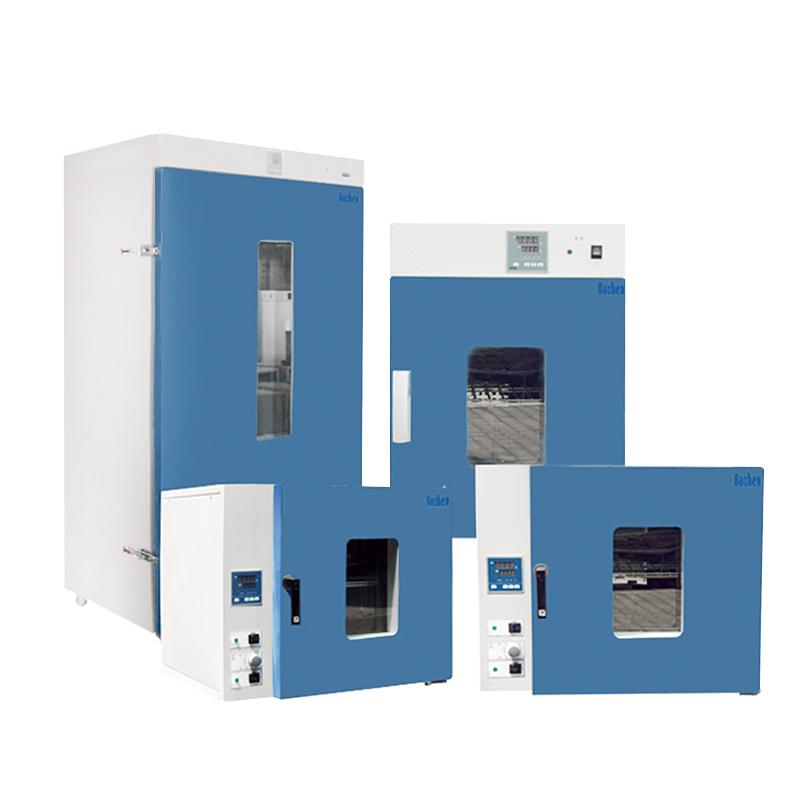

BOZHEN DHG-9645A vertical blast drying oven adopts professional numerical control processing equipment to produce, for industrial and mining enterprises, laboratories, R & D institutions for drying, baking wax melting, sterilizing effect.
Features
1. The inside of the box is made of brushed stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance
2. Adopt a microcomputer temperature controller with temperature control protection and digital display, with timing function, accurate and reliable temperature control (optional intelligent LCD program temperature controller)
3, the hot air circulation system is composed of fans and suitable air ducts that can operate continuously at high temperatures, and the temperature in the working room is uniform
4. Independent temperature limit alarm, automatic interruption when the temperature exceeds the limit to ensure the safe conduct of the experiment without accidents (optional)
5. With RS485 interface, it can be connected to a recorder and a computer, capable of recording changes in temperature and humidity parameters (optional).
Principle
The temperature is precisely controlled by a microcomputer temperature controller, and the hot air circulation system is composed of a high-temperature fan and an air duct, so that the temperature in the working room is evenly distributed, and the functions of drying and baking are realized.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect the 380V 50HZ power supply
2. Set the required temperature (RT + 10~ 300 ℃)
3. Set the timing time (1~ 9999min)
4. Start the device and start working
5. Turn off the power after the work is completed
Notice
• Ambient Temperature should be kept within 5~ 40 ℃
• When the temperature exceeds the limit, the device will automatically interrupt to ensure safety
• Power frequency 380V 50HZ before use
• Regularly check the operating status of the equipment
• Optional functions need to be configured separately
