Overview

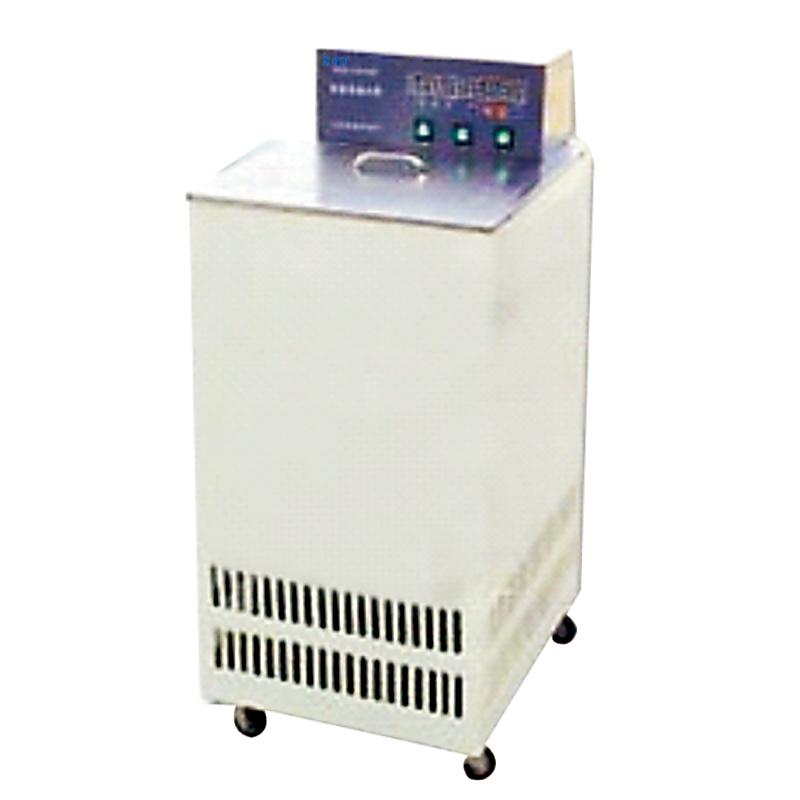

BOZHEN BZ-202 low temperature thermostatic water tank is a thermostatic equipment with a temperature range of -20~ 95 ° C. It is widely used in research departments such as petroleum, chemical industry, electronic instrumentation, physics, chemistry, bioengineering, life science, light industrial food, physical property testing and chemical analysis, colleges and universities, enterprises Quality control and production departments. The equipment provides a hot and cold controlled, uniform and constant temperature field source for users to work, perform constant temperature tests or tests on specimens or products produced, and can also be used as a heat source or cold source for direct heating or cooling and auxiliary heating or cooling.
Features
1. Wide temperature range, covering -20~ 95 ℃.
2. High temperature accuracy, up to +/- 0.05 ℃.
3. Tank volume is 7.5L, size is 250 * 200 * 150mm, opening dimensions 200 * 140mm.
4. Equipped with a circulating pump with a flow rate of 6L/min to ensure temperature uniformity.
5. The heating power is 600W, Power frequency 220V, easy to operate.
Principle
The thermostatic tank achieves precise control and uniform distribution of temperature in the Tank through a built-in heating and cooling system combined with a circulation pump to force liquid circulation. After the user sets the target temperature, the device automatically adjusts the heating or refrigeration power to maintain a constant temperature environment and provide a stable heat or cold source for the sample.
Applications
Petroleum, chemical industry, electronic instrumentation, physics, chemistry, biological engineering, life science, light industry food, physical property testing, chemical analysis, institutions of higher learning, enterprise Quality control, production department
Steps
Connect the device to a 220V power supply.
2. Turn on the power switch and set the required temperature.
3. Start the circulating pump to ensure uniform circulation of the liquid.
4. Wait for the device to reach the set temperature and stabilize.
5. Place the sample in the Tank for testing or testing.
6. After use, turn off the power and clean the equipment.
Notice
• Power frequency is 220V before use to avoid overload.
• Pay attention to the temperature range during operation and avoid exceeding -20~ 95 ℃.
• Regularly check the working status of the circulating pump to prevent blockage.
• When cleaning the equipment, turn off the power first and ensure that no liquid remains in the tank.
• Avoid use in humid environments in case of electrical failure.
