Overview

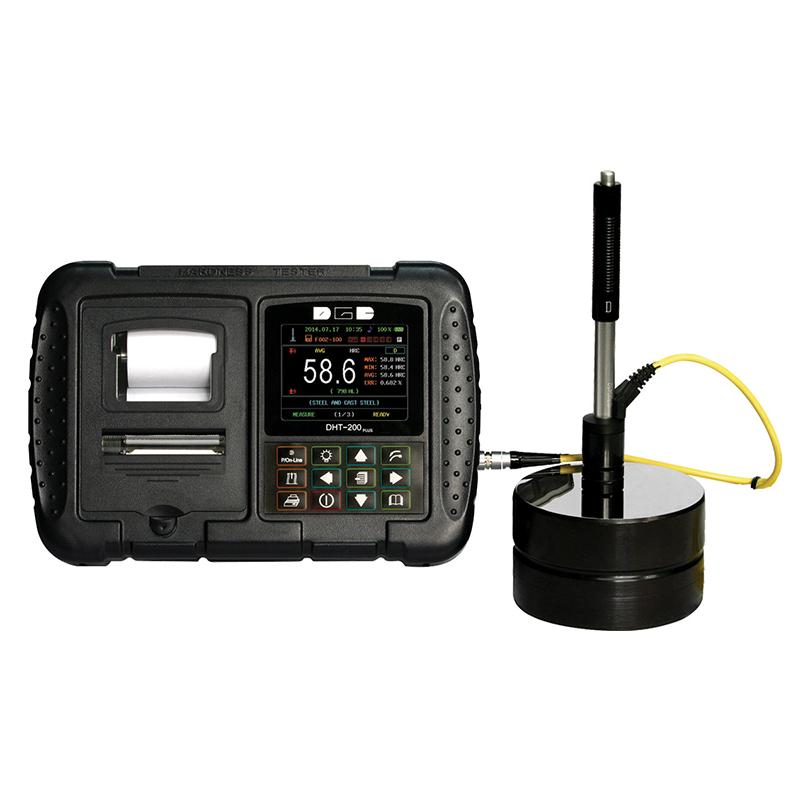

DGC DHT-200Dplus Leeb hardness tester is a High Accuracy Portable hardness testing instrument, using color screen display and Built-in Printer, the measurement range covers 174-900HL, supports a variety of hardness conversion and full angle measurement.
Features
1.320 × 240 color screen display
2. measurement range 174-900HL
3. High Accuracy and indication repeability +/- 0.5% hardness value = 800HL
4. Meet ASTMA956 standards
5. Built-in Printer
6. Standard configuration D type Sensor, optional DC, DL, D + 15, C and G type Sensor
7. Based on Richter hardness, it can be converted into Rockwell, Brinell, Vickers, Shaw and other hardness systems
8. Full angle measurement
9. Can store 10,000 averages in 100 folders
10. Data transmission does not require software, or output through a Bluetooth printer
11. Multi-language support
Principle
Based on the principle of Leeb hardness, the impact force is applied to the surface of the material through the impact device, and the ratio of the rebound speed of the impact body to the impact speed is measured to calculate the hardness value, and the result can be converted into the common hardness formula of Miscellaneous.
Applications
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, brass, bronze, copper
Steps
1. Choose the Right Impact Device
2. Ensure that the specimen meets the minimum Film thickness requirements
3. Keep the surface roughness ≤ Ra10
4. Perform measurements at test points that meet radius and edge distance requirements
5. Read the display results
6. You can choose to store data or output it through the printer
Notice
· Specimen minimum test Film thickness: the thinnest 3mm or thicker (G-type Sensor requires Film thickness of 10mm)
· weight requirement: 5kg or more (2~ 5kg needs to be stably supported, < 2kg workpiece needs to be coupled)
· Average surface asperity of specimen: ≤ Ra10
· Test point requirements: minimum radius (concave/convex) 30mm or more (< 30mm requires support ring), 5mm or more from the edge of the workpiece
· Allowable operating temperature: -20~ + 50 ℃
Power Supply: Use 4 AA batteries or 4 1.25V rechargeable batteries
