Overview

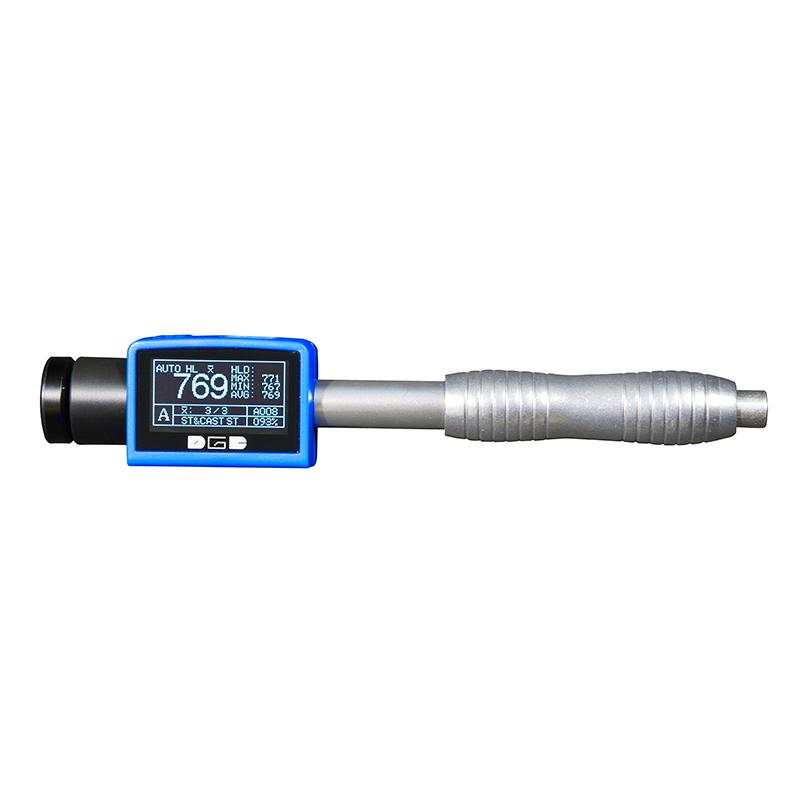

DGC DHT-400Dplus Leeb hardness tester is a Portable hardness measuring instrument with OLED display technology, measurement range 174-900HL, support for a variety of hardness format conversion and full angle automatic measurement.
Features
1. OLED display 128 * 64
2. measurement range 174-900HL
3. High Accuracy and indication repeability +/- 0.5% hardness value = 800HL
4. Meet the hardness ASTMA956 standard
5. Connect with the mobile phone or tablet through the APP software, and the data can be uploaded to the cloud
6. Standard configuration D type Sensor, optional DC, DL, D + 15, C and G type Sensor
7. Based on Richter hardness, can be converted to Rockwell, Brinell, Vickers, Xiao and other hardness
8. Full angle measurement, automatic recognition of measurement direction and angle, no need to set
9. Storage depends on the storage space of the user's mobile phone and tablet
10. Multilingual and multinational hardness conversion standards
Principle
Based on the principle of Leeb hardness, the material surface is impacted by the Impact device, and the ratio of the rebound speed to the Impact speed is measured to calculate the hardness value, and it is automatically converted into a variety of hardness formulas.
Applications
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, brass, bronze, copper
Steps
1. Connect the APP software to the mobile phone or tablet.
2. Select the appropriate Impact Device and install it
3. Align the hardness gauge on the surface of the specimen for measurement
4. Automatic recognition of measurement direction and angle
5. Data is stored or uploaded to the cloud through the APP
Notice
· Specimen minimum test Film thickness: the thinnest 3mm or thicker (G-type Sensor requires Film thickness of 10mm)
· weight requirement: 5kg or more (2~ 5kg needs to be stably supported, < 2kg workpiece needs to be coupled)
· Average surface asperity of specimen: ≤ Ra10
Test point requirement 1: radius (concave/convex) minimum 30mm or more
· Test point requirement 2: (< 30mm requires support ring)
Test point requirement 3:5mm or more from the edge of the workpiece
· Allowable operating temperature: -20~ + 50 ℃
