Overview

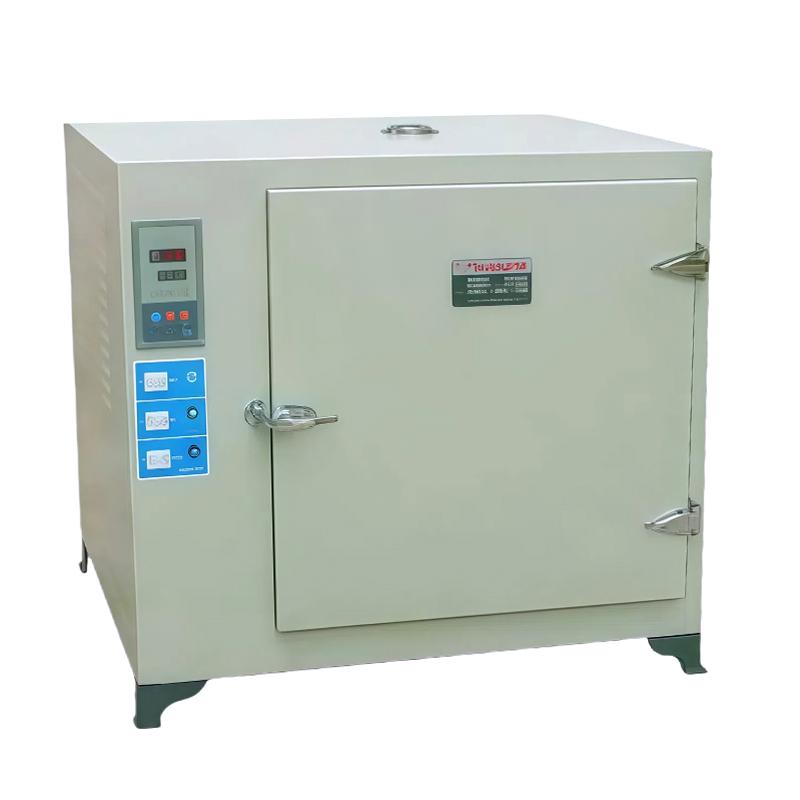

766 series Far infrared fast drying oven is a new type of automatic thermostatic drying oven with heating structure. It adopts Far infrared radiation heating drying technology and is equipped with a thermistor-controlled thermometer. It has the advantages of fast, low consumption and convenient adjustment, and has broad prospects in customer use.
Features
1. Far infrared radiation heating drying technology; 2. Equipped with thermistor control thermometer; 3. Has the advantages of fast, low consumption, easy adjustment; 4. Automatic thermostatic control; 5. Broad use prospects.
Principle
This series drying oven heating element is heated by a nickel-complex aluminum heating wire in a silicon carbide far infrared radiation plate coated with metal oxide to generate a composite wavelength far infrared ray [above 2-15 microns]. When absorbed by the heated object, it is directly converted into heat energy, so as to achieve the purpose of rapid drying.
Applications
Laboratories in the fields of industry, agriculture, electronics, technology, and scientific research
Steps
1. Connect Power frequency 220V; 2. Set Temperature range RT +~ 300 ℃; 3. Put the product to be dried or test sample into the studio; 4. Start the equipment for heating drying; 5. Monitor Temperature Fluctuation +/- 2 ℃ and temperature resolution 1 ℃; 6. Turn off the equipment after drying is completed.
Notice
• Make sure the Power frequency is 220V; • Temperature range does not exceed 300 ℃; • Note that the Temperature Fluctuation is +/- 2 ℃; • Check the Inner chamber material is 304 stainless steel before use; • Input power is 3.2Kw to avoid overload; • Regular maintenance of heating elements and temperature control system.
