Overview

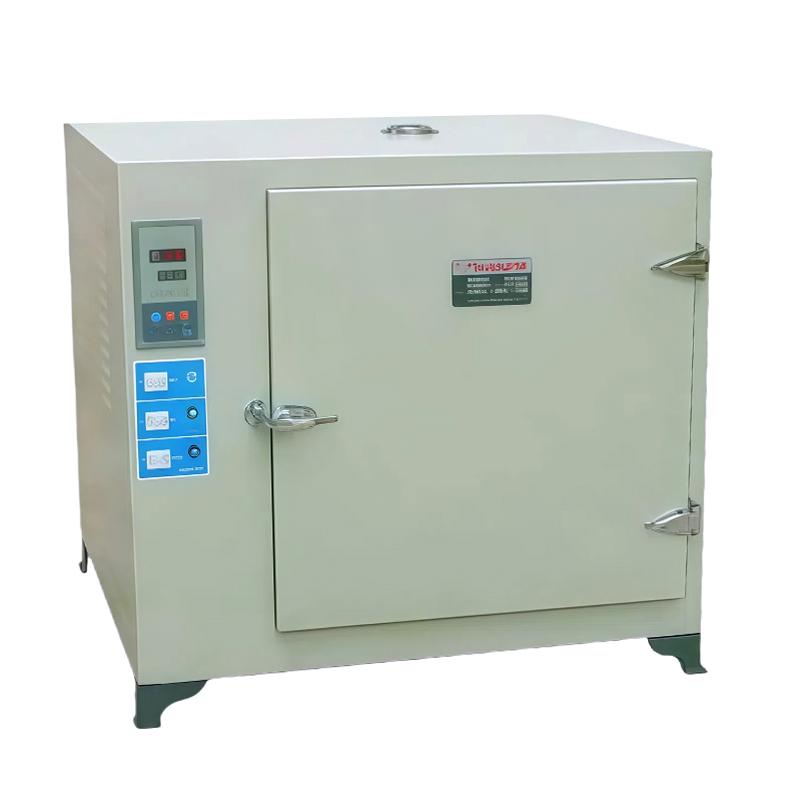

766 series Far infrared fast drying oven is a new type of automatic thermostatic drying oven with heating structure. It adopts Far infrared radiation heating drying technology and is equipped with a thermistor-controlled thermometer. It has the advantages of fast, low consumption and convenient adjustment. It has broad prospects in customer use.
Features
1. Far infrared radiation heating drying technology to achieve rapid drying
2. Equipped with a thermistor-controlled thermometer for accurate temperature control
3. It has the advantages of speed, low consumption, and convenient adjustment
4. The studio is made of 304 stainless steel, which is corrosion-resistant
5. Automatic thermostatic control, easy to operate
Principle
Drying oven heating element is heated by a nickel-complex aluminum heating wire channeling silicon carbide metal oxide coated Far infrared radiation plate, generating a composite wavelength Far infrared [Far infrared above 2-15 microns], when the heated object is directly converted into heat when absorbed, so as to achieve the purpose of rapid drying.
Applications
Laboratories in the fields of industry, agriculture, electronics, technology, and scientific research
Steps
1. Power frequency 220V
2. Temperature range RT +~ 300 ℃
3. Place items to be dried in the studio
4. Start the equipment to start heating and drying
5. Monitoring Temperature Fluctuation +/- 2 ℃
6. Turn off the power after drying
Notice
• Power frequency is 220V before use
• Temperature range must not exceed RT +~ 300 ℃
• Temperature Fluctuation is +/- 2 ℃, need to pay attention to monitoring when using
• Inner chamber dimensions are 750 * 600 * 600mm, please do not overload
• The input power is 4Kw to ensure that the circuit load capacity is sufficient
Equipment dimensions of 910 * 840 * 740mm, need to reserve enough installation space
