Overview

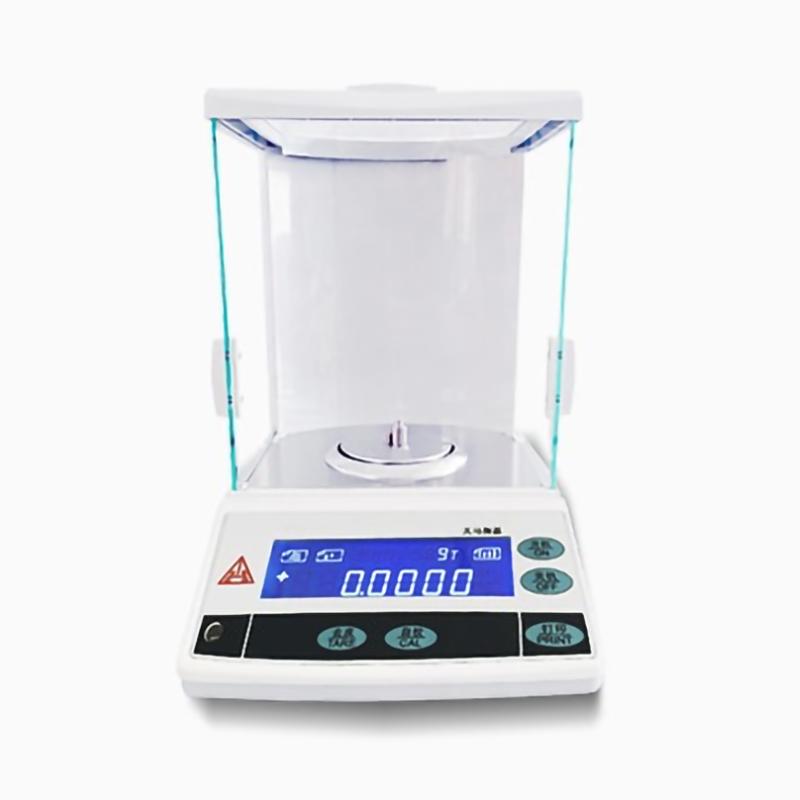

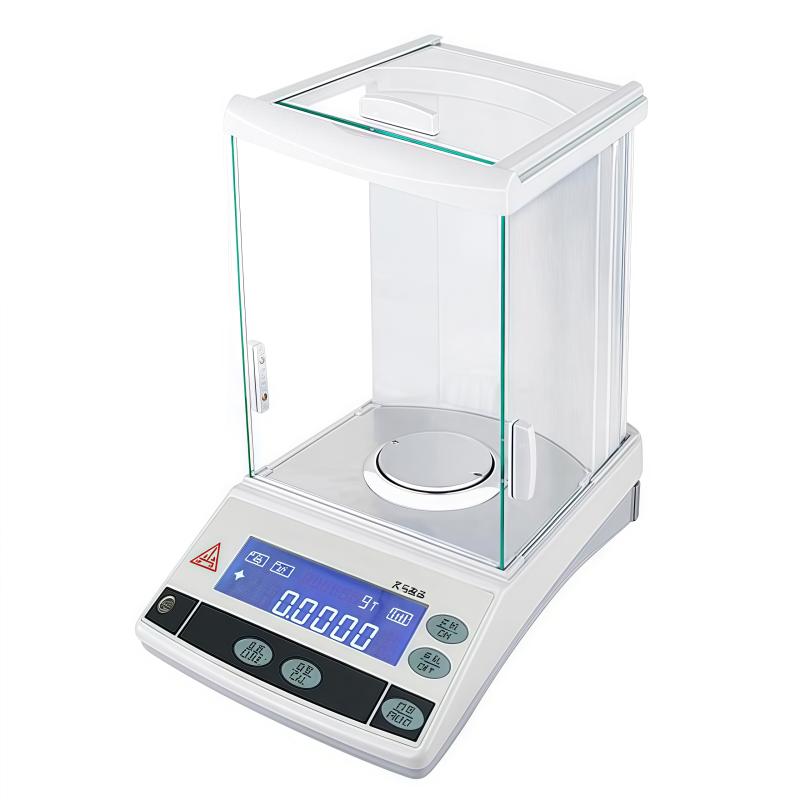

FA3204B Multifunctional Electronic Balance is a new generation product of Tianma brand FA-B series. It adopts High Accuracy Electromagnetic Force equilibrating Sensor, which has the characteristics of high accuracy of measurement results, fast Response speed and low failure rate.
Features
1. Weighing speed is fast, several times faster than the general mechanical Balance and adjustable speed;
2. The operation is simple and easy to learn, supports mass unit conversion, and can arbitrarily choose a variety of internationally commonly used mass units;
3. Highly intelligent, peeling, clearing, overloading, underloading display and fault alarm within the full range;
4. It has various functions such as counting.
5. Built-in RS-232 interface, which can be connected to external devices such as printers and computers.
6. Fully automatic built-in weight calibrating, easy to use, simple operation, and all the functions of FA series.
Principle
High Accuracy Electromagnetic Force equilibrating Sensor is used for measurement, and fast and accurate weighing is realized through the principle of electromagnetic force and object gravity equilibrating.
Applications
Laboratory, industrial weighing, quality control, education and research, pharmaceutical, food testing
Standards
Class I accuracy class
Steps
1. Connect the Power Adapter to a 220V 50Hz power supply;
2. Boot preheating to ensure that the operating temperature is within the range of 17.5 ° C to 22.5 ° C;
3. Place the item to be weighed on the pan;
4. Select mass units, peel or clear operations as needed;
5. Read the measurement results after stabilization;
6. Optional connection to external devices such as printers or computers.
Notice
• Ensure that the Working Ambient Temperature is between 17.5 ° C and 22.5 ° C, and the temperature fluctuation does not exceed 1 ° C/h;
• Keep the relative humidity at 50%~ 75% RH;
• Avoid overloading, Capacity is 320g;
• The minimum weighing value is 10mg, below this value may affect the accuracy;
• Clean the pan in time after use to prevent contamination;
Periodically calibrated to ensure accuracy;
• Power Adapter output is DC9V-2.2A, do not use mismatched power supply.
