Overview

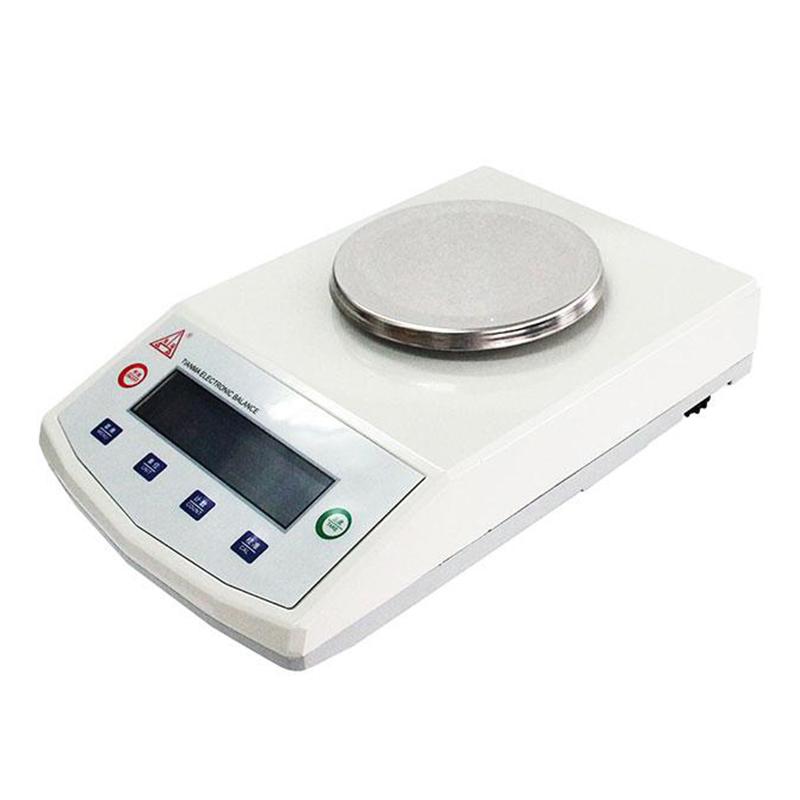

Tianma TD6002 Electronic Balance is a precision weighing instrument with a weighing range of 600g, a minimum weighing value of 0.01g, and an accuracy class III. It adopts strain gauge Sensor, with a stability time of ≤ 5s, an Operating Conditions of 5~ 40 ℃, 50%~ 60% RH, suitable for laboratory and industrial environments.
Features
1, with peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6, equipped with a calibrated weight
7. Strain Gauge Sensor
8, standard calibrated weight
Principle
Electronic Balance adopts strain gauge Sensor technology, which converts the tiny deformation generated by the induction weighing object into an electrical signal, and displays the weight on the LCD screen after internal processing. It has auto calibration and zero tracking functions to ensure the accuracy of weighing.
Applications
Laboratory, industrial weighing, counting applications
Standards
Accuracy class III
Steps
1. Place the Balance on a smooth surface and connect the power supply
2. Wait for the automatic clearing to complete after booting.
3. Use calibrated weight for external calibrating (optional)
4. Place the item to be weighed
5. Data can be transmitted by connecting external devices through the RS232 interface
6. Use the peeling function to remove the weight of the container
7. Select the counting mode to count item points.
Notice
• Ensure that the Working Ambient Temperature is within the range of 5~ 40 ℃
Maintain environment humidity at 50%~ 60% RH
• Check if Balance is placed horizontally before use
• Regularly calibrate with standard calibrated weight
• Avoid use in strong airflow environment
• Weighed items must not exceed 600g Capacity
• Avoid liquids entering the inside of the instrument when cleaning
