Overview

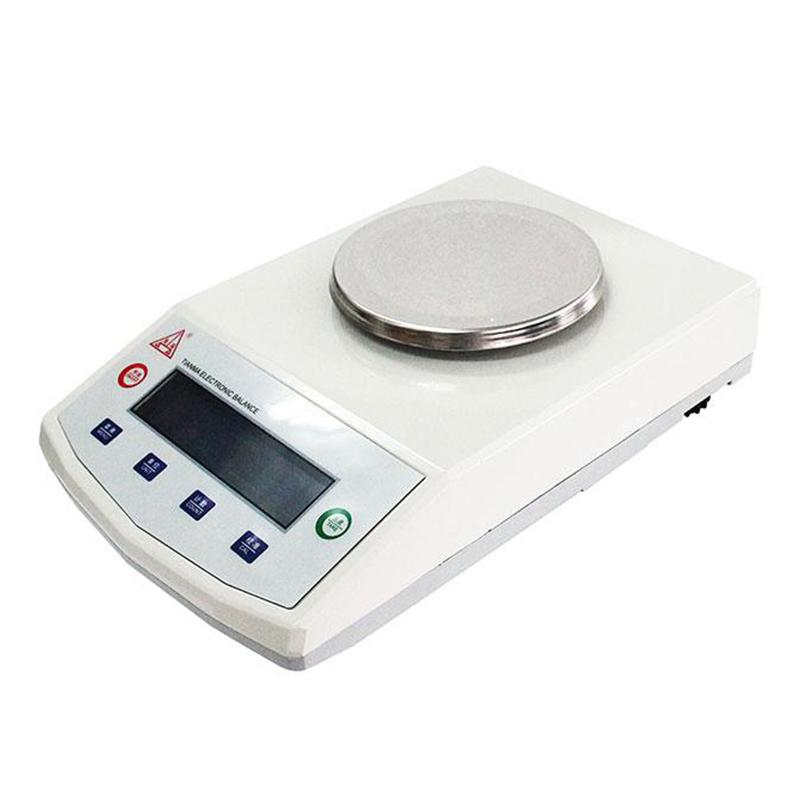

Tianma TD20002 Electronic Balance is a High Accuracy weighing device with a weighing range of 2000g, a minimum weighing value of 0.01g, and an accuracy class III. It adopts strain gauge Sensor, equipped with RS232 serial port and calibrated weight, suitable for laboratory, industrial and other environments.
Features
1. With peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display and other functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6. Equipped with a calibrated weight
7. Strain Gauge Sensor
8. Standard calibrated weight
Principle
Electronic Balance detects weight changes through strain gauge Sensor, converts the signal into an electrical signal, and displays the weighing result on the LCD screen after internal processing. It uses auto calibration and zero tracking technology to ensure weighing accuracy.
Steps
1. Place the Balance on a smooth table and turn on the power supply
2. Wait for stabilization after booting, perform auto calibration or manually calibrate using calibrated weight
3. Place the item to be weighed and read the displayed weight
4. Use peeling function to remove container weight
5. Optional counting function for item points
6. Connect external devices to transmit data through the RS232 interface
Notice
• Ambient Temperature 5~ 40 ℃, Humidity 50%~ 60% RH
• Balance stable before use, stable time ≤ 5s
• Avoid overload weighing, Capacity 2000g
• Regularly calibrate weight
• Keep the pan clean to avoid affecting accuracy
• Power frequency~ 220V +/- 10%, 50/60Hz
