Overview

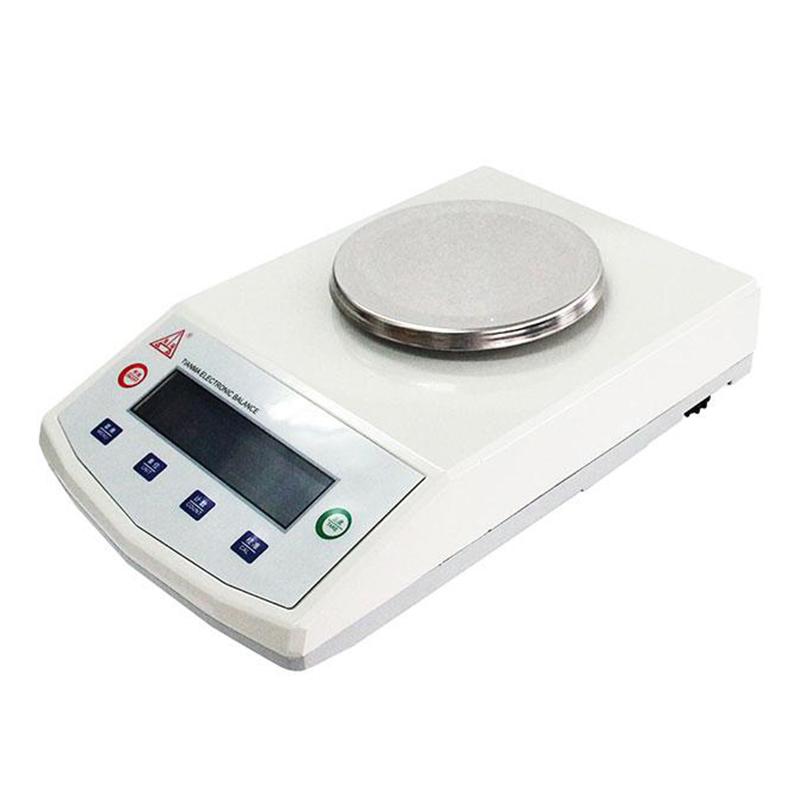

Tianma TD20001 Electronic Balance is a High Accuracy weighing device with a Capacity range of 2000g and a minimum weighing value of 0.1g. It uses strain gauge Sensor technology, the stabilization time is no more than 5 seconds, suitable for working environments of 5~ 40 ° C and 50%~ 60% RH, and is equipped with RS232 serial port for data transmission.
Features
1, with peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6, equipped with a calibrated weight
7. Strain Gauge Sensor
8, standard calibrated weight
Principle
Tianma TD20001 Electronic Balance works based on the principle of strain gauge Sensor. When an object is placed on the pan, the Sensor detects the weight change and converts it into an electrical signal, calibrates and calculates it through an internal processing circuit, and finally displays the weighing result on the LCD screen.
Applications
Laboratory, industrial weighing, counting applications, mass testing
Standards
Accuracy class: III
Steps
1. Place the Balance on a smooth surface and connect the power supply
2. Wait for stability after booting, perform auto calibration or use standard weight for external calibrating
3. Place the item to be weighed and read the LCD screen display result
4. Use the peeling function to remove the weight of the container
5. Optional use of counting function for point operation
6. Connect external devices to transmit data through the RS232 interface
Notice
• Ensure that the Working Ambient Temperature is within the range of 5~ 40 ℃
Maintain environment humidity at 50%~ 60% RH
• Must be calibrated before use
• Avoid use on vibrating or unstable surfaces
• Regularly clean the pan surface
• Power frequency~ 220V +/- 10% 50/60Hz
• Maintain calibrated weight
