Overview

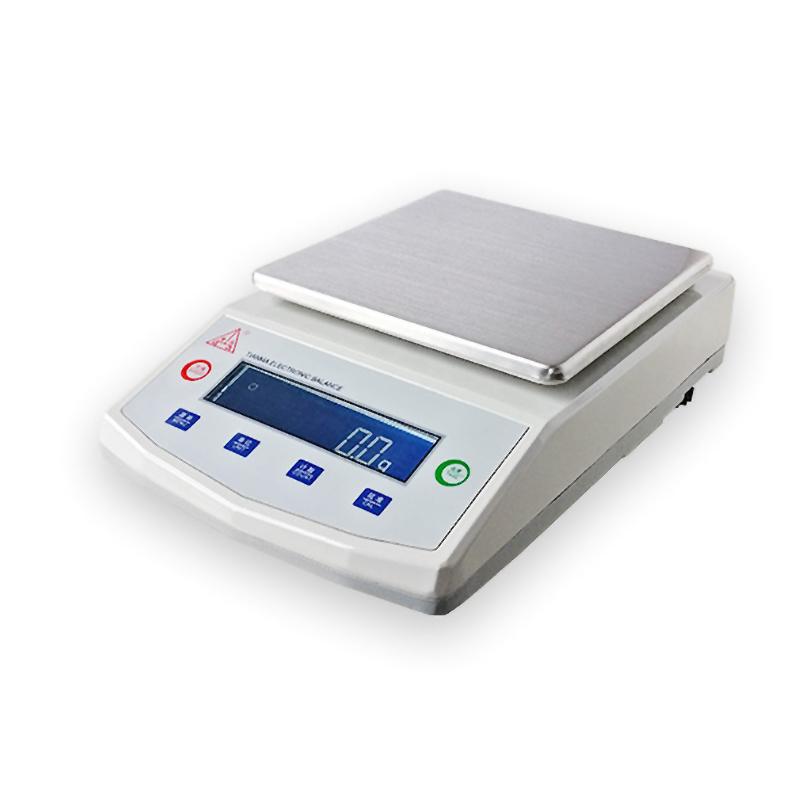

Tianma TD30001 Electronic Balance is a High Accuracy weighing device with a weighing range of 3000g and a minimum weighing value of 0.1g. It uses strain gauge Sensor technology and is suitable for a variety of weighing scenarios.
Features
1, with peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6, equipped with a calibrated weight
7. Strain Gauge Sensor
8, standard calibrated weight
Principle
Electronic Balance detects weight changes through strain gauge Sensor, converts physical signals into electrical signals, and displays weighing results on a large LCD screen after processing by internal processor, and supports auto calibration and zero tracking functions.
Applications
Laboratory, industrial weighing, mass testing, counting applications
Standards
Accuracy class: III
Steps
1. Place the Balance on a smooth table and turn on the power supply
2. Use the standard calibrated weight for external calibrating
3. Place the item to be weighed on the pan
4. Read the weighing results displayed on the LCD screen
5. Data can be transmitted by connecting external devices through the RS232 interface
Notice
• Ambient Temperature should be maintained at 5~ 40 ℃, humidity 50%~ 60% RH
• Balance level before use
• Regularly calibrate with standard calibrated weight
• Avoid overload weighing, Capacity range is 3000g
• Do not use corrosive liquids when cleaning
