Overview

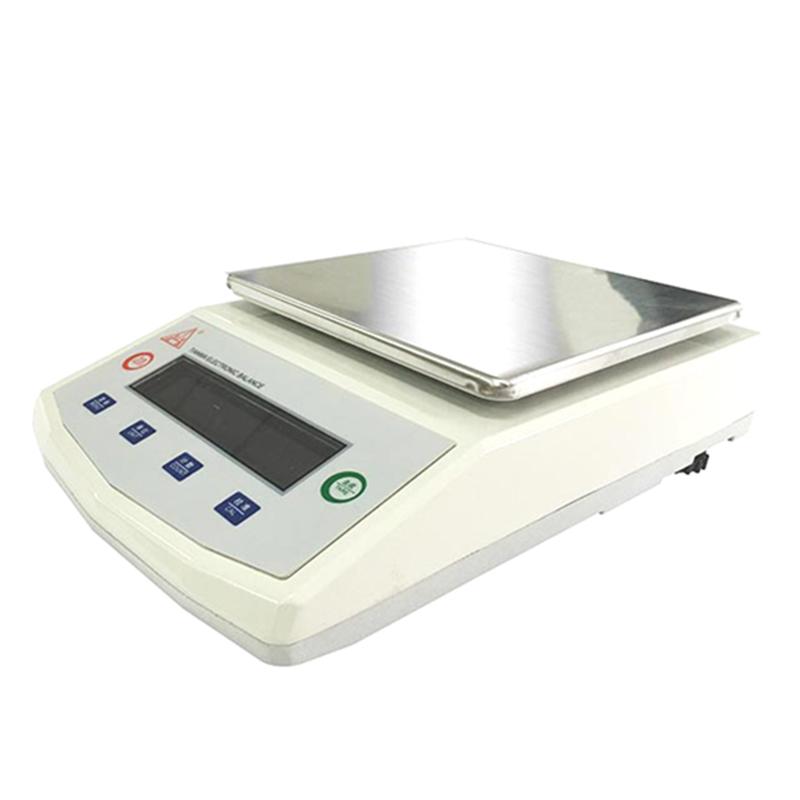

Tianma TD50002 Electronic Balance is a High Accuracy weighing device with a weighing range of 5000g and a minimum weighing value of 0.01g. It uses strain gauge Sensor technology. It is equipped with a large-screen LCD screen display and RS232 serial port, suitable for laboratory, industrial and other scenarios. Operating Conditions are 5~ 40 ° C and 50%~ 60% RH.
Features
1. With peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display and other functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6. Equipped with a calibrated weight
7. Strain Gauge Sensor
8. Standard calibrated weight
Principle
Electronic Balance uses strain gauge Sensor technology, through which the weight is converted into an electrical signal, and the result is displayed on the LCD screen after internal processing. It has auto calibration and zero tracking functions to ensure weighing accuracy.
Applications
Laboratory, industry
Standards
Accuracy class: II
Steps
1. Connect the power supply and ensure that the voltage is~ 220V +/- 10% 50/60Hz
2. Turn it on and warm up, and wait for the stable time to ≤ 5s.
3. External calibrated with standard calibrated weight
4. Place the item in the pan (size 170 * 170mm) for weighing
5. Perform peeling, counting or unit conversion functions as required
6. Connect external devices through RS232 interface (optional)
Notice
• Ensure that the working Ambient Temperature is within the range of 5~ 40 ℃ and humidity 50%~ 60% RH
• Externally calibrated before use to maintain accuracy
• Avoid overloading, Capacity does not exceed 5000g
• Regularly check the calibrated weight
• Keep the pan clean to avoid affecting the weighing results
