Overview

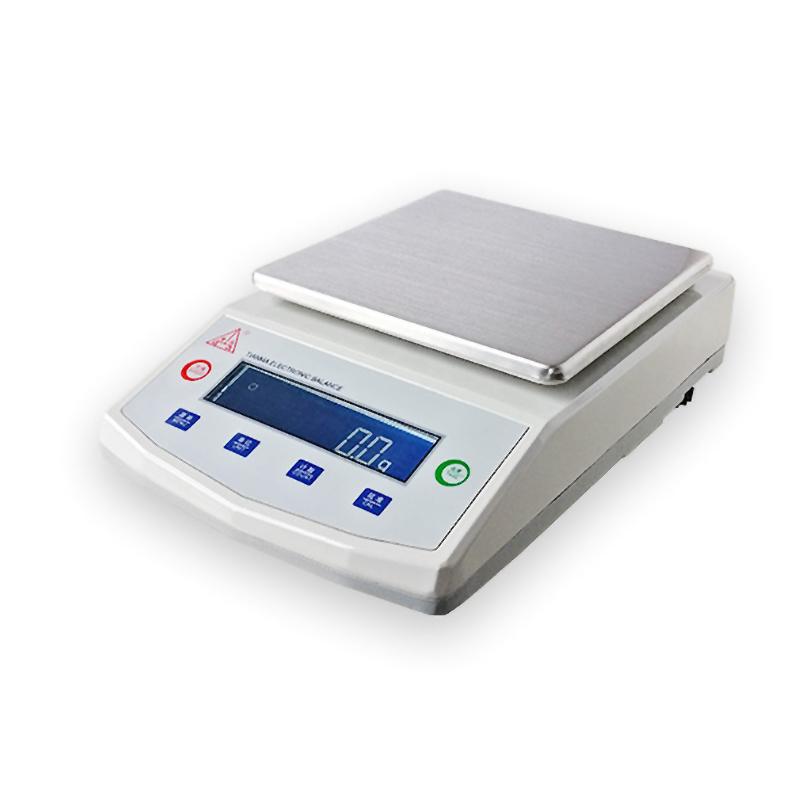

The Tianma TD50001 Electronic Balance is a High Accuracy weighing device with a weighing range of 5000g and a minimum weighing value of 0.1g, suitable for a variety of industrial and laboratory environments. The product uses a strain gauge Sensor to ensure stability and accuracy, and is equipped with an RS232 serial port for easy data transmission.
Features
1, with peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6, equipped with a calibrated weight
7. Strain Gauge Sensor
8, standard calibrated weight
Principle
Tianma TD50001 Electronic Balance is based on strain gauge Sensor technology, which accurately measures weight by detecting strain changes caused by weighing objects. Built-in auto calibration and zero tracking system ensure high accuracy in various conditions and real-time display of results using LCD screen.
Applications
Industrial weighing, laboratory analysis, quality control, counting applications
Standards
Accuracy class: III
Steps
1. Place the Balance on a stable plane and turn on the power supply
2, use calibrated weight for external calibrating
3. Place the object to be weighed on the pan
4. Read the weighing results through the large LCD screen
5. Optional use of peeling, counting or unit conversion functions
6. Connect external devices to transmit data through the RS232 interface
Notice
• Ensure that the working Ambient Temperature is within the range of 5~ 40 ℃ and humidity 50%~ 60% RH
• Avoid use on vibrating or unstable surfaces
• Regularly calibrate with standard calibrated weight to maintain accuracy
• Avoid liquids entering the equipment when cleaning
• Power frequency must be~ 220V +/- 10% 50/60Hz to prevent voltage instability from damaging equipment
