Tianma TD5000 Large Range Electronic Balance Counting Balance Gauge Sensor

Name: Tianma TD5000 Large Range Electronic Balance Counting Balance Gauge Sensor
Brand: TianMa
SKU: NB027841
Price: 165.0 USD
Availability: InStock

$ 165.00Ex works

Using strain Gauge Sensor, weighing range up to 5000g, repeatability error +/- 3g, with auto calibration and counting function, stable time does not exceed 5 seconds, equipped with standard calibrated weight.

Model

Get Quote

Category : Electronic Balance

Brand : TianMa

SKU : NB027841

Service :The delivery and service By NBCLab.Com

Overview

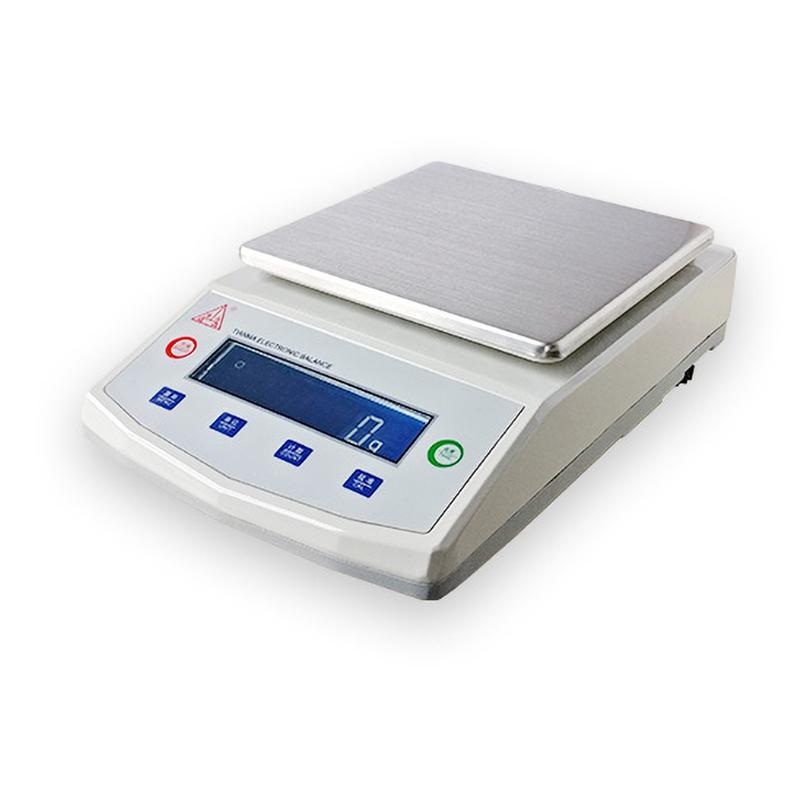

The Tianma TD5000 Electronic Balance is a High Accuracy weighing device with a Capacity Range of 5000g for industrial and laboratory environments. It uses strain gauge Sensor technology to ensure stability and accuracy, and is equipped with a large-screen LCD display and RS232 interface for easy data output and operation.

Features

1. With peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display and other functions 2. Counting function (point function), which can be easily used for counting Balance 3. International unit conversion function 4. Large LCD screen display 5. Equipped with RS232 serial port 6. Equipped with a calibrated weight 7. Strain Gauge Sensor 8. Standard calibrated weight

Principle

Tianma TD5000 Electronic Balance works based on strain gauge Sensor technology. When an object is placed on a pan, the Sensor detects weight changes and converts them into electrical signals, which are calibrated and displayed by an internal processing unit. Automatic tracking and calibrating functions ensure accuracy and stability during weighing.

Steps

1. Place the Balance on a stable plane and connect the power supply 2. Wait for stabilization after booting, perform auto calibration or use standard weight for external calibrating 3. Place the object to be weighed and read the display result 4. Use peeling function to remove container weight 5. Optional counting function for point operation 6. Connect external devices to output data through the RS232 interface

Notice

- Ensure Ambient Temperature 5~ 40 ℃, Humidity 50%~ 60% RH Avoid use on vibrating or unstable surfaces - Periodic external calibrating with standard calibrated weight - Keep the pan clean and avoid overloading - Power frequency must meet~ 220V +/- 10% 50/60Hz requirements

Capacity value
5000g
Calibrated weight
5000g
Calibrating method
external calibration
minimum reading
1
repeatability error
±3g
accuracy class
Ⅲ
steady time
≤ 5 seconds
Operating Conditions
5℃-40℃ 50%RH-60%RH
Pan Size
170*170mm
data interface
RS232
dimensions
290*185*80mm
Packaging Dimensions
325 * 225 * 180 (L * W * H) mm
gross weight
2.5kg
Power supply
~220V±10% 50/60Hz
