Overview

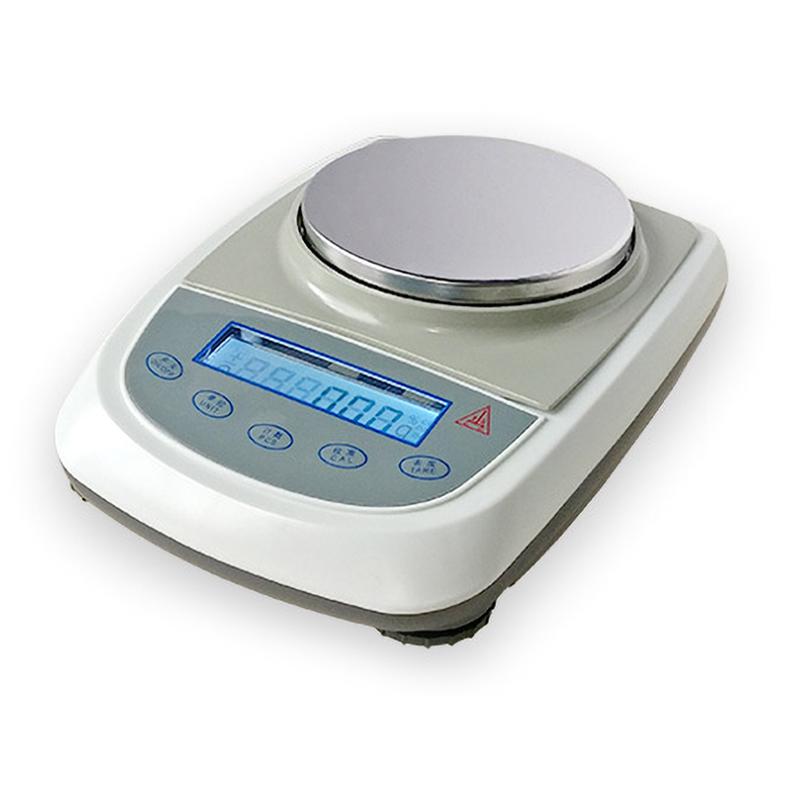

Tianma TD20002A Electronic Balance is a High Accuracy weighing device with a weighing range of 2000g, a minimum weighing value of 0.01g, and an accuracy class III. It adopts strain gauge Sensor, stable time ≤ 5s, Operating Conditions are 5~ 40 ℃ and 50%~ 60% RH, equipped with φ 125mm pan and RS232 data interface, supports~ 220V +/- 10% 50/60Hz Power frequency, and can be carried outside with dry batteries.
Features
1, with peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6, equipped with a calibrated weight
7. Strain Gauge Sensor
8, standard calibrated weight
9. LCD screen display, which can be operated with dry batteries and can be carried outside for use
Principle
Tianma TD20002A Electronic Balance adopts strain gauge Sensor technology, which converts the signal into an electrical signal by sensing the weight change of the weighing object. Built-in auto calibration and zero automatic tracking functions ensure weighing accuracy, and display the results in real time through a large LCD screen.
Applications
Laboratory, industrial weighing, counting applications, outdoor use
Standards
Accuracy class III
Steps
1. Place the Balance on a smooth surface, connect the power supply or install the dry battery
2. Wait for automatic clearing and stabilization after booting
3. Use calibrated weight for external calibrating (optional)
4. Place items to be weighed on the pan
5. Read the weight or count result displayed on the LCD screen
6. Data can be transmitted by connecting external devices through the RS232 interface
7. Shut down and clean the equipment after use
Notice
• Ensure that the working Ambient Temperature is within the range of 5~ 40 ℃ and humidity 50%~ 60% RH
• Check the calibrated weight before use
• Avoid operating on vibrating or unstable surfaces
• Regularly clean the pan to prevent errors
• Power frequency must meet~ 220V +/- 10% 50/60Hz requirements
• Pay attention to moisture-proof and shock-proof when carrying it out
