Overview

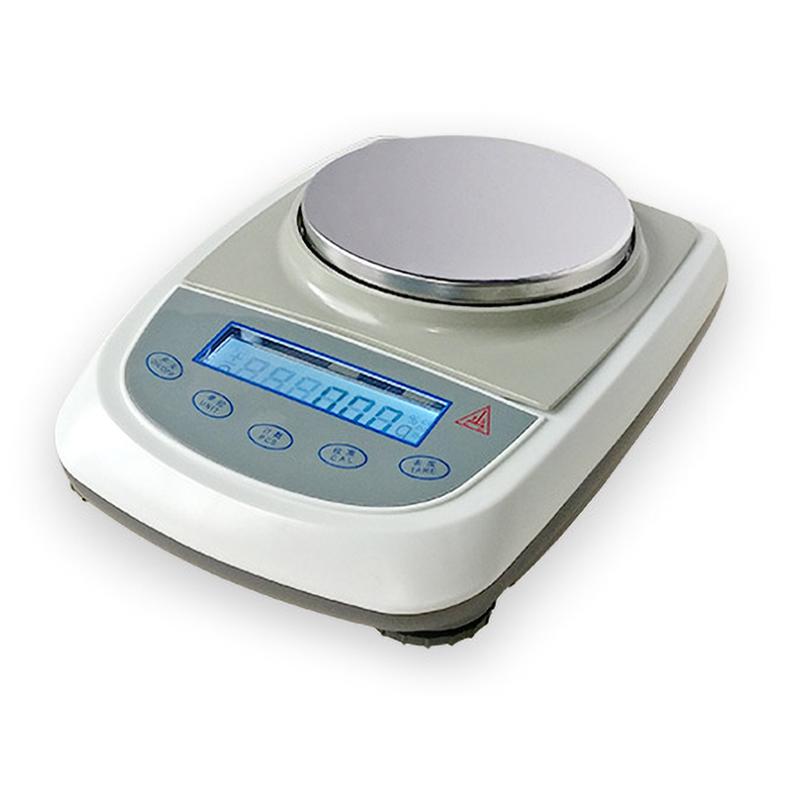

Tianma TD20001A Electronic Balance is a High Accuracy weighing device with a weighing range of 2000g, a minimum weighing value of 0.1g, and an accuracy class III. It adopts strain gauge Sensor technology, is equipped with a large-screen LCD display and RS232 data interface, supports external calibrating function, and comes standard with 1000g calibrating weight, which is suitable for a variety of weighing scenarios.
Features
1, with peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6, equipped with a calibrated weight
7. Strain Gauge Sensor
8, standard calibrated weight
9. LCD screen display, which can be operated with dry batteries and can be carried outside for use
Principle
Electronic Balance uses strain gauge Sensor technology, which converts the weight into an electrical signal through the Sensor, and displays the weighing result on the LCD screen after processing by the internal circuit. Its auto calibration, automatic clearing and zero automatic tracking functions ensure weighing accuracy, and the RS232 interface supports data transmission.
Applications
Laboratory, industrial weighing, counting applications, outdoor use
Standards
Accuracy class: III
Steps
1. Balance on a smooth surface
2. Connect the power supply or install the dry battery
3. Wait for stabilization after startup (stabilization time ≤ 5s)
4, use calibrated weight for external calibrating
5. Place items for weighing, and perform operations such as peeling and counting
6. Connect external devices to transmit data through the RS232 interface
Notice
• Working Ambient Temperature should be kept at 5~ 40 ℃, Humidity 50%~ 60% RH
• Ensure that the pan is clean and avoid overloading (maximum 2000g)
• calibrated with standard 1000g calibrated weight
• Avoid use in strong electromagnetic interference environments
• It is recommended to disconnect the power supply if it is not used for a long time
