Overview

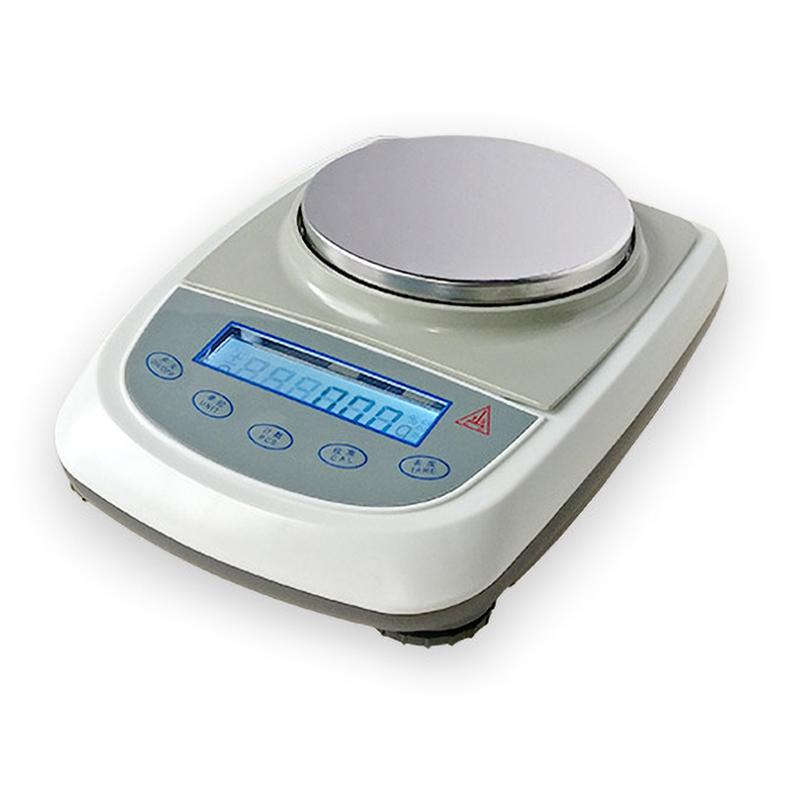

Tianma TD30002A Electronic Balance is a High Accuracy weighing device with a Capacity range of 3000g and a minimum weighing value of 0.01g, suitable for laboratories, industries and other environments. It adopts strain gauge Sensor, the stability time does not exceed 5 seconds, the operation temperature range is 5~ 40 ℃, the humidity is 50%~ 60% RH, equipped with RS232 serial port and calibrated weight, and supports external calibrating.
Features
1. With peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display and other functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6. Equipped with a calibrated weight
7. Strain Gauge Sensor
8. Standard calibrated weight
9. LCD screen display, can use dry battery operation, can be carried outside use
Principle
The Tianma TD30002A Electronic Balance is based on strain gauge Sensor technology, which accurately calculates mass by measuring strain changes caused by the weight of objects. The system automatically calibrates, clears, and tracks zero points to ensure accurate weighing, and displays the results in real time through the LCD screen.
Applications
Laboratory, industry, education, medical care, food, chemical industry
Standards
Accuracy class: III
Steps
1. Place the Balance on a smooth surface, connect the power supply or install a dry battery
2. Turn on the power switch and wait for the system self-test to complete.
3. External calibrated with standard calibrated weight
4. Place the item to be weighed on the pan and read the LCD display result
5. Perform peeling, counting, or unit conversion operations as required
6. Connect external devices to transmit data through the RS232 interface
Notice
• Ensure that the working Ambient Temperature is within the range of 5~ 40 ℃ and humidity of 50%~ 60% RH
• Avoid use on vibrating or unstable surfaces
• Regularly calibrate weight to maintain accuracy
• Do not use corrosive chemicals when cleaning
• Disconnect the power supply when not in use for a long time
