Overview

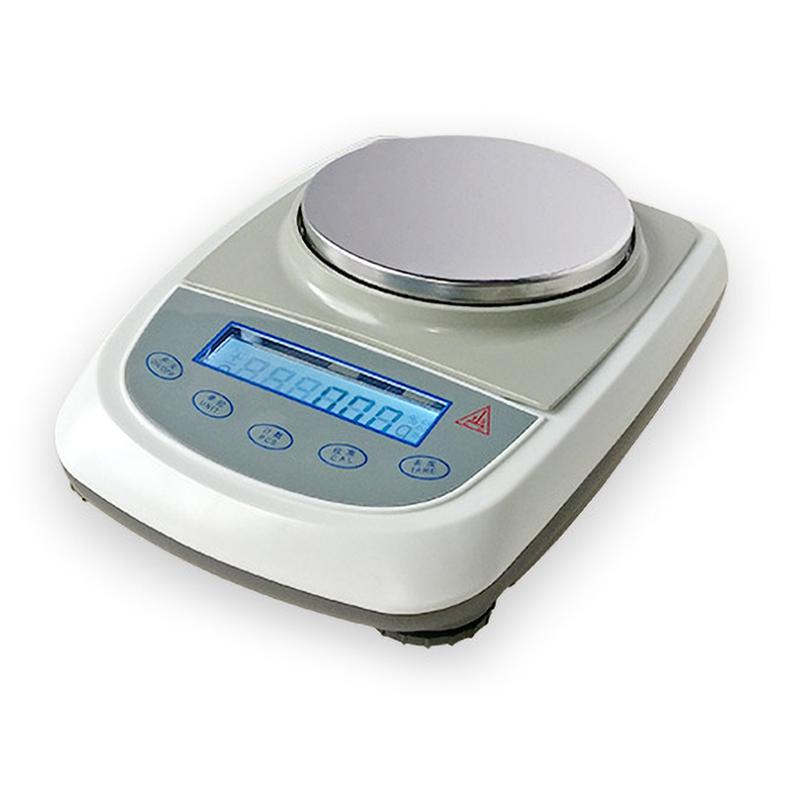

Tianma TD50002A Electronic Balance is a High Accuracy weighing device with a Capacity range of 3000g and a minimum weighing value of 0.01g, suitable for a variety of weighing scenarios. It adopts strain gauge Sensor, has fast stabilization time (≤ 5s) and LCD display, supports external calibrating, and can work stably in 5~ 40 ℃, 50%~ 60% RH environment.
Features
1. With peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display and other functions
2. Counting function (point function), which can be easily used for counting Balance
3. International unit conversion function
4. Large LCD screen display
5. Equipped with RS232 serial port
6. Equipped with a calibrated weight
7. Strain Gauge Sensor
8. Standard calibrated weight
9. LCD screen display, can use dry battery operation, can be carried outside use
Principle
Tianma TD50002A Electronic Balance is based on strain gauge Sensor technology, which measures weight by sensing the tiny deformation generated by the weighing object and converts it into electrical signal processing. Built-in auto calibration and zero tracking system ensure weighing accuracy, and is equipped with RS232 interface for data transmission.
Applications
Laboratories, industrial weighing, counting applications, educational institutions, outdoor use
Standards
Accuracy class: III
Steps
1. Place the Balance on a smooth surface, turn on the power supply (~ 220V +/- 10% 50/60Hz) or use a dry battery
2. Wait for stability after booting, and place the weighing object after automatic clearing
3. Use peeling function to remove container weight
4. For calibrating, use the standard 2000g calibrated weight for external calibrating
5. Connect external devices for data transmission through the RS232 interface
6. When using the counting function, weigh the weight of a single item before counting
Notice
• Ensure that the working Ambient Temperature is within the range of 5~ 40 ℃ and humidity of 50%~ 60% RH
• Check if Balance is placed horizontally before weighing
• Avoid overloading, Capacity does not exceed 3000g
• Regularly calibrate weight to maintain accuracy
• Avoid liquid entering the internal circuit when cleaning
• Pay attention to the power when using the dry battery and replace it in time
