Overview

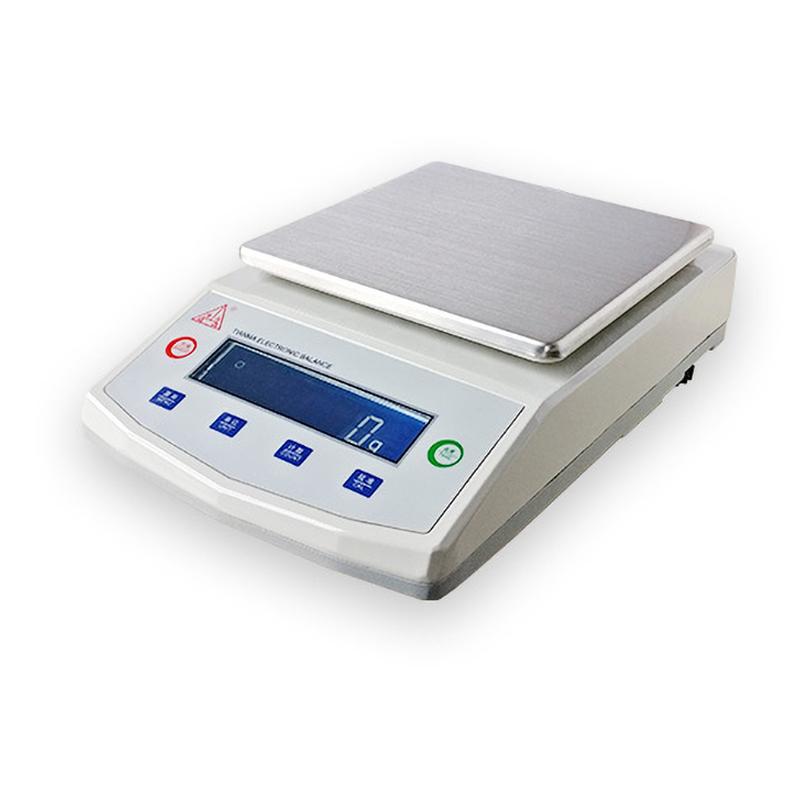

The Tianma TD10000 Electronic Balance is a High Accuracy Weighing Device with a Capacity Range of 10000g for industrial and laboratory environments. It features a strain gauge Sensor with fast settling time (≤ 5 seconds) and auto calibration to ensure accurate and reliable weighing.
Features
1. With peeling, weighing auto calibration, automatic clearing, zero automatic tracking and fault display and other functions.
2. Counting function (point function), which can be easily used for counting Balance.
3. International unit conversion function.
4. Large LCD screen display.
5. Equipped with RS232 serial port.
6. Strain Gauge Sensor.
Principle
Tianma TD10000 Electronic Balance is based on strain gauge Sensor technology. When an object is placed on a pan, the Sensor converts the weight into an electrical signal, which is calibrated and calculated by an internal processing unit for accurate weighing. Automatic tracking and calibrating functions ensure accuracy when the environment changes.
Applications
Industrial weighing, laboratory measurement, counting applications
Standards
Accuracy class: III
Steps
1. Place the Balance on a stable plane and connect the power supply.
2. Turn on the power and wait for the Balance self-test to complete.
3. Use external calibrated weight (5000g) to calibrate.
4. Place the item to be weighed on the pan and read the displayed value.
5. Use peel function to remove container weight.
6. Optional to use the counting function to count item points.
Notice
• Ensure that the working Ambient Temperature is within the range of 5~ 40 ℃ and humidity 50%~ 60% RH.
• Externally calibrated before use to ensure accuracy.
• Avoid overloading. Capacity should not exceed 10000g.
• Keep the pan clean to prevent affecting the measurement results.
• Power frequency must meet~ 220V +/- 10%, 50/60Hz requirements.
