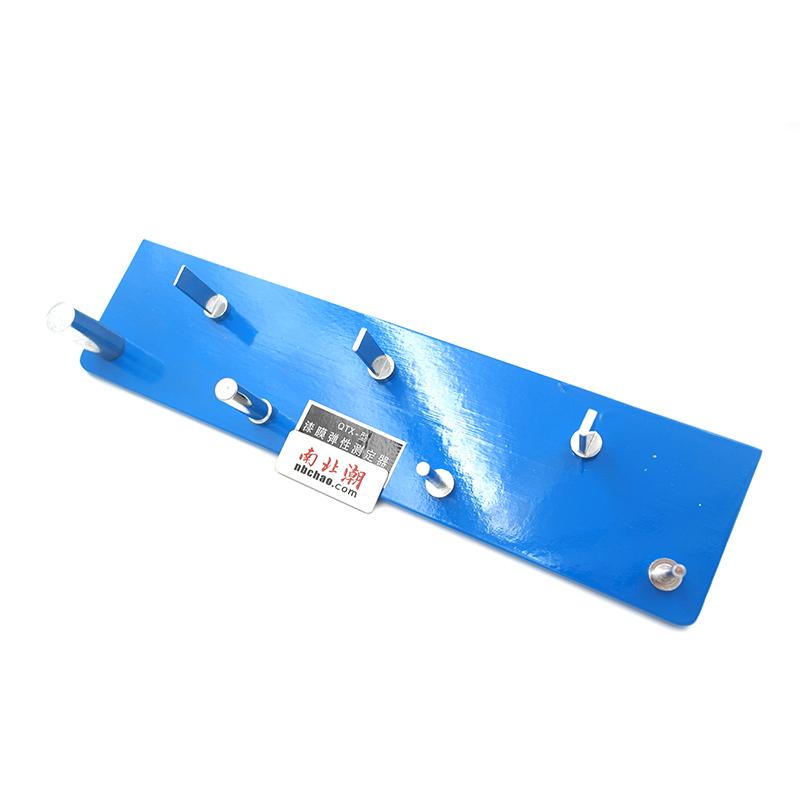

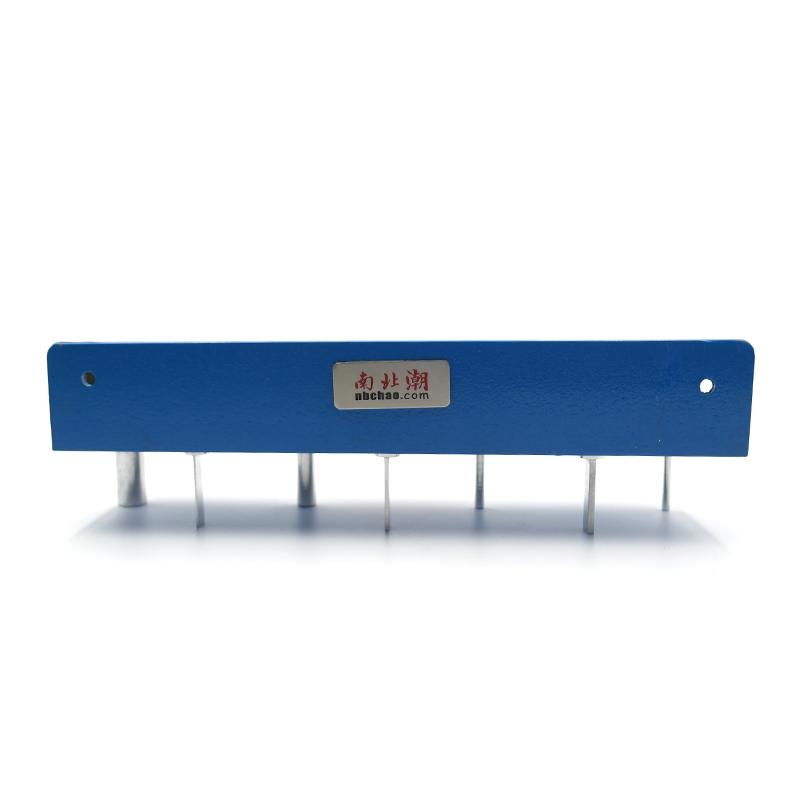

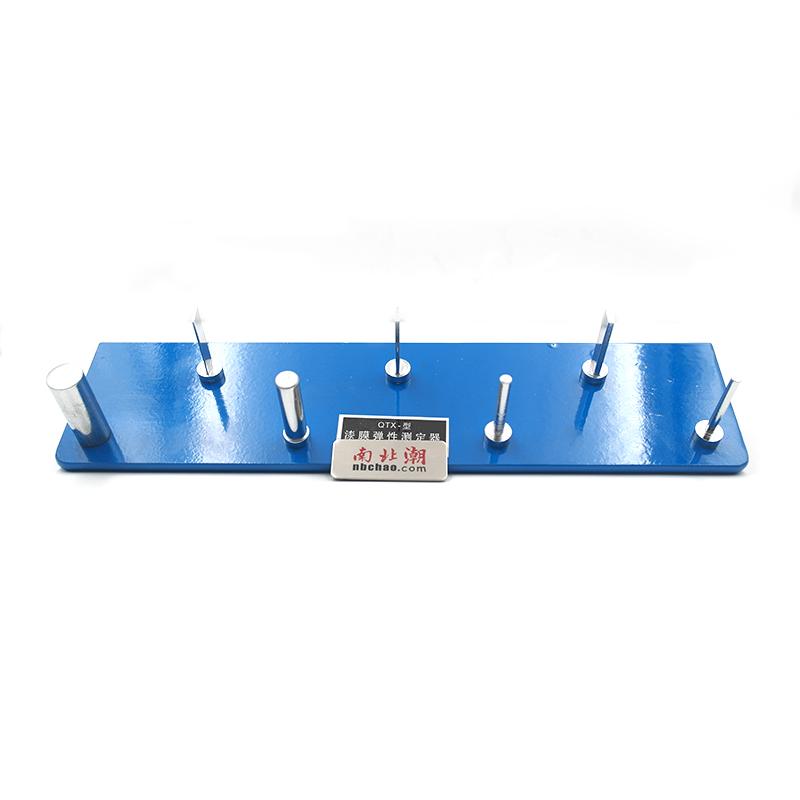

YONGLIDA QTX paint film resilience Tester, paint film Flexibility Tester 7-axis Rod conforms to GB/T1731

Name: YONGLIDA QTX paint film resilience Tester, paint film Flexibility Tester 7-axis Rod conforms to GB/T1731
Brand: YongLiDa
SKU: NB002786
Price: 120.0 USD
Availability: InStock

$ 120.00Ex works

Equipped with 7 different diaMeter shaft Rods, the length of the shaft Rod is 35mm, and the minimum radius of curvature is 0.5mm, which can accurately determine the film flexibility according to the standard requirements.

Model

Get Quote

Category : Flexibility Tester

Brand : YongLiDa

SKU : NB002786

Service :The delivery and service By NBCLab.Com

Overview

YONGLIDA QTX paint film Flexibility tester, also known as paint film resilience tester, is a measuring instrument for evaluating paint film flexibility, with 7 different diameter shafts on the surface, designed according to the national GB/T1731 "paint film flexibility determination method".

Features

1. Equipped with 7 different diameter shaft rods, complete specifications 2. The length of the shaft rod is 35mm, which meets the standard requirements 3. Design meets national standards

Principle

By bending the coated plate on shafts of different diameters, the flexibility is assessed according to whether the film is crazing or flaking.

Standards

GB/T1731

Steps

1. Prepare the test plate coated with paint film 2. Choose the right shaft rod 3. Bend the test plate on the shaft rod 4. Observe whether the paint film is crazing or flaking Step 5 Record test results

Notice

• Check whether the shaft rod is in good condition before use • Select the appropriate diameter shaft rod for testing • Bending operation should be smooth and uniform • Clean the instrument in time after the test Store in a drying environment

Shaft rod length
35mm
Shaft rod 1 diameter
Φ15mm
Shaft rod 2 diameter
Φ10mm
Shaft rod 3 diameter
Φ5mm
Shaft rod 4 diameter
Φ4mm
Shaft rod 5 Size
10 x 3mm
Shaft rod 5 Crankshaft radius
1.5mm
Shaft rod 6 Size
10 x 2mm
Shaft rod 6 Crankshaft radius
1mm
Shaft rod 7 Size
10 x 1mm
Shaft rod 7 Crankshaft radius
0.5mm
execution standard
GB/T1731

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
