Overview

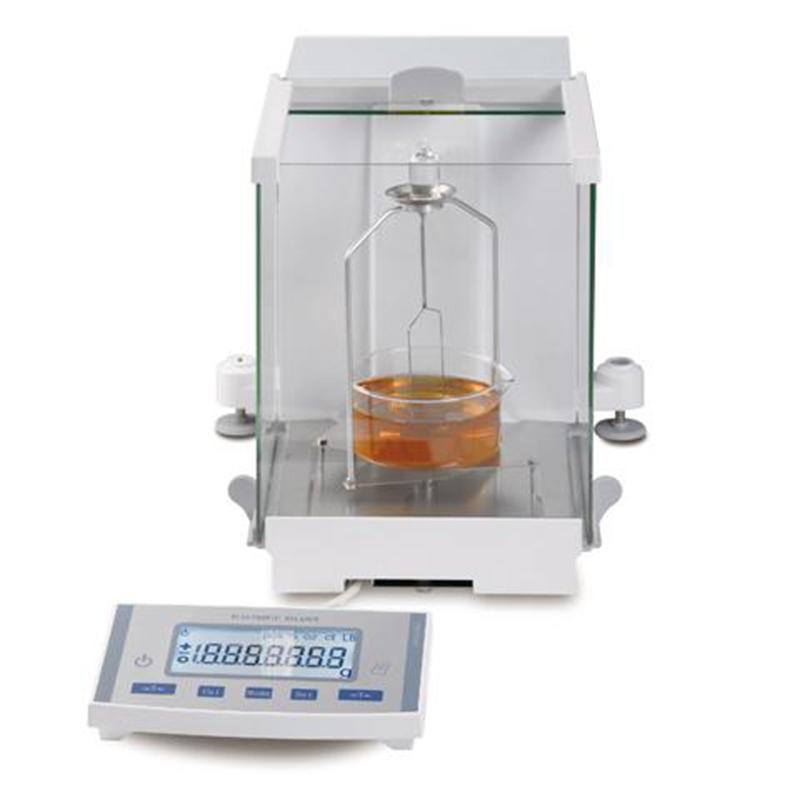

The Tianma MDTP1204 Density Balance is a professional Density testing instrument that can achieve accurate measurement of liquid and solid Density through Electronic Balance and Density testing device. The product has the function of direct Density reading, no cumbersome calculation is required, and it is equipped with standard weight volume calibration to test liquids of any Density.
Features
1. Density direct reading function, eliminating cumbersome calculation
2. Standard Heavy Hammer Volume Calibration, Support Any Density Liquid Test
3. Equipped with standard RS232 two-way communication port
4. Large LCD display
5. All Stainless Steel Density Bracket
6. Weighing range 120g, accuracy 0.0001g
7. Fast Response Time 2.5 seconds
Principle
The Density Balance adopts the Working Principle of combining Electronic Balance and Density test device, and directly measures the Density value of the sample through the standard weight volume calibration technology. The system automatically calculates and displays the Density result without manual calculation.
Applications
Liquid Density Testing, Solid Density Testing
Standards
RS232 communication standard
Steps
1. Connect Density Test Device
2. Carry out weight volume calibration
3. Place the sample to be tested
4. Read the Density value of the LCD display
5. Transfer data through RS232 port
Notice
• Standard weight volume calibration is required before use
• Ensure that the sample is placed smoothly
Be aware of the internal height limit of the Draft Shield
Periodically calibrate measurement accuracy
• Avoid overloading, the maximum weight is 120g
