Overview

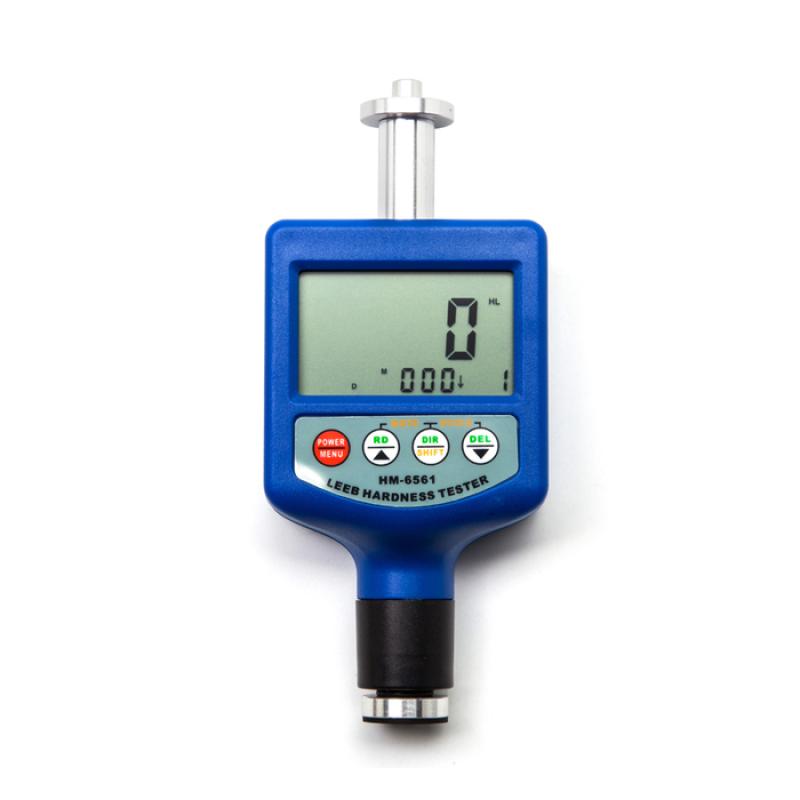

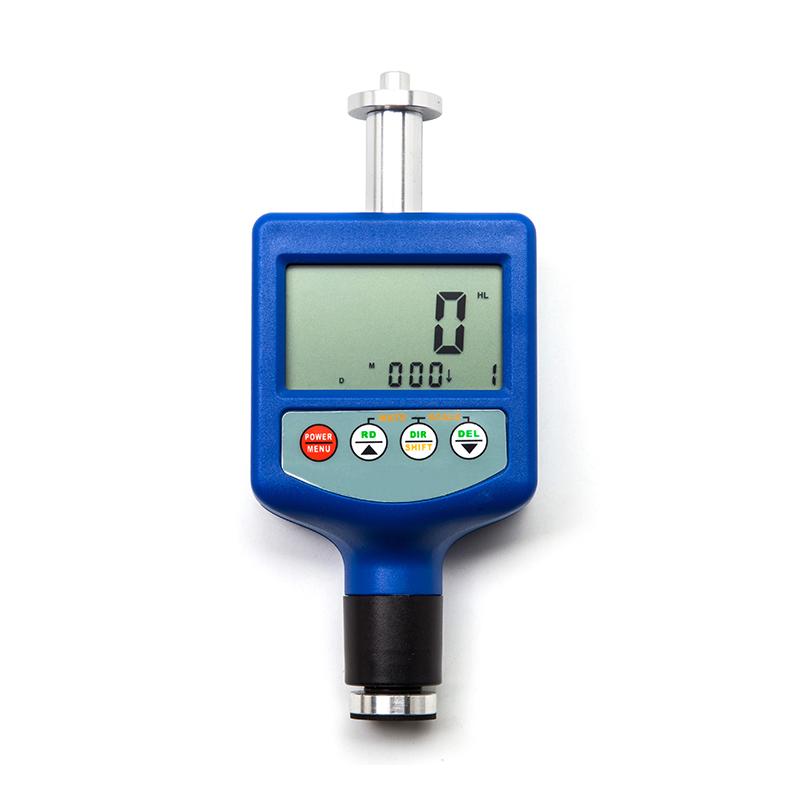

HBO LSY-N Leeb hardness tester is a Portable hardness testing equipment, small size, suitable for use in tight spaces. It can measure a variety of hardness standards, and supports data storage and communication functions, which is widely used in hardness testing of mechanical parts, molds, heavy workpieces and other fields.
Features
1. Small size, easy to use in small spaces
2. The test material and test direction can be selected through the keyboard
3. Can realize the conversion between six hardness (HL, HRC, HRB, HB, HV, HS)
4. Each test result can be displayed repeatedly, and gross errors can be deleted
5. Can store 50 sets of measurement values and test status, including material, test direction, hardness and other information
6. Allows users to calibrate for more accurate measurements
7. With RS232 interface, it is convenient for computer communication
8. Backlit display, easy to use in dark rays of light environment
9. Manual and automatic shutdown functions
10. Low battery voltage indication
11. Use "USB data cable output" and "RS-232 data cable output" to communicate with PC
12. Provide Bluetooth data output selection
Principle
The LSY-N Leeb hardness tester is tested with an Impact device (Type D), which calculates hardness values by measuring the speed at which the Impact body bounces off the surface of the material. The device supports a variety of hardness format conversions and allows users to calibrate for improved accuracy.
Applications
Installed machinery or long-term assembly parts, mold cavities, heavy workpieces, Pressure Vessels, turbo-generator sets and their equipment failure analysis, test space is very small workpieces, bearings and other parts, requiring formal original records of test results, material classification in metal material warehouses, rapid inspection of multiple measurement parts of large workpieces
Steps

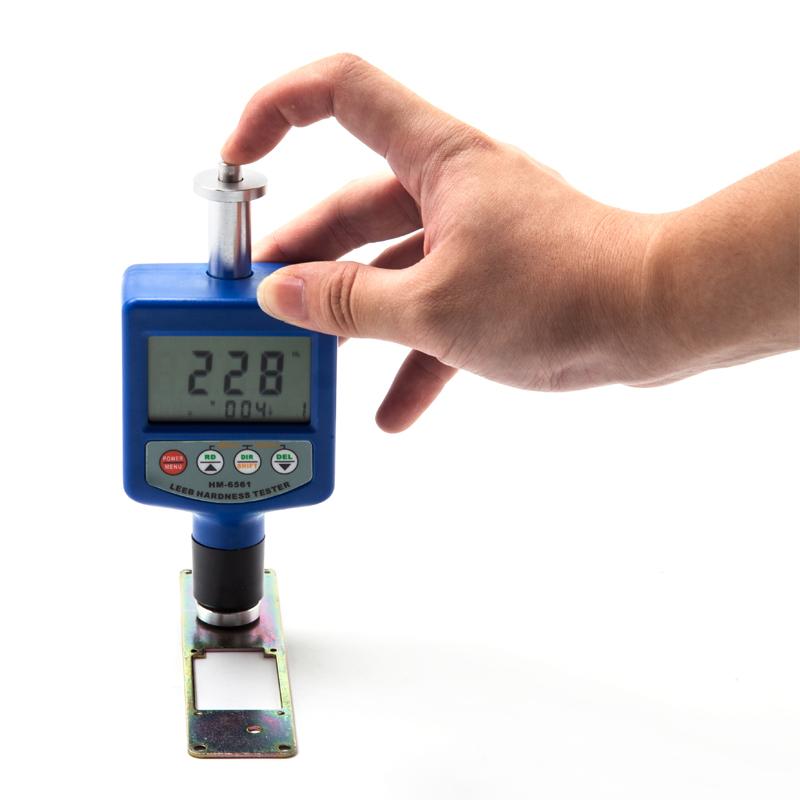

1. Select the test material and test direction through the keyboard
2. Impact devices for hardness measurement
3. Review and confirm test results
4. Can store or delete measurement data
5. Transmit data through USB, RS232 or Bluetooth communication with the computer
Notice
* operation temperature range -10~ 50 ℃, humidity ≤ 90%
* Storage temperature range is -30~ + 60 ℃
* Powered by 2 AA batteries, pay attention to the low battery voltage indication
* Impact device mass is 75g, need to pay attention to safety when using

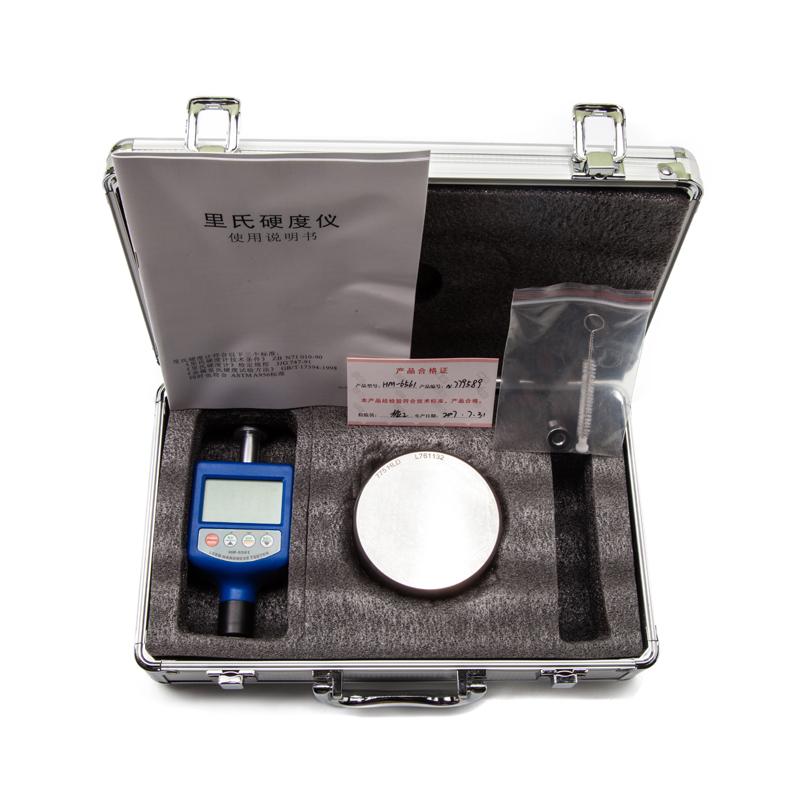

* Optional accessories include Impact Body, Support Ring Set, RS232 or USB cable and software, Bluetooth communication and software
