Overview

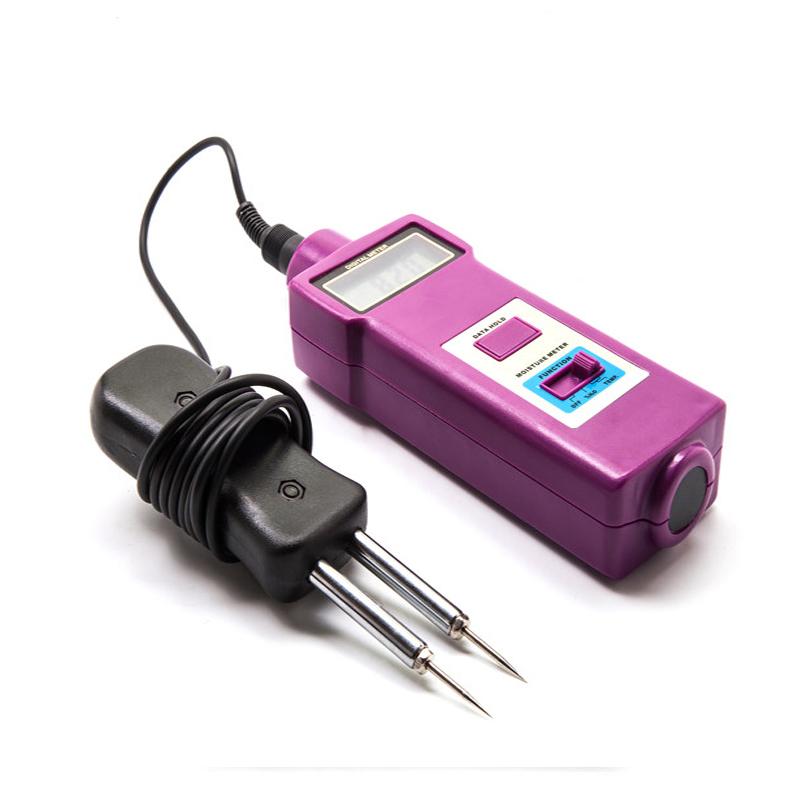

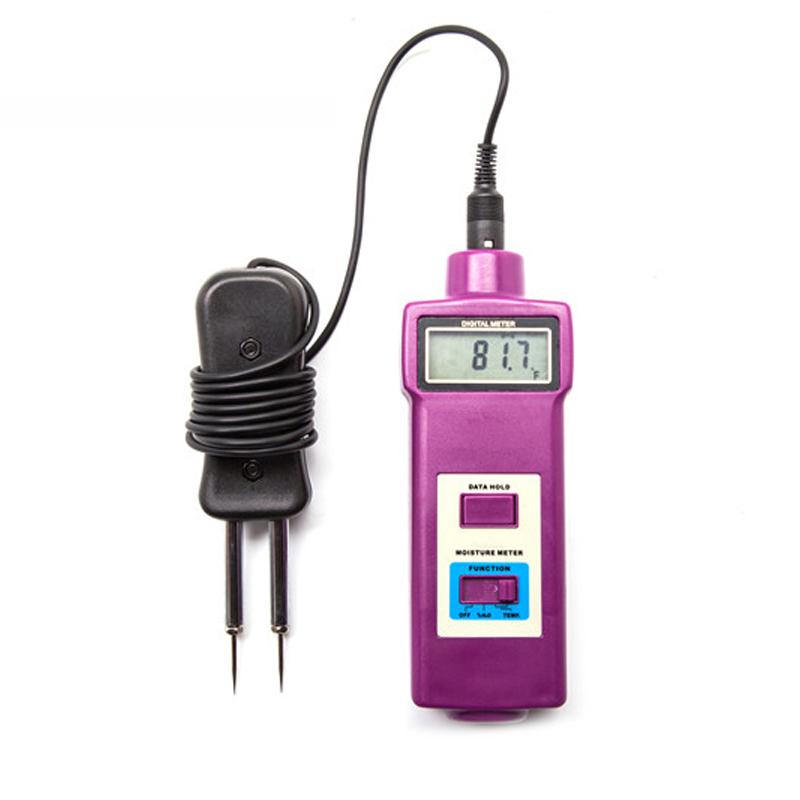

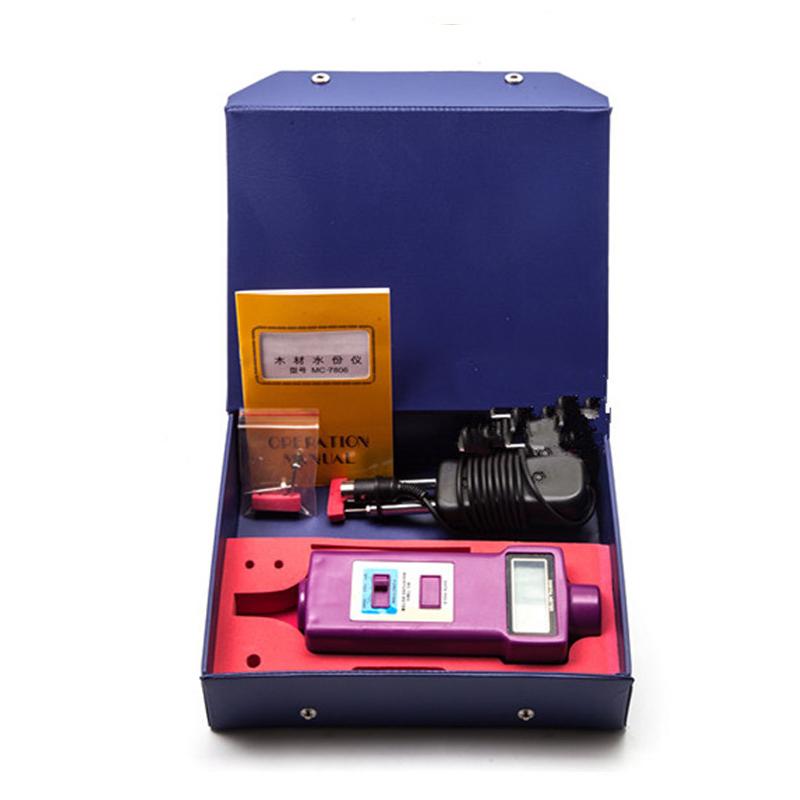

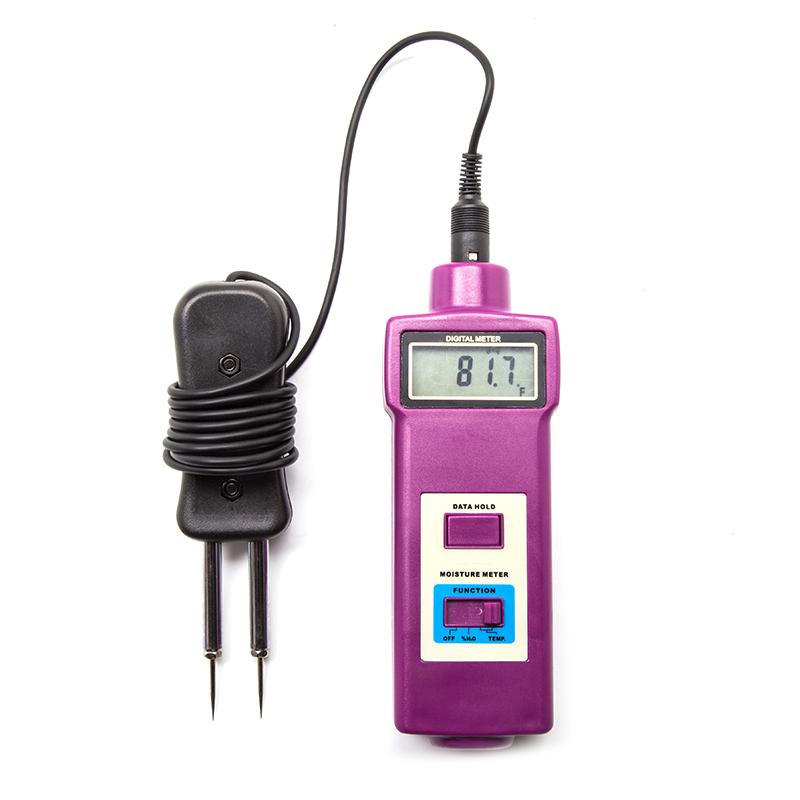

HBO SF-A wood moisture meter (needle type) is a professional measuring instrument using computer technology. It has the characteristics of wide measurement range and high accuracy. It is suitable for the determination of moisture content of nonconductive substances such as wood and wood fiber substances.
Features
1. Using computer technology, the measurement range is wide and the accuracy is high.
2. One machine is multi-purpose, which can not only measure moisture content, but also measure Ambient Temperature around the stylus.
3. Digital display, ignore the difference.
4. LCD adopts dynamic drive, which has low power consumption and greatly enhances the lifespan of the instrument.
5. With low voltage indication function.
6. The stylus and the instrument body are separated for easy operation.
7. The whole machine adopts durable preferred electronic components, the shell is made of light weight and hard ABS plastic, and the shape is beautiful and generous.
Principle
The instrument inserts the measured substance through a needle stylus, uses computer technology to measure the moisture content of nonconductive substances, and automatically calibrates and displays the results.
Applications
Determination of moisture content of wood and wood fibrous substances such as bamboo products, wood, cotton, paper and other nonconductive substances
Steps
1. Boot auto calibration.
2. Insert the stylus into the tested substance for measurement.
Notice
• Ambient Temperature: 0~ 50 ℃, humidity < 85%.
• Power supply with 4 AA batteries, pay attention to the low voltage prompt.
• The stylus is designed to be separated from the main body of the instrument, and attention should be paid to the correct connection during operation.
