Overview

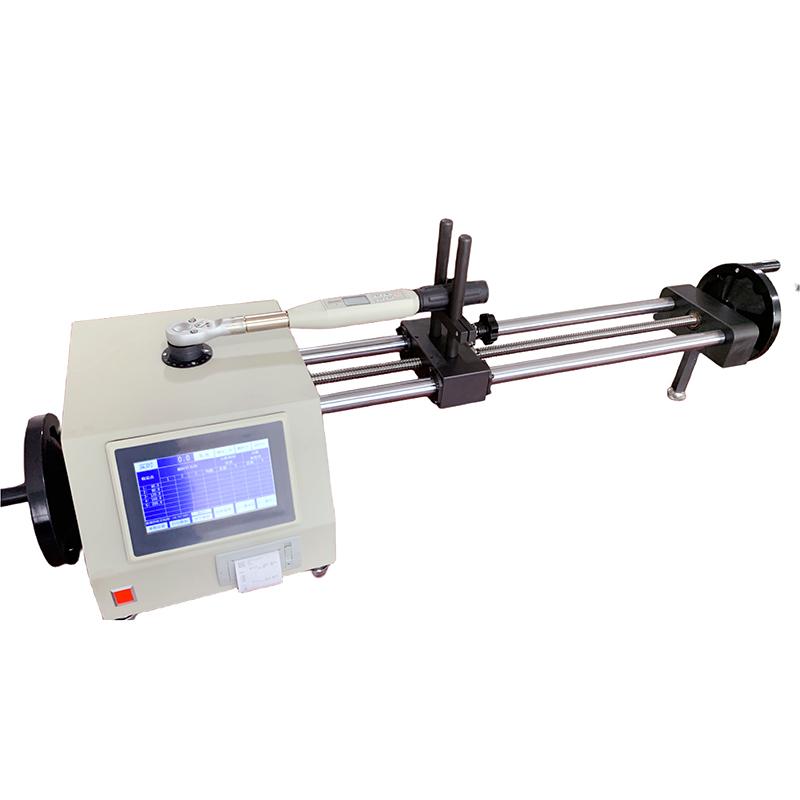

HNS-10 torque spanne verification instrument is a professional instrument produced by HBO for all kinds of torque spanne verification (calibrate). The instrument conforms to JJG 797-2013 torque spanne verification instrument verification procedure and JJG707-2014 torque spanne verification procedure standard test method. It adopts electronic Sensor technology and has the advantages of high accuracy, easy operation, high Sensitivity and reliable data.
Features
1. High Accuracy, High resolution, High stability
2. Large 7-inch color touch LCD screen, human-machine interaction interface is simple and easy to use
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. The device can do two-way (clockwise, counterclockwise) verification
5. Test direction display (counterclockwise +, clockwise -)
6. Provide JJG707-2014 torque board verification procedure standard test form, can directly print test data
7. 10 different test items can be customized, and different test points can be set respectively. After saving for the first time, it can be directly loaded and used
8. Can customize 8 check points, and can set the standard torque value of the corresponding point, the test interface real-time display test point torque indication and its indication relative error, indication repeability
9. Select the test location to set the gravitational acceleration value, and you can also customize the settings
10. Connect the host computer through the USB connection cable to read, store, analyze, print and other operations of real-time data
Principle
The instrument connects the square head of the Sensor and the torque wrench through the connecting shaft, applies torque through the torque loading hand wheel, and connects the shaft counterclockwise swirl/spin when swirl/spin the hand wheel clockwise. Electronic Sensor technology detects torque value, and displays test data through touch LCD screen for two-way verification.
Steps
1. Press the power switch to turn on the power, the indicator light is on, and the test system starts-up
2. Use the horizontal column to adjust the handle height of the torque wrench so that it is horizontal on the verification instrument
3. Use the arm adjustment wheel to adjust the length of the loading arm of the torque wrench
4. Set test parameters and checkpoints through Touchscreen
5. swirl/spin torque loading hand wheel applied torque test
6. Review the test data on the display
7. Test data can be printed directly through the printer
8. Press the power switch to turn off the system after the test is completed
Notice
• The working environment should be free of seismic sources and electromagnetic interference
• Power frequency AC 220V 50HZ
• Make sure the torque wrench is level on the verification device before use
Connect the power interface and data communication interface correctly
• Use plum screws to lock the limit block
• Pay attention to the test direction display (counterclockwise +, clockwise -)
• Save the test project settings for direct loading and use in the future
