Overview

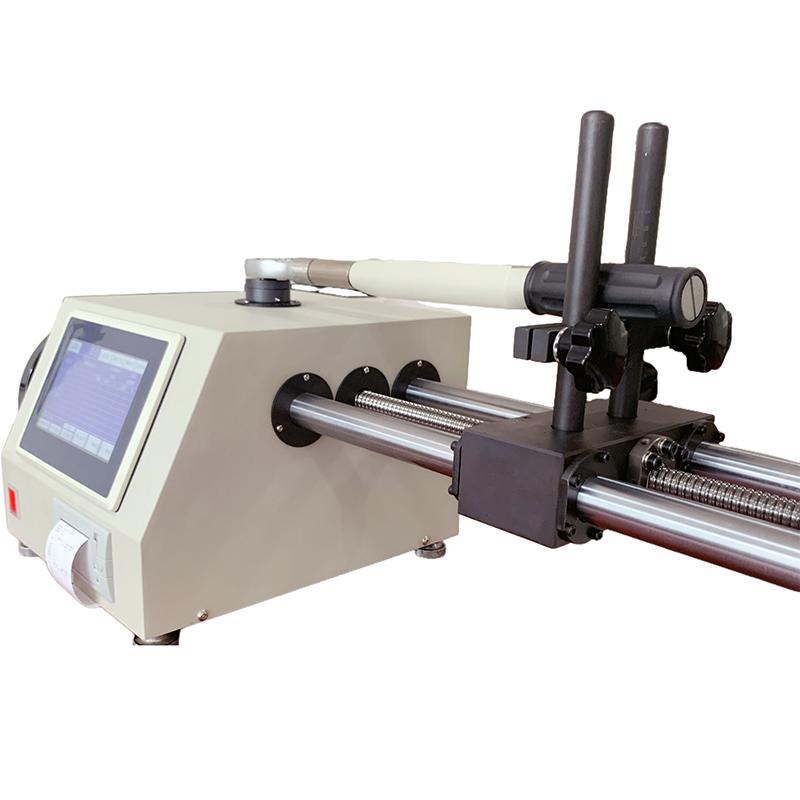

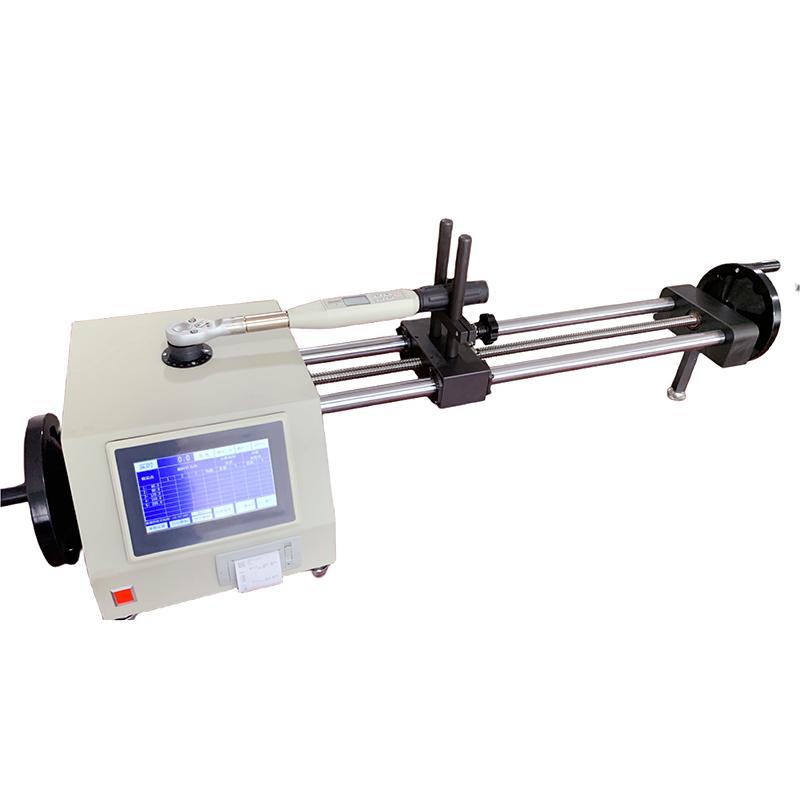

HNS-50 torque spanne verification instrument is a professional instrument produced by HBO for all kinds of torque spanne verification (calibrate). The instrument conforms to JJG 797-2013 torque spanne verification instrument verification procedure and JJG707-2014 torque spanne verification procedure standard test method. It adopts electronic Sensor technology and has the advantages of high accuracy, easy operation, high Sensitivity and reliable data.
Features
1. High Accuracy, High resolution, High stability
2. Large 7-inch color touch LCD screen, human-machine interaction interface is simple and easy to use
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. The device can do two-way (clockwise, counterclockwise) verification
5. Test direction display (counterclockwise +, clockwise -)
6. Provide JJG707-2014 torque spanne verification procedure standard test form, can directly print test data
7. 10 different test items can be customized, and different test points can be set respectively. After saving for the first time, it can be directly loaded and used
8. Can customize 8 check points, and can set the standard torque value of the corresponding point, the test interface real-time display test point torque indication and its indication relative error, indication repeability
9. You can choose the test location to set the gravitational acceleration value, and you can also customize the settings
10. Connect the host computer through a USB connection cable to read, store, analyze, and print real-time data
Principle
The instrument connects the Sensor to the square head of the torque wrench through a connecting shaft, and applies torque through the torque loading hand wheel. When the torque loading hand wheel swirls/spins clockwise, the connecting shaft swirls/spins counterclockwise, and the Sensor detects the torque value and displays the test data in real time on the monitor.
Applications
Torque wrench verification, torque wrench calibrating
Standards
JJG797-2013 torque spanne verification procedures, JJG707-2014 torque spanne verification procedures
Steps
1. Press the power switch to turn on the power, the indicator light is on, and the system starts-up.
2. Adjust the horizontal column to make the torque wrench handle level on the verification instrument

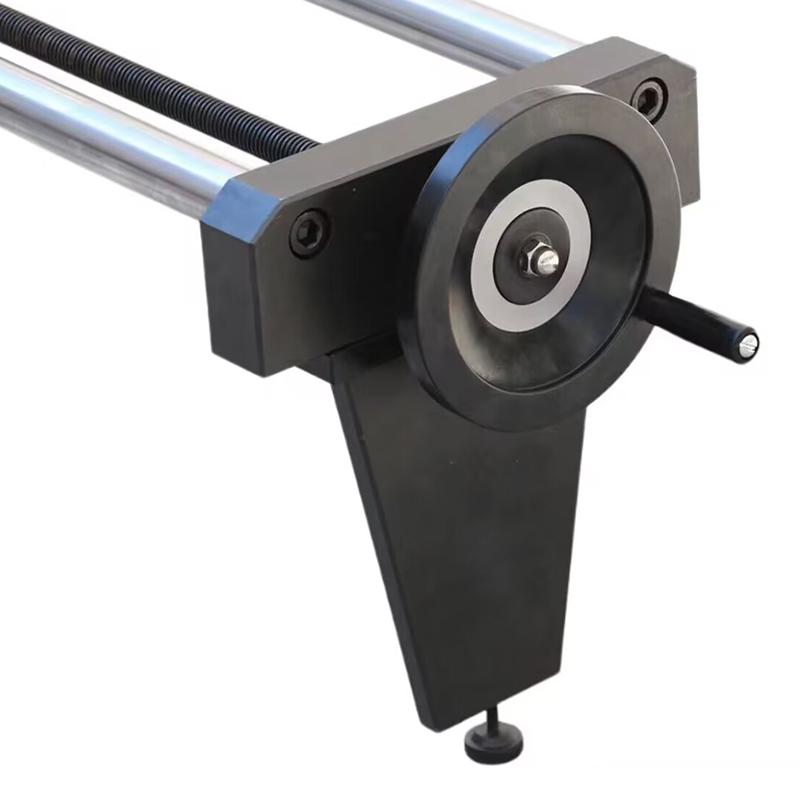

3. Use the arm adjustment wheel to adjust the length of the loading arm of the torque wrench
4. Set test parameters by touching the LCD screen
5. swirl/spin torque loading hand wheel applied torque
6. Review the test data on the monitor
7. Test data can be printed directly through the printer
8. Press the power switch to turn off the system after the test is completed
Notice
• The working environment should be free of seismic sources and electromagnetic interference
• Power frequency must be AC 220V 50HZ
• The length of the torque wrench should be within the range of 180-900mm
• Use plum screws to lock the limit block
A dedicated data cable is required to connect the computer via USB
• Equipment net weight 69kg, need to pay attention to safety when handling
