Overview

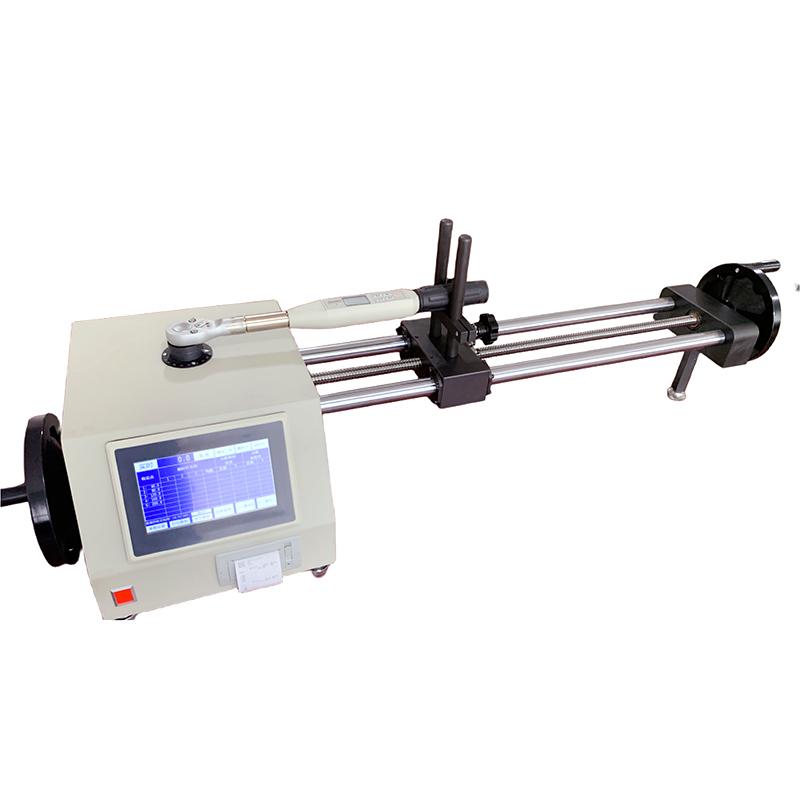

HNS-100 torque spanne verification instrument is a professional instrument produced by HBO for all kinds of torque spanne verification (calibrate). The instrument conforms to JJG 797-2013 torque spanne verification instrument verification procedure and JJG707-2014 torque spanne verification procedure standard test method. It adopts electronic Sensor technology and has the advantages of high accuracy, easy operation, high Sensitivity and reliable data.
Features
1. High Accuracy, High resolution, High stability
2. Large 7-inch color touch LCD screen, human-machine interaction interface is simple and easy to use
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. The device can do two-way (clockwise, counterclockwise) verification
5. Test direction display (counterclockwise +, clockwise -)
6. Provide JJG707-2014 torque spanne verification procedure standard test form, can directly print test data
7. You can customize 10 different test items and set different test points respectively. After saving for the first time, you can start the test directly after loading it in the future, no need to set it again
8. Can customize 8 check points, and can set the standard torque value of the corresponding point, the test interface can display the test point torque indication and its indication relative error, indication repeability, etc
9. Select the test location to set the gravitational acceleration value, and you can also customize the settings
10. Connect the host computer through the USB connection cable to read, store, analyze, print and other operations of real-time data
Principle
The instrument connects the Sensor to the square head of the torque wrench by connecting the shaft, uses the torque loading hand wheel to apply torque, and connects the shaft counterclockwise swirl/spin when swirl/spin the hand wheel clockwise. Through the electronic Sensor technology, the measurement torque value is displayed in real time on the display, and the data can be stored, analyzed and printed.
Steps
1. Press the power switch to turn on the power, the indicator light is on, and the test system starts-up
2. Adjust the horizontal column to make the torque wrench handle level on the verification instrument
3. Use the arm adjustment wheel to adjust the length of the loading arm of the torque wrench
4. Lock the limit block through the plum screw
5. Set test parameters and checkpoints on the Touchscreen
6. swirl/spin torque loading hand wheel applied torque test
7. View the test data displayed in real time
8. Test data can be printed directly through the printer
9. After the test is completed, press the power switch again to turn off the system
Notice
• The working environment should be free of seismic sources and electromagnetic interference
• Power frequency must be AC 220V 50HZ
• The length of the torque wrench should be within the range of 180-900mm
• Make sure the equipment is placed horizontally before use
• Pay attention to safety during operation and avoid overload use
• Regular equipment maintenance and calibrating
